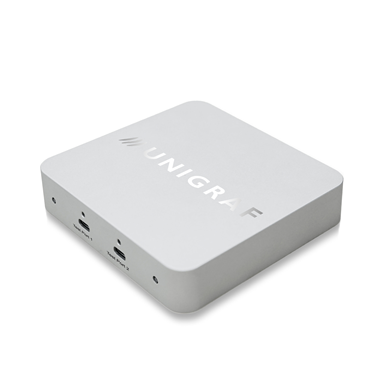

UTC-274 is a test automation tool for testing two USB-C products in production line and R&D environments. UTC-274 features a versatile and reliable way of testing connector pins of the USB-C interface. UTC-274 test coverage includes video, audio, DisplayPort Alternate Mode, Power Delivery 3.1, USB 2.0 & USB 3.2, USB4 mode check and EPR test functionalities. UTC-274 is delivered with an SDK with a set of automatic test script samples and support for Python scripting.
Test DP Alt Mode, Power Delivery and USB speed
2 upstream USB-C test ports for testing 2 DUTs or 2 ports on a DUT with a single test instrument
DP Reference Sink support up to 4K@60Hz and 8K@30Hz (4:2:0)
Internal Power Delivery Sink 15W and Source 65W capability
Support USB 2.0, USB 3.2 (5Gbps/10Gbps) enumeration.
Test USB-C connector pins soldering and assembly quality with a single cable insertion
High level API for easy integration
Automated tests for USB-C™
Support EPR function test up to 240W Source and Sink
USB4 mode check function
Video up to 4K@60Hz and 8K@30Hz (4:2:0)
DisplayPort Alternate Mode
Power Delivery 3.1
USB 2.0 & USB 3.2
USB4 mode check
EPR test functionalities
Test DP Alt Mode, Power Delivery
and USB speed
2 upstream USB-C test ports for
testing 2 DUTs or 2 ports on a DUT
with a single test instrument
DP Reference Sink support up to
4K@60Hz and 8K@30Hz (4:2:0)
Internal Power Delivery Sink 15W
and Source 65W capability
Support USB 2.0, USB 3.2
(5Gbps/10Gbps) enumeration.
Test USB-C connector pins soldering
and assembly quality with a single
cable insertion
High level API for easy integration
Automated tests for USB-C™
Support EPR function test up to
240W Source and Sink
USB4 mode check function
UTC-274’s Electrical Test can verify whole USB-C connector with a single cable insertion. Electrical Test verifies that all connector pins are properly soldered. With Electrical Test you can make sure that components in the DUT are functional and soldering and assembly of the components is done properly.
DFP (Downstream Facing Port) DUT can directly control UTC 274 through SDK, eliminating the need and cost of a control PC in the production line. UTC-274 SDK supports Windows, Linux, and MacOS operating systems.
UTC-274 supports DisplayPort 1.4 Reference Sink role which can test input video resolution, frame rate (Hz), pixel clock (MHz) and DP link training status to ensure that the DUT video output meets the expected specifications.
UTC-274 supports PD 3.1 protocol, capable of providing a maximum power output of 65W (20V/3.25A) when acting as a Power Source and capable of requesting a maximum 15W (5V/3A) load when acting as a Power Sink. UTC-274 also supports latest PD 3.1 EPR (Extended Power Range) functionality, allowing to test maximum 240W (48V/5A) with an EPU (External Power Unit) both as Source and Sink.
UTC-274 can take on the role of UFP (Upstream Facing Port) which has built-in USB 2.0 and USB 3.2 Gen 1 (5Gbps) storage capabilities and also support testing USB 3.2 Gen 2 (10Gbps) capability by connecting an external USB Storage Device. With the UTC-274 SDK, user could test USB data read and write speed (MB/s).
Test Connections USB Type-C x 2 (Dual Role Port)
USB Type-A x 1 pass thru (USB 3.2 Gen2)
External Power Source / Sink Connector
DP Over USB-C Resolution up to 4096x2160p60
Support up to HBR3 rate and 4 lanes
Maximum support 600MHz pixel clock
USB Over USB-C Built-in USB 2.0 (480 Mbps) storage
Built-in USB 3.2 Gen 1 (5Gbps) storage
Support USB 3.2 Gen 2 (10Gbps) with external USB device
USB Read & Write speed test (MB/s)
USB4 mode check function
Power Delivery Source 65W (20V/3.25A)
Sink 15W (5V/3A)
Support EPR (Extended Power Range) function up to 240W Source and Sink with external power unit (Sold separately)Electrical Test Verify functionality of USB-C interface signals (VBUS, CC1/2, SBU1/2, GND)
Cable flip (straight / flipped)
Operating System Windows 11, 10, Linux and MacOS
Software Python API with sample code
Easy-to-use GUI
Power Input +12 Vdc (AC/DC converter included)
Module Size 130x130x30mm
Warranty 12 months
