WIFI Protocol Analyzer BV1

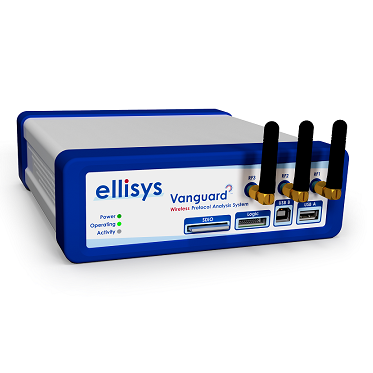

The most advanced, most comprehensive Bluetooth protocol analyzer ever made. Building on a legacy of innovation, the Bluetooth Vanguard All-In-One Protocol Analysis System delivers new advances designed to ease the increasingly complex tasks of Bluetooth developers. Vanguard provides synchronized capture and analysis of BR/EDR, Bluetooth Low Energy, Wi-Fi 802.11 a/b/g/n/ac (3x3), WPAN 802.15.4 (all 16 2.4 GHz channels), raw 2.4 GHz RF spectrum analysis, HCI (USB, UART, SPI), generic SPI/UART/I2C/SWD communications, WCI-2, logic signals, and Audio I2S.

Key Points:

  • All-in-One: concurrent capture of BR/EDR, Low Energy, Wi-Fi 11ac, WPAN 15.4, spectrum, HCI, logic, UART, SPI, I2C, SWD, Audio I2S, and WCI-2, all synchronized to nanoseconds precision
  • Widely Acclaimed Software: the Ellisys software application provides intuitive understandings of complex protocol and RF behaviors, and flexible configuration and control to give engineers the insights they need
  • Connection/Power Flexibility:  connect, control, and power the system locally or remotely via 1GbE (with Power-over-Ethernet/PoE) or USB 3.1 over Type-C™ (with USB Power Delivery)
  • Bluetooth Wideband Capture: easy and rock-solid capture of any traffic on all channels, including discovery / connection traffic and complex topologies
  • Bluetooth Capture Diversity: dual full concurrent Bluetooth capture path to increase capture quality with spatial diversity and smart aggregation algorithms
  • Wi-Fi 802.11 a/b/g/n/ac (3x3) Capture: extremely accurate and perfectly synchronized Wi-Fi capture accelerated by Ellisys hardware protocol engine for best-in-class performance
  • WPAN 802.15.4 Capture:  concurrent capture of all 16 WPAN 2.4 GHz channels for an unmatched coexistence analysis capability


Product Details

Innovative Tool for Demanding Users

Traffic analysis is one of the key day-to-day activities for Bluetooth engineers looking to rapidly test and debug their prototypes and products. Unfortunately, Bluetooth over-the-air sniffing has always been difficult to perfect. Legacy sniffing methods suffered from major technological drawbacks, making them unreliable and even unusable in several circumstances, making Bluetooth engineers' tasks much more difficult.
With its revolutionary whole-band Digital Radio, Ellisys lifts protocol capture and analysis to new heights, radically overcoming the drawbacks of those legacy approaches to Bluetooth sniffing. The Ellisys all-in-one whole-band sniffer robustly records any packet, at any time, from any neighboring piconet, with zero-configuration and without being intrusive.

Test and characterization of new Bluetooth silicon and end-products is a comprehensive process requiring a diverse set of engineering expertise and an array of specialized, analytical tools,” said Muthu Kumar, Wireless Firmware Engineer, Intel Corporation.  “The Ellisys Bluetooth Explorer plays an important role in this process by delivering a clear and complete understanding of the behavior of the ever-evolving Bluetooth technology from both hardware and software perspectives, all while providing exceptional ease of use.

The new advanced features provided by Ellisys provide our teams with tools that substantially increase visibility into the workings of Bluetooth technology,” said Miles Louis Smith, Senior R&D Engineer, Test Group, Nordic Semiconductor. “We use the sniffer to diagnose complex timing issues that other sniffers might not be able to capture. Due to the unique radio architecture of the Ellisys sniffer we can capture all packets regardless of the timing. The reconfigurable hardware is very flexible, and the Ellisys team provides great support to help us get products to market sooner.

Bluetooth debugging can be a painful experience when you combine together encryption, timing and protocols that aren’t always followed to spec,”said an Audio Acoustics Engineer at Human, Inc.”. “Not only does the Ellisys hardware allow us to understand issues through all these challenges but the software has built-in decryption techniques to work directly with our Bluetooth chip stack, so we spend less time configuring decryption and more time analyzing the traffic to find issues. The Ellisys solution is the solution we trust due to their industry leading features and world class support.

Industry’s First Whole-Band Capture

Bluetooth wireless technology was originally designed to be robustly impervious to interference on the much-used 2.4 GHz ISM band. It was also designed to be difficult to sniff, for security reasons. To meet these criteria, a Bluetooth radio uses up to 79 channels pseudo-randomly according to a hopping sequence defined at the piconet’s connection time.
A hopping sniffer tries to actively synchronize on a specific hopping sequence, and captures the packets only after a successful synchronization. This kind of sniffer has several inherent limitations, making it more difficult to use, less reliable, and usable only in a limited set of scenarios.
Ellisys has created the industry's first wideband sniffer in 2010 that overcomes all of these drawbacks and adds innovative and ground-breaking features, opening new horizons for Bluetooth debugging and interoperability testing. The whole-band capture approach is as simple as it is powerful: instead of listening to just a few channels, the sniffer captures all channels concurrently. The sniffer thus does not need to synchronize to a piconet; it will listen passively to all nearby Bluetooth piconets, scatternets, and other topologies without any required configuration.

Industry’s First Reconfigurable Bluetooth Digital Radio

With its innovative reconfigurable radio, the Ellisys sniffer can uniquely be updated by software to support changes in the specification, without any change to the hardware, and even without any interaction from the user. For instance, this flexibility allowed for the addition of next generation Bluetooth baseband features (such as enhanced AES security, Connectionless Broadcast, and more recent features like BLE Coded PHY and 2Mbps support) several months before these features were officially released in an updated specification. Additionally, the Ellisys BEX400 comes with free lifetime software updates, so all customers can benefit from these great additions free-of-charge!

Industry’s First All-in-One Sniffer

Capturing wireless traffic is a very important aspect of Bluetooth debugging, but other information is equally important for understanding the big picture. This is another aspect where the Ellisys sniffer excels. The Bluetooth Explorer sniffer supports one-click concurrent and tightly synchronized
capture of:Classic Bluetooth BR/EDR
Bluetooth Low Energy (BLE)
Wi-Fi 2x2 802.11 a/b/g/n [Enterprise]
2.4 GHz Spectrum [PRO]
USB HCI (1 port), UART HCI (2 ports) and SPI HCI (2 ports) [PRO]
Logic signals [PRO]
Audio I2S [PRO]
Wireless Coexistence Interface 2 (WCI-2) [PRO]
UART, SPI, I2C and SWD [PRO]

Protocols and Profiles

Bluetooth protocols and profiles are displayed in an easy-to-understand, high-level procedures-oriented chronological format in the Overview windows and fully detailed to the lowest bit/byte level in the linked Details view. Classic Bluetooth, Low Energy, and HCI traffic is displayed in designated Overviews real-time, as capture progresses.
The user is provided various controls to easily customize any Overview, including powerful filtering and coloring capabilities designed to quickly isolate specific protocols, profiles, or communications of interest. Traffic can be presented at the highest level of abstraction and the user can drill down to show all intermediate levels, down to the most basic elements, such as packet-only views.

Ellisys Protocol Overview

Message Sequence Charts

While the analyzer’s powerful protocols and profiles display is most efficient for engineers, Message Sequence Charts are usually preferred for creating reports or sharing technical information with specification experts or others not typically involved in using protocol analysis tools. The Ellisys solution is to create a Message Sequence Chart representation from a previously filtered and annotated protocols view. With this approach, engineers can include precisely the information they want, the way they want, and create a clear depiction showing exactly the information desired.

Ellisys Message Sequence Chart (MSC) Export

HCI Analysis [PRO]

Wireless traffic is of course one of the most useful elements of debugging information for Bluetooth engineers, but Host Controller Interface (HCI) traffic is an equally important complement of information for getting a clear and complete picture of the situation.
The HCI is an electrical interface defined by the Bluetooth specification for communications between the host controller and the radio. The Ellisys BEX400 supports capture of USB HCI, UART HCI and SPI HCI. Any and all HCI traffic is captured concurrently with the wireless traffic using the same precision clock for perfect synchronization and timing analysis, and is displayed in the highly-optimized Ellisys analysis software.
HCI capture is also a very convenient feature when working with devices that implement Secure Simple Pairing (SSP). The Ellisys analysis software automatically extracts any Link Key exchanged over HCI and uses it to decrypt the wireless traffic, all without any user interaction.

Ellisys Concurrent HCI Capture

Spectrum Analysis [PRO]

The 2.4 GHz ISM band used by Bluetooth is quite busy. Other users of this band include WiFi, LTE, ZigBee, ANT and a broad range of other proprietary and commercial technologies. All of these users interfere with each other and it is often necessary to have a better understanding of the wireless environment.
The spectrum display offered by the Ellisys sniffer is the perfect tool for coexistence debugging, wireless characterization, or simply for visualizing the RF environment. It captures the spectrum signal strength (RSSI) in all Bluetooth channels with a configurable precision of up to 1 microsecond, and displays this information in synchronization with the Bluetooth packets.

Logic Analysis [PRO]

The logic analysis feature enables capture of any logic signal, in synchronization with the wireless and HCI traffic. Any digital signal is supported, including general-purpose I/Os or dedicated pins such as TX/RX Active. Another of the many applications for this feature is keeping track of a device’s power consumption in various states, by using dedicated hardware such as comparators for determining whether key thresholds are exceeded.
These signals can then be visualized with 5-nanosecond precision and compared with the other captured streams in the powerful Instant Timing view of the Ellisys software.
Ellisys Logic Analysis

Audio Analysis

The Ellisys analysis software includes integrated Audio analysis. Any captured audio stream can be quickly and easily played back, even live, during capture. Finding the packet carrying a specific audio portion or seeing event and topology changes at specific audio positions becomes child’s play.
Audio captured over HCI or from an Audio I2S input [PRO] can be played back as well. This enables characterization of the complete audio chain, from the uncompressed audio provided to the source radio chip, to the audio transmitted wirelessly, and the decoded audio received by the receiver radio chip.Ellisys Audio Analysis

Automated and Long-Term Capture

There are various user applications that require the use of the analyzer in an automated fashion, often under control of user-defined software applications performing a variety of tasks. These applications may include long-term test environments, integration of the analyzer into a mobile platform, and other usage models.
Thanks to the ease-of-use and robustness provided by the Ellisys Digital Radio, the BEX400 is the perfect system for these tasks. The analyzer can be controlled with a simple yet powerful Remote Control API (Application Programming Interface) to programmatically start / stop / save captures, and extract specific captured information that can be used for various purposes, including go/no-go testing , all without any manual operation.
A unique segmentation feature works seamlessly with the API to allow for extremely long captures, segmenting captures into smaller more manageable slices while maintaining topology and contextual information from capture to capture.

Software Overview

Ellisys Bluetooth Analysis Software

See it in Action!

Ellisys is participating in and sponsoring Bluetooth UnPlugFest events, and as such, provides equipment and expertise at every event to ensure participants have the right tools at the right time. UPFs are also a good opportunity to see our revolutionary whole-band Bluetooth Explorer and our other industry-leading analyzer and tester products in action. Feel free to register and attend our one-to-one training session and our public Debug in Action training.
