EMV L1 PCD Test Solutions

KEOLABS provides standard-specific testing solutions that facilitate the rapid and complete validation of smart cards, readers and smart objects. Solutions are available to verify products from the analog and digital layers up to application layer for smart cards, card readers and a range of NFC related products (mobile phones, cards, readers, tags, key fobs, ...).

Features:

EMV L1 Contactless Card and Reader Test Solutions, which support,

Contactless Reader Emulator to test EMV L1 Contactless Card on items:

  • EMV L1 PICC Analog

  • EMV L1 PICC Digital

  • ISO 14443 PICC Analog

  • ISO 14443 PICC Digital

  • NFC Forum Analog (Listen Mode)

  • NFC Forum Digital

Contactless Card Emulator to test EMV L1 Contactless Reader on items:

  • EMV L1 PCD Analog

  • EMV L1 PCD Digital

  • ISO 14443 PCD Analog

  • ISO 14443 PCD Digital

  • NFC Forum Analog (Poll Mode)

  • NFC Forum Digital


Product Details

EMV L1 PICC Test Solutions

EMV L1 Contactless Card and Reader Test Solutions, which support,
Contactless Reader Emulator to test EMV L1 Contactless Card on items:
EMV L1 PICC Analog
EMV L1 PICC Digital
ISO 14443 PICC Analog
ISO 14443 PICC Digital
NFC Forum Analog (Listen Mode)
NFC Forum Digital
Contactless Card Emulator to test EMV L1 Contactless Reader on items:
EMV L1 PCD Analog
EMV L1 PCD Digital
ISO 14443 PCD Analog
ISO 14443 PCD Digital
NFC Forum Analog (Poll Mode)
NFC Forum Digital

About Keolabs

KEOLABS is a leading provider of tools and services for testing microcontroller and secure component implementation.
KEOLABS Smart Card Validation activity provides an end-to-end product and service offer for validating and certifying smart cards and related technologies in accordance with industry standards. KEOLABS participates in all major certification processes for the secure transaction and identity sectors. The company offers a comprehensive range of solutions for validation of all layers of contact and contactless secure components from the electrical to the digital and application layers.
KEOLABS service branch includes the ISO/IEC 17025 accredited Testing Laboratory offering testing services to all stakeholders in the secure component sector for smart cards, handsets, e-Passports, electronic driver's licenses and card readers on standard of ISO, EMV, NFC, ICAO, etc.

Products and Services

To prototype, validate and certify smart card, secure components, readers, applications that range from payment to   identity, KEOLABS has an end-to-end offer that includes:
Testing Platforms for exploring smart card technologies   and validating component and product designs. ProxiLAB, ContactLAB, ProxiSPY and NomadLAB signal   emulators and analyzers test contactless and contact smart card/reader   technologies including NFC, ISO14443, FeliCa, ISO15693, SWP and ISO7816.
Validation Solutions based on the SCRIPTIS software   environment and KEOLABS test platforms for complete, push-button testing in   strict accordance with industry functional and application standards, i.e.:   EMVCo, NFC Forum, ISO 14443, ISO 15693, ICAO, E-driving license.
Testing Laboratory offering test services for product   debugging and conformance testing in accordance with industry standards such   as ISO10373-6, NFC Forum, ICAO, EMVCo, EAC, ISO18013, CIPURSE, etc.


Testing Tools

Explore, Characterize & Validate Contactless & Contact Technologies

KEOLABS' testing and diagnostic platforms for smart cards facilitate exploration and implementation of current and future smart card communication technologies. These complete hardware and software platforms allow users to rapidly understand contact and 13.56 MHz contactless technologies, verify design choices in their prototypes and validate finished products with speed, confidence and ease.
Testing platforms support a range of contact and contactless card technologies, offering both analog and digital signal emulation for active testing and signal capture and protocol analysis (a.k.a. spy) capability interoperability troubleshooting.

Complete Hardware / Software Testing Packages

KEOLABS' Testing Platforms are complete hardware/software packages that allow users to rapidly take advantage of their tools signal emulation and signal analysis capabilities. The Real-time General Purpose Analyzer (RGPA) is the included Windows-based software environment for configuration, control and viewing captured data from the full range of KEOLABS smart card and NFC testing platforms.
Test platforms can also be driven using scripted controls or using a SCRIPTIS-based conformance certification solution.



Test
- all level

Test
- application

Spy
- full analysis

Spy
- byte level

Card

ISO 7816ContactLAB
ContactLABNomadLAB
SWPContactLAB
ContactLABNomadLAB
ISO 14443ProxiLAB
ProxiSPYNomadLAB
NFCProxiLAB
ProxiSPYNomadLAB
FelicaProxiLAB
ProxiSPYNomadLAB
ISO 15693ProxiLAB
ProxiSPY

Reader

ISO 7816ContactLABNomadLABContactLABNomadLAB
ISO 14443ProxiLABNomadLABProxiSPYNomadLAB
NFCProxiLAB
ProxiSPYNomadLAB
FelicaProxiLAB
ProxiSPYNomadLAB
ISO 15693ProxiLAB
ProxiSPY

NFC

NFCProxiLAB
ProxiSPYNomadLAB
SWPContactLAB
ContactLABNomadLAB
SPI (for eSE testing)ContactLAB
ContactLAB
I2C (for eSE testing)ContactLAB
ContactLAB

Test platforms to emulate reader to card signals and analyze card responses, spy platforms to capture and analyze signals between card and reader


KEOLABS provides test platforms and solutions for validating both contactless and contact smart card technologies used in a range of application areas including identity (epassport, drivers license), fare collection for public transportation, access control and payment to name a few. Supported testing functionalities on these platforms include:
§  Reader signal emulation at digital and analog/electrical levels
§  Non-intrusive signal capture and protocol analysis (a.k.a. Spy capability)
Platforms allow validation of a range of technologies including NFC, ISO14443, FeliCa (ISO18025), ISO15693 contactless (13.56 Mhz) protocols and SWP (HCI/HDLC), ISO7816, SPI and I2C contact protocols. Platform configuration and control can be done via a dedicated software interface (RGPA - Real Time Protocol Analyzer), or scripting (Python, JScript, ...) which allows users to define and execute sequences of signals in specific, automated scenarios.

Validation Solutions

KEOLABS provides standard-specific testing solutions that facilitate the rapid and complete validation of smart cards, readers and smart objects. Solutions are available to verify products from the analog and digital layers up to application layer for smart cards, card readers and a range of NFC related products (mobile phones, cards, readers, tags, key fobs, ...).

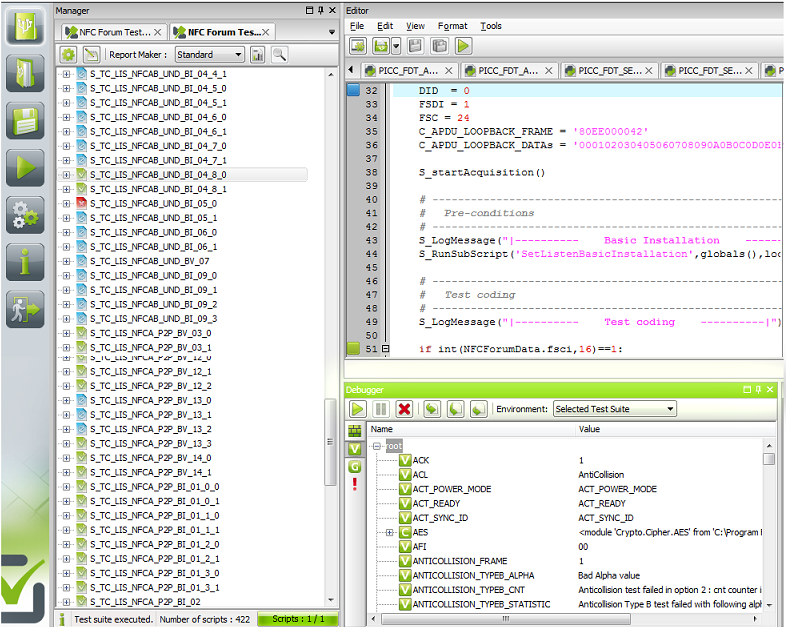

The test suites are implemented in KEOLABS' SCRIPTIS software environment and are based on KEOLABS' test platforms and accessories to ensure mastery of the complete test solution and ease-of-use in installation and operation.
KEOLABS' solutions are used and validated in our Testing Laboratory where they must meet the constraints of standards conformance and reliability.

Analog/digital validation solutions

KEOLABS provides complete solutions including analog test bench and productivity accessories to facilitate your in-house validation contactless smart cards and readers at the analog and digital levels for a variety of industry standards including:
§  EMVCo standard for cards, mobiles and readers in payment applications
§  ICAO standard for epassports and readers in identity applications
§  CEN TS 16794-2 standard for contactless fare media and readers in transportation applications
§  ISO10373-6 for smart cards and readers
§  FeliCa industry standard

NFC validation solutions

KEOLABS solutions validate the analog and the digital layers of NFC mobile phones, cards, readers and other related objects. Available solutions cover standards that include:
§  NFC Forum standard for analog & digital test in active, passive and peer-to-peer modes for phones, cards, readers and related objects
§  ETSI TS 102 694-2/695-2 for HDLC, HCI validation in UICC
§  ETSI TS 102 694-1/695-1 for HDLC, HCI validation in Contactless Front End

Application validation solutions

KEOLABS provides complete test solutions supporting in-house validation of smart cards and readers in accordance with industry standards for specific application types including:
§  Identity applications
§  ICAO standards for eMRTD and inspection systems
§  ISO18013 (part 4) standard for eDrivers license
§  IAS ECC standard for EU identity card
§  Payment applications
§  EMVCo standard for cards, mobiles and readers
§  Ticketing and Fare Collection
§  CIPURSE standard for smart cards, tags, NFC phones, secure components
Ø  EMVCo Conformance Testing Solutions
Ø  NFC Forum Conformance Solutions
Ø  ISO/IEC 14443 Conformance Solutions
Ø  ISO/IEC 18013 Driving License Conformance Solutions
Ø  eMRTD Conformance Solutions (ICAO)
Ø  CEN/TS 16794 Conformance Solutions
Ø  CIPURSE™ Conformance Solutions

For more information, please contact us.
