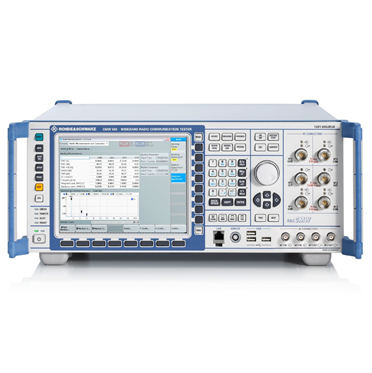

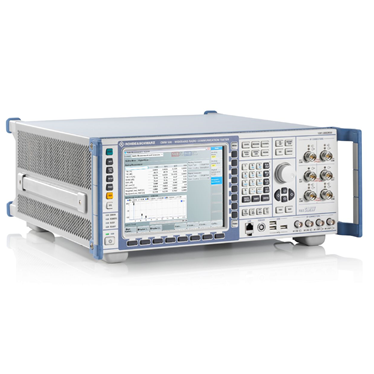

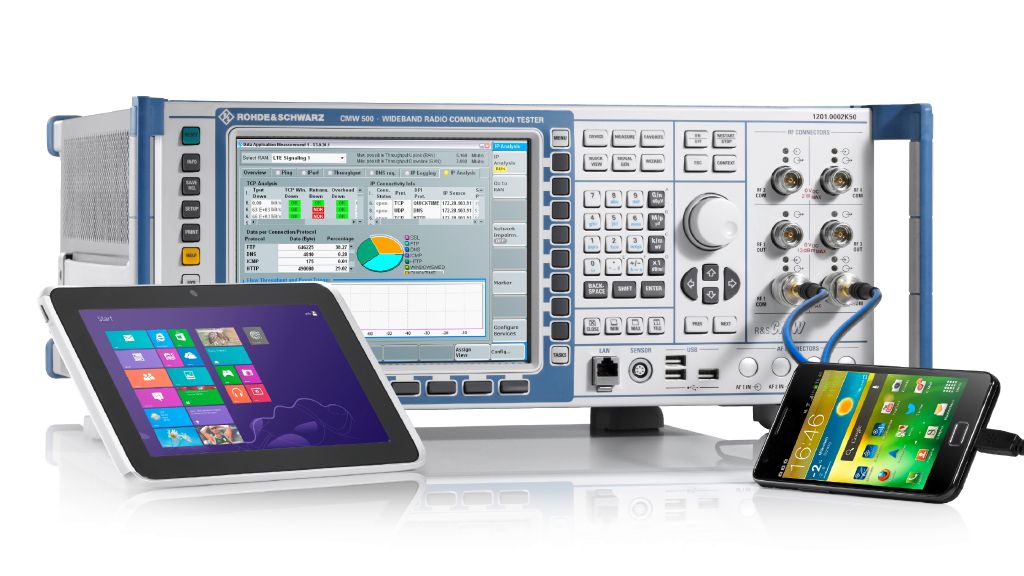

The CMW500 wideband radio communication tester is the universal test platform for RF integration and protocol development. It is available as the CMW500 callbox and the CMW500 protocol tester. The CMW500 includes a fully integrated end-to-end data solution that permits comprehensive IP throughput and quality measurements. Thanks to the internal fading simulator, it is easy to perform tests under realistic propagation conditions. The CMW500 can be used in all phases – from product development and production to service. It is the solution with the widest range of supported technologies.
Multi-RAT signaling: LTE, NB-IoT, NB-NTN, WCDMA, GSM, WLAN, Bluetooth
LTE-Advanced: 8DL CC up to 4x4/8x2 MIMO fading, 2 UL CA
WLAN 11 a/b/g/n/ac/ax SISO and MIMO signaling test
Internal server for application testing
The CMW500 wideband radio communication tester is the universal test platform for RF integration and protocol development. It is available as the CMW500 callbox and the CMW500 protocol tester. The CMW500 includes a fully integrated end-to-end data solution that permits comprehensive IP throughput and quality measurements. Thanks to the internal fading simulator, it is easy to perform tests under realistic propagation conditions. The CMW500 can be used in all phases – from product development and production to service. It is the solution with the widest range of supported technologies.
• Multi-RAT signaling: LTE, NB-IoT, NB-NTN, WCDMA, GSM, WLAN, Bluetooth
• LTE-Advanced: 8DL CC up to 4x4/8x2 MIMO fading, 2 UL CA
• WLAN 11 a/b/g/n/ac/ax SISO and MIMO signaling test
• Internal server for application testing

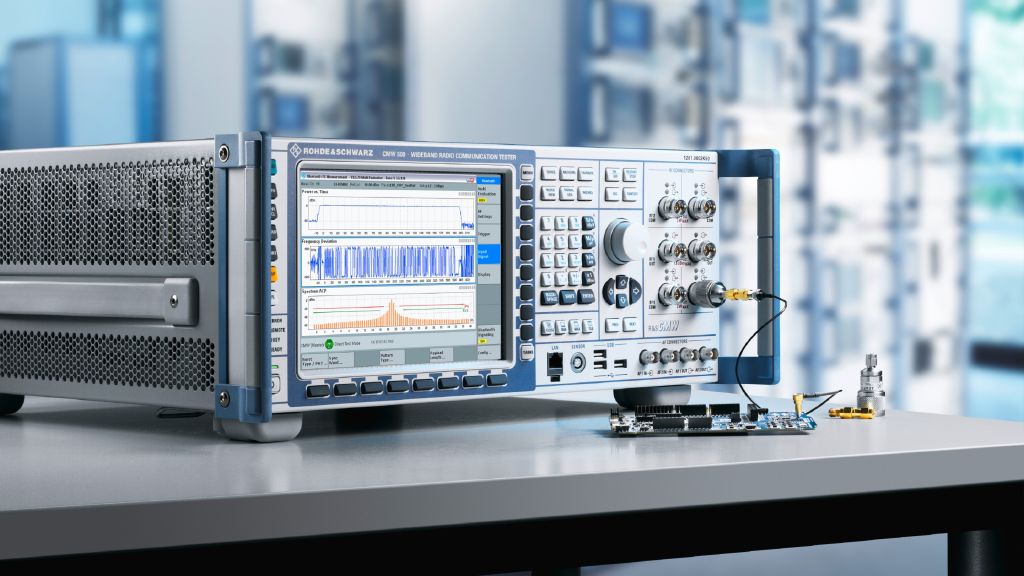

Wideband radio communication tester CMW500 Support Network emulation
RF testing under realistic conditions
When developing wireless devices communications interfaces need to be tested under realistic network conditions. The CMW emulates the base station for all major cellular technologies from LTE to GSM and in addition wireless connectivity like WLAN and Bluetooth.

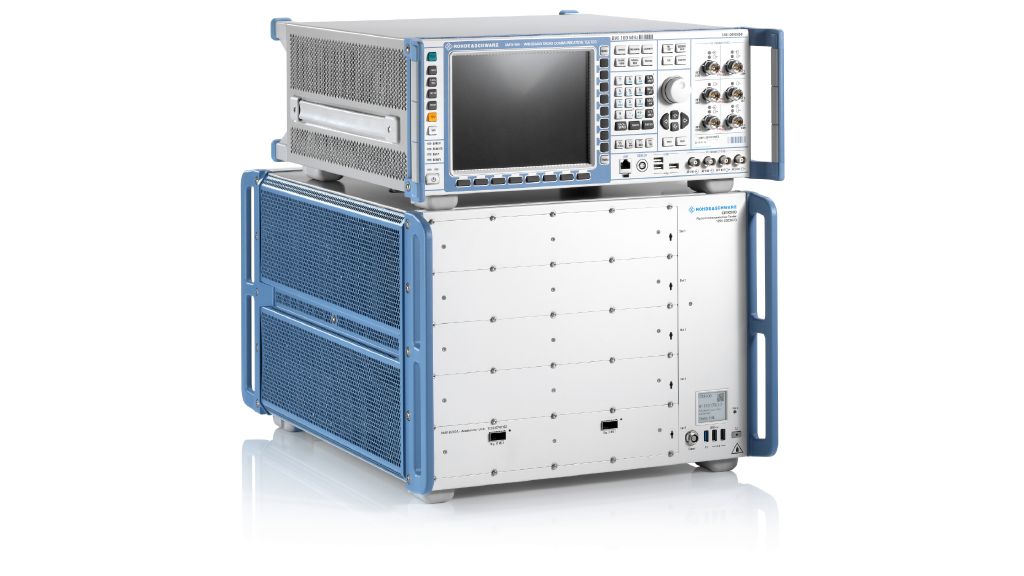

Wideband radio communication tester CMW500 Support 5G development
5G NR sub 6GHz network emulation
Fifth generation (5G) mobile communications will support mixed operation with LTE in non-standalone (NSA) mode, which will predominate in the first few years. Together with CMW500 radio communication tester, the tried-and-tested CMW500 supports 5G NSA test scenarios.
Wideband radio communication tester CMW500 Support Wireless connectivity
Comprehensive network emulation
Bluetooth and WLAN are indispensable in the modern world of communications. Modern smartphones transmit most of their data with these two technologies for an indefinite time. The CMW500 supports versatile testing for Bluetooth Classic and Low Energy, including all defined Bluetooth SIG RF signaling tests. The CMW500 supports WLAN signaling testing form IEEE 802.11 a/b/g/n up to 11 ac and 11ax.

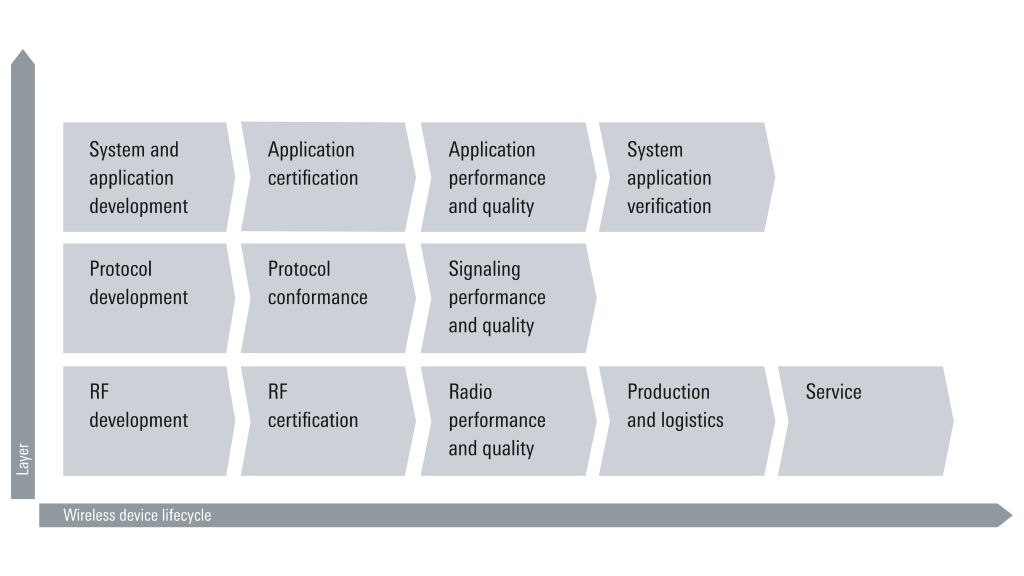

Wideband radio communication tester CMW500 Support All in one
One tester for all layers and all phases of the product lifecycle
From RF to protocol to IP application - all layers are covered in a single instrument. The modular CMW platform covers all test requirements from development to certification and network optimization to production and service.

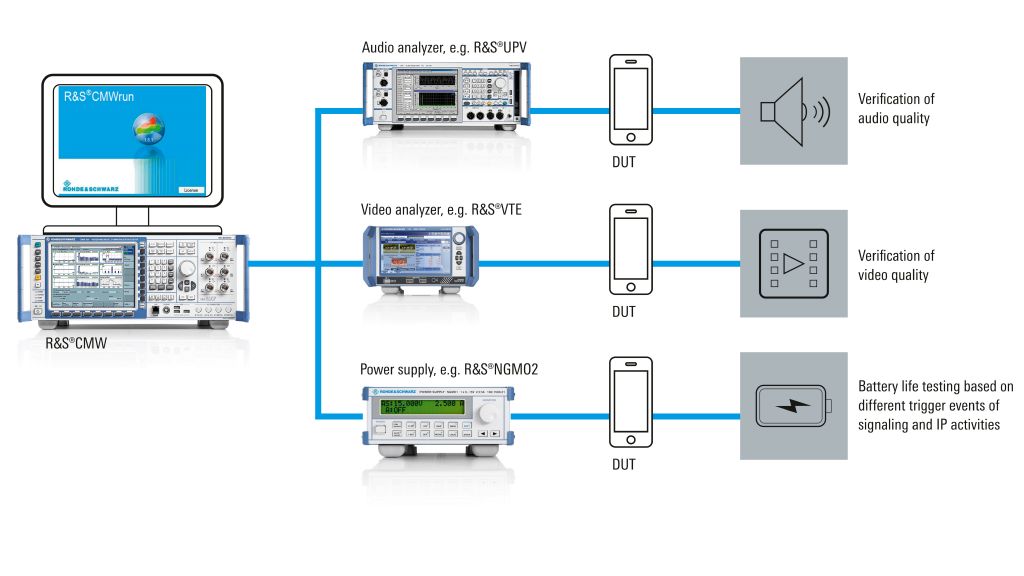

Wideband radio communication tester CMW500 Support User experience testing
Test sequences by remote control
The CMW test platform can perform, document and evaluate complex user experience tests under simulated, yet realistic conditions. An CMW tester combined with the R&S®CMWrun automation tool provides an enormous test bandwidth that is unmatched on the market.
Wideband radio communication tester CMW500 Support Standard-compliant test of automotive eCall systems

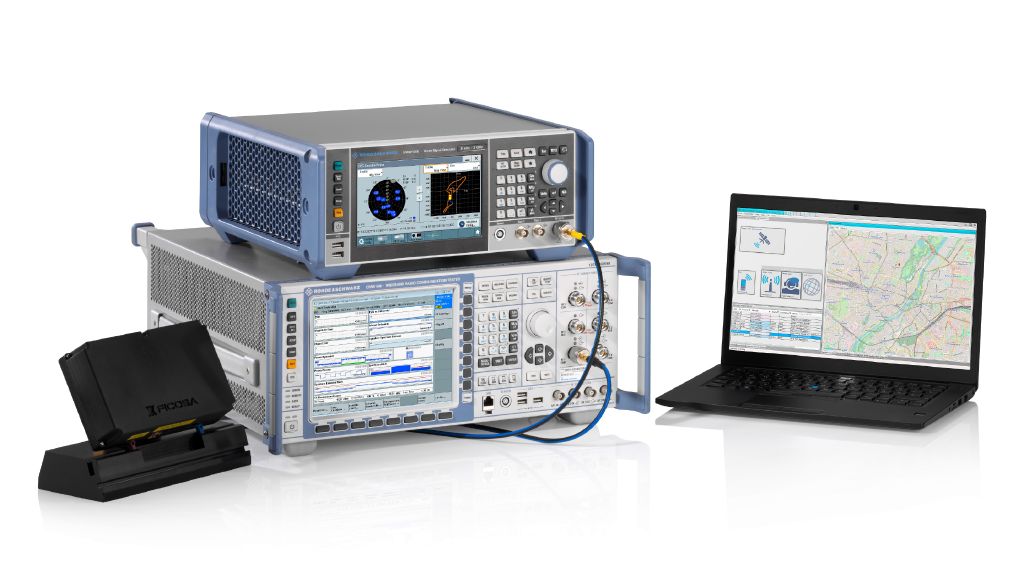

The CMW500 and R&S®SMBV100B are the ideal for ensuring 100% reliable eCall modules that can rapidly send alerts and enable stabile communications between rescue services and a vehicle involved in a collision.
Supported standards:
* eCall – Europe
* NGeCall – Europe
* ERA Glonass – Russian Federation
Wideband radio communication tester CMW500 Support IP application testing and traffic analysis
Test under fully controlled network conditions
Deep packet inspection(DPI) helps reliably analyze IP streams from the application software for conformity and security. IP traffic, OTT behavior and battery life can be optimized for applications and mobile devices. The CMW platform offers an efficient test environment for complex IP application testing of various technologies.

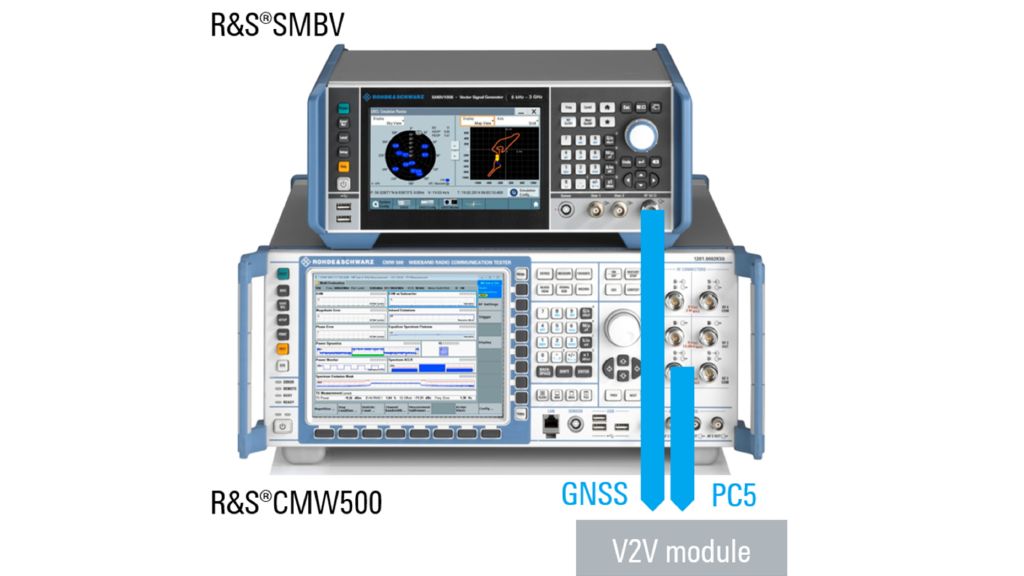

Wideband radio communication tester CMW500 Support C-V2X testing in a lab environment
Vehicle to everything(V2X) is a new generation of information and communications technologies that connect vehicles to everything and helps improve road safety and effectively manage traffic flows. Rohde & Schwarz bases the integrated setup on the CMW500 wideband radio communication tester and the R&S®SMBV100B GNSS simulator for data transmission, data reception and performance testing with various fading profiles as well as GCF validated protocol conformance testing.
