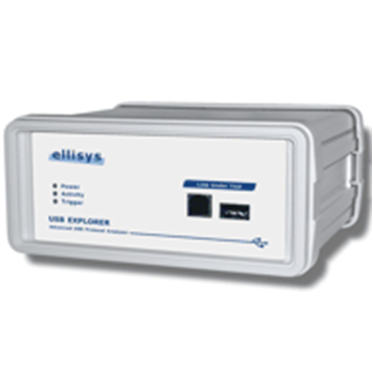

The Ellisys USB Explorer 260 is a sophisticated protocol test system for USB traffic monitoring, driver and software stack debugging, protocol compliance verification and performance analysis. The EX260 can reduce your R&D development time by finding issues early and debugging more efficiently, and can improve quality and reliability by verifying compliance to the specifications.
analyze USB 1.1 and USB 2.0 links at any speed, including OTG and the new InterChip-USB at all speeds and all voltages;
emulate USB hosts and devices;
inject pre-defined error patterns for stress and error recovery testing;
automatically verify compliance to the USB and class specifications.
The Ellisys USB Explorer 260 Analyzer includes Ellisys' extensive analysis features with real-time monitoring, hard-disk data streaming, in-depth class decoding, comprehensive traffic statistics, and powerful triggering and filtering.
The USB Explorer 260 Analyzer is based on Ellisys' renown USB analysis software that is well-proven for validating device enumeration, solving communication issues, detecting interoperability problems and optimizing performance.
The Ellisys USB Explorer 260 Generator complements protocol analysis by emulating USB devices and hosts, and by testing corner cases and recovery mechanisms. Reproducible traffic, timing and error scenarios can be created with a powerful scripting environment. Captured traffic can be replayed to test a particular situation. The Generator supports the industry's first Inline Error Injection feature to insert programmed errors between a host and device to determine the impact of transmission errors under rare conditions.
The Generator also includes the Ellisys USB Device Examiner Automated Pre-Compliance Testing software. This software controls a generator and an optional analyzer to automatically verify the compliance of devices against the USB specification and classes specifications such as HID and Mass Storage.
The Ellisys USB Explorer 260 Duo is a flexible bundle of two full-featured units that can be used as one analyzer and one generator, two analyzers or two generators depending on your testing requirements. More convenient than having both functions on the same unit, this allows you to better share your test equipment among your R&D team.
Analyzer Applications
USB host and device traffic monitoring
Drivers and software stacks debugging
Passive protocol compliance verification
Performance analysis
Analyzer Features
Analyses links non-intrusively
Transfers analyzed data in real-time for virtually unlimited recording time
Highlights protocol errors and interoperability issues
Efficiently decodes all requests and data structures
Analyzer Characteristics
Supported specifications: USB 1.0, 1.1, 2.0, OTG and IC-USB
Supported link speeds: 1.5, 12 and 480 Mbit/s with automatic discovery
Timestamp accuracy: 16.67 ns precision
Low-level errors: detection of bit-stuffing, CRC-5 and CRC-16 errors
Bus states: detection and measurement of Reset, Suspend, Keep Alive and High-Speed Handshake states

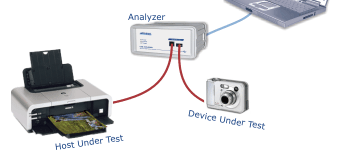

Typical Analysis Setup
The USB Explorer 260 Analyzer is connected in pass-through mode and records any traffic exchanged between a USB host and device. The host can be a PC, an embedded host or a USB Explorer 260 Generator. | |
 | |
Generator Applications
USB host and device traffic emulation
Error recovery mechanisms testing
Active protocol compliance verification
Stress testing
Generator Features
Generates arbitrary packets with precise timing control
Injects errors to test error recovery mechanisms
Uses exported scripts from analyzer to play back all kind of scenarios
Powerful scripting environment with integrated editor and debugger
Generator Characteristics
Supported specifications: USB 1.0, 1.1, 2.0, OTG and IC-USB
Supported link speeds: 1.5, 12 and 480 Mbit/s
Supported modes: host, device and inline error injection
Timing accuracy: 16.67 ns precision

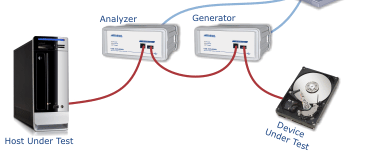

Inline Error Injection Setup
A USB Explorer 260 Generator and USB Explorer 260 Analyzer are connected in pass-through mode between a USB host and device. The generator injects programmed errors on the link while the analyzer non-intrusively records any traffic exchanged between the host and the device. | |
 | |

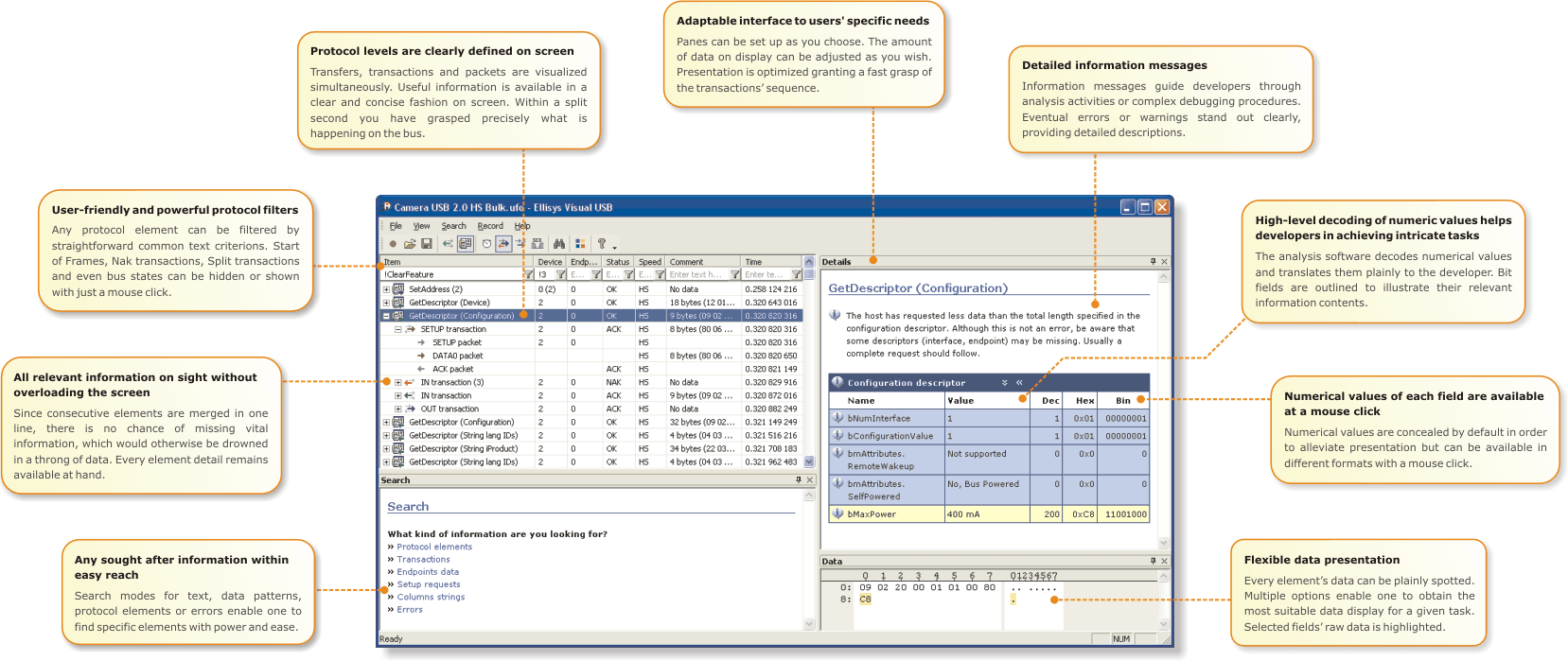

Ellisys USB Analyzer Software
The Ellisys USB Analyzer Software is available for download for evaluation. Many traces of various devices are included in the installation package to show the extensive class decoding of the software.

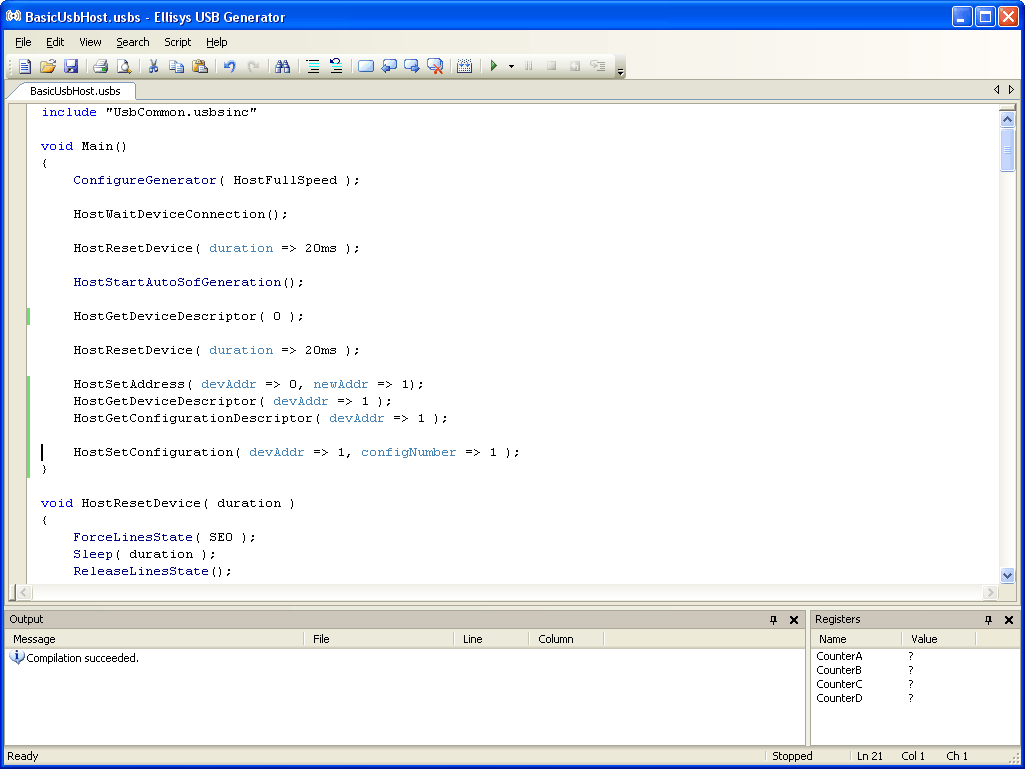

Ellisys USB Generator Software
The Ellisys USB Generator software is available for download for evaluation. Many sample scripts are included in the installation package to demonstrate the features of the generator.

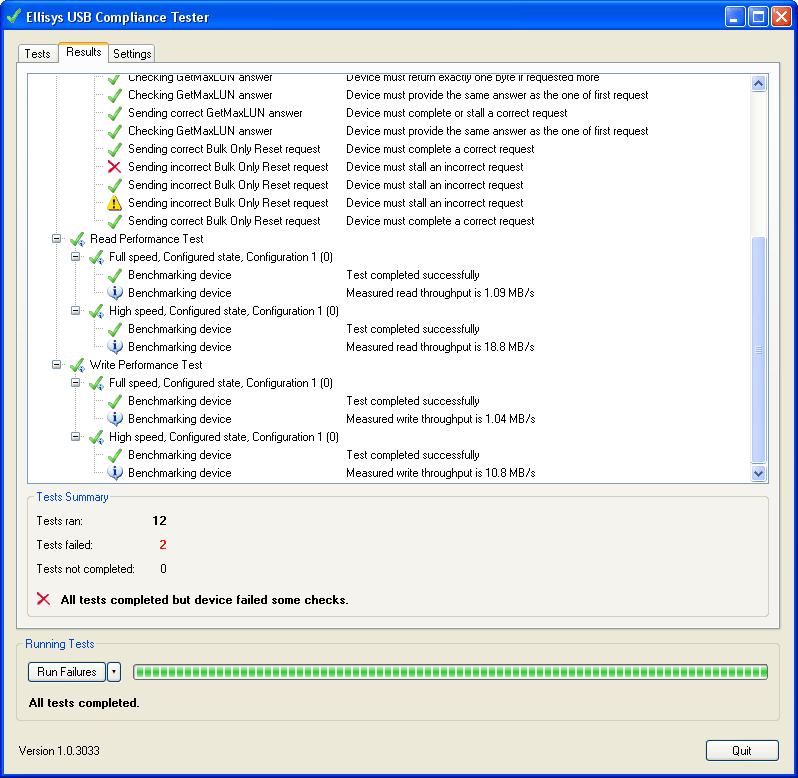

Ellisys USB Device Examiner Software
The Ellisys Ellisys USB Device Examiner (DEX) is a stand-alone USB device compliance test application that operates on the USB Explorer 260 hardware. DEX is provided with the Generator, or can be
added as an option to the Analyzer. DEX provides a comprehensive set of robust compliance tests covering Chapter 9 of the USB Specification (Device Framework).
