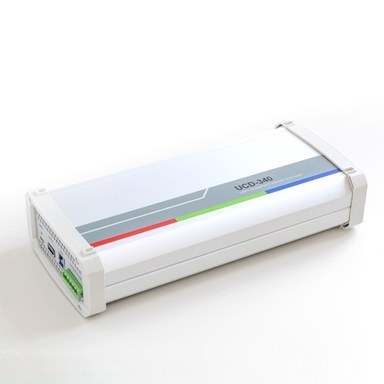

UUCD-340 is a 4K USB-C DP Alt Mode video analyzer and generator. With UCD-340 you can verify USB-C DP Alt Mode Sinks and Sources up to 4K@60Hz resolution. UCD-340 features a versatile and reliable way of testing video, audio, DisplayPort Alt Mode features, power delivery functions and connector pins of the USB-C interface. UCD-340 is the only DCP LLC Approved Test Tool for HDCP 2.3 CTS testing on USB-C DP Alt Mode Transmitter and Receiver devices. UCD-340 is controlled via easy-to-use PC GUI called UCD Console. All tests can be automated for compliance testing, R&D debugging and production line testing.
4K@60 Hz Video Analyzer & Generator
Test USB-C DP Alt Mode Video and Audio
Test USB-C Power Delivery
DCP LLC Approved HDCP 2.3 CTS Test Tool
Test connector pins with SW based cable flip
HDCP 1.3, 2.2 & 2.3 support
All tests can be automated
USB signal pass-thru
Unigraf UCD-340 is a 4K USB-C DP Alt Mode video analyzer and generator. With UCD-340 you can verify USB-C DP Alt Mode Sinks and Sources up to 4K@60Hz resolution. UCD-340 features a versatile and reliable way of testing video, audio, DisplayPort Alt Mode features, power delivery functions and connector pins of the USB-C interface. UCD-340 is the only DCP LLC Approved Test Tool for HDCP 2.3 CTS testing on USB-C DP Alt Mode Transmitter and Receiver devices. UCD-340 is controlled via easy-to-use PC GUI called UCD Console. All tests can be automated for compliance testing, R&D debugging and production line testing.
VESA requires HDCP testing as part of the DisplayPort testing requirement for certification. If a DisplayPort receiver or transmitter supports HDCP (as reported in the product CDF) it shall be tested as part of the certification requirements for obtaining the DisplayPort Logo. (Source: VESA)
Unigraf UCD-340 is the only DCP LLC Approved Test Tool for HDCP 2.3 Compliance Testing on USB Type-C DP Alt Mode Transmitters and Receivers. HDCP 2.3 CTS tests can be straightforwardly enabled to any UCD-340 Test Tool with a software add-on. The software add-on can be purchased separately for testing transmitter or receiver devices.
Unigraf UCD-340 supports automated testing for R&D debugging, compliance testing and production line testing. The UCD-340 is delivered with ready-made scripts for test automation. The scripts are run through Unigraf’s Test System Interface (TSI) which is the test software API that allows system integrators a fast and reliable way for ensuring the functionality of the test equipment. TSI Test Cases readily implement the low-level procedures needed for verifying the various functions of the tested interface and the required software integration is minimal.
One of the most common manufacturing defects on USB-C smartphones are poorly soldered connector pins. The USB-C connector is capable of delivering and receiving up to 100W of power. For safety purposes, it is essential to test that the USB-C connector pins are properly soldered into the circuit board. A poorly soldered USB-C connector can cause the cable or the device to overheat. This has known to cause the melting of the cable or serious overheating of the device causing terminal damage.
Unigraf UCD-340 offers a unique solution for testing the continuity of USB-C connector pins. A built-in electrical test enables the testing of each connector pin. Additionally, thanks to a software-based cable flip, the electrical test enables testing of the USB-C connector with single cable insertion. In production, this saves valuable time as there is no need to insert the cable in both ways. Electrical test features ready-made tests for testing Vconn and Vbus voltage levels. All electrical tests can be automated for production line testing.

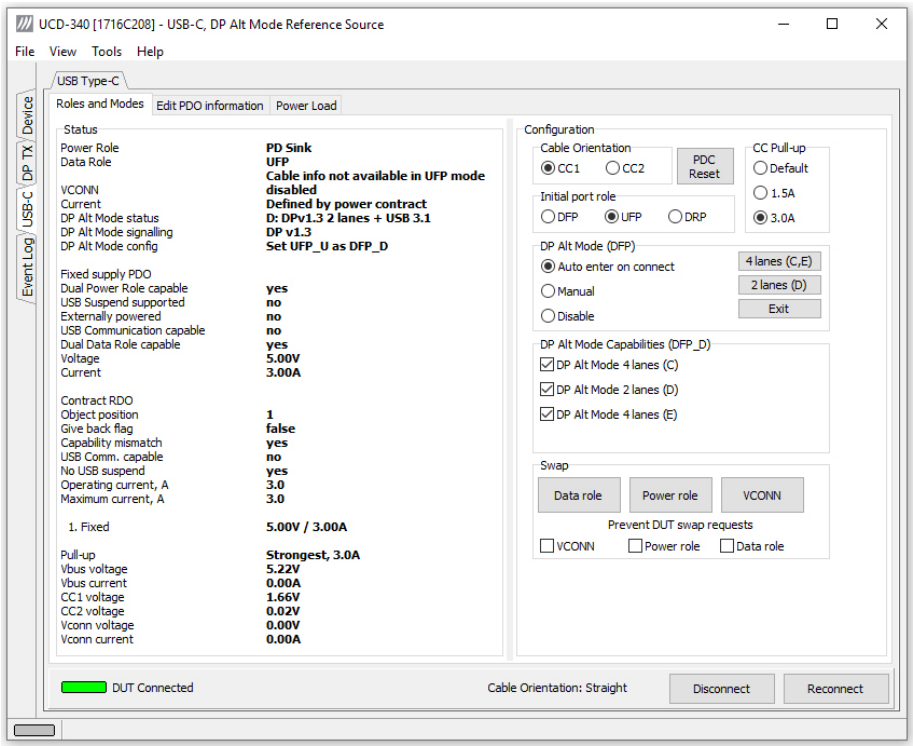

The UCD-340 Graphical User Interface (GUI) is called UCD Console. UCD Console features e.g. preview windows for the received video and audio, monitoring and controlling of the USB-C DP Alt Mode and USB-C power delivery functions, AUX Analyzer and Event logger. UCD Console also provides the status and control of the HDCP encryption. UCD Console is delivered with ready-made test sets (e.g. CRC and Link tests) for testing Sinks and Sources.

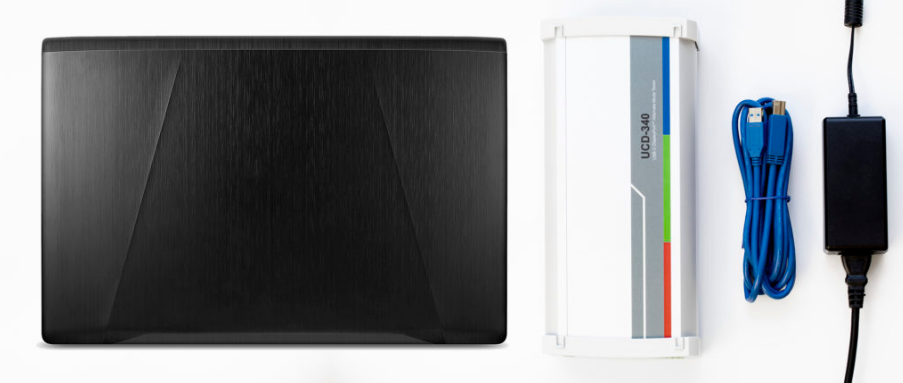

Unigraf UCD-340 is a fantastic test tool to travel with. It measures only 281×128×62 mm in size and weighs less than 1 kg. On the road, you can control it on your PC and connect it to tested devices with standard USB cables.
Unigraf UCD-340 is delivered with the UCD Console by default. You can take your debugging to the next level with UCD Console Pro Features. Pro features are a software add on available separately for testing Sink or Source devices. Please, refer to the table below to compare the UCD Console and UCD Console Pro features.
| Feature Category | Feature | UCD Console | Type-C DP Sink | Type-C DP Source |
| USB-C Modes | USB Data Role status | √ | √ | √ |
| USB Data Role control | √ | √ | ||
| USB-C Power Role status | √ | √ | √ | |
| USB-C Power Role control | √ | √ | ||
| Event Logger | √ | √ | ||
| Power Delivery protocol monitoring | √ | √ | ||
| USB-C Vbus/CC/Vconn voltage & current monitoring | √ | √ | √ | |
| Support for External Power Test Unit | ||||
| DP Alt Mode | USB-C DP Alt Mode Status | √ | √ | √ |
| USB-C DP Alt Mode control | √ | √ | ||
| DP AUX Analyzer | √ | √ | ||
| EDID read and write | √ | √ | ||
| DCPD read and write | √ | √ | ||
| Event Log | √ | √ | ||
| DP Alt Mode Reference Sink | DP Link Status Information | √ | √ | √ |
| DP Alt Mode capture,preview and saving | √ | √ | √ | |
| Link and CRC tests for Source DUT | √ | |||
| DP Alt Mode Reference Source | DP Link Status Information | √ | √ | √ |
| Control the Downstream Link | √ | |||
| Video Pattern Generator with fixed patterns and timings | √ | √ | ||
| Video Pattern Generator with custom patterns and timing | √ | |||
| Audio generator | √ | √ | √ | |
| Monitor SDP | √ | |||
| Testing HDCP | HDCP preview up to 1.3 | √ | √ | √ |
| HDCP status monitor and control up to HDCP 1.3 | √ | √ | √ | |
| HDCP 1.3 Key Test support | √ | √ |
Unigraf’s Software Development Kit (SDK) for test automation is called Test System Interface (TSI). TSI is a hardware-independent, high-level Software API (Software Application Interface). In the table below you can compare the available features of the basic and advanced TSI API test sets.
| Feature Category | Feature | Basic TSI API | Advanced TSI API |
| USB-C Modes | USB Data Role status | √ | √ |
| USB Data Role control | √ | ||
| USB-C Power Role status | √ | √ | |
| USB-C Power Role control | √ | ||
| USB-C Vbus/CC/Vconn voltage/current monitoring | √ | ||
| Power Delivery protocol monitoring | √ | ||
| Support for External Power Test Unit | √ | √ | |
| DP Alt Mode | USB-C DP Alt Mode Status | √ | √ |
| USB-C DP Alt Mode control | √ | √ | |
| DP Link Status Information | √ | √ | |
| EDID read and write | √ | ||
| DCPD read and write | √ | ||
| Testing DP Alt Mode Preference Source | DP Alt Mode capture,preview and saving | √ | √ |
| TSI Video Test (SW Pixel comparison) | √ | √ | |
| TSI Audio Test | √ | √ | |
| Link and CRC tests | √ | ||
| Testing DP Alt Mode Preference Sink | DP Link Status Information | √ | |
| Control of the Downstream Link | √ | ||
| Video Pattern Generator with fixed patters and timings | √ | √ | |
| Video Pattern Generator with custom patters and timings | √ | ||
| Audio generator | √ | √ | |
| Monitor SDP | √ | ||
| Testing HDCP | HDCP status preview, monitor and control up to HDCP 1.3 | √ | √ |
| HDCP 1.3 Key Test support | √ |
External Power Test Unit enables testing USB-C Power Delivery up to 20V/5A. It is a hardware accessory to UCD-340.

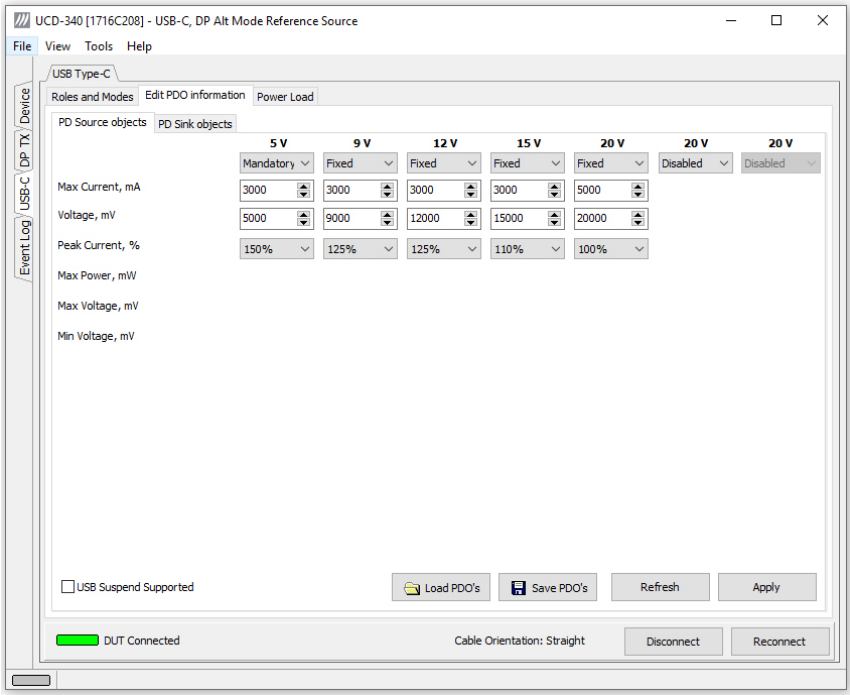

USB-C extended power delivery test controls in the UCD Console GUI.
• Test DP over USB-C video and audio
• Test USB-C Power Delivery with DP Alt Mode
• DCP Apporved HDCP 2.3 CTS Tests
• Test USB-C Connector Pins soldering and assembly quality
• 4K@60 support
• HDCP 1.3 and HDCP 2.3 support
• Capture video and audio, monitor and control interface parameters
• USB signal pass-thru
• UCD Console GUI for debugging
• High level API for easy integration
Type: • DisplayPort • USB-C
Device to test: • Laptop • Monitor • Smartphone • Tablet • Transmitter • VR Glasses
Use cases: • HDCP 2.3 Compliance Testing • Production Testing • R&D Debugging • Testing Automation
Features: • 4K
Test Connections USB Type-C (Dual role port)
USB Type A (Device) pass-thru
USB Type B (Host) pass-thru
External Power Source / Sink connector
DP Over USB-C Resolution up to 4096×2160p60
Up to HBR2 rate in up to 4 lanes
Color depth up to 48 bits
Support HDCP 1.3 and 2.3
USB Over USB-C USB 3.2 Gen1 (5 Gbps) and USB 2.0 pass thru
USB Power Delivery Sink and source 5 V up to 3.0 A,
up to 20 V / 5 A with external power test unit (Optional)
Electrical Test Verify functionality of USB Type-C
interface signals (VBUS, GROUND, CC1/2, SBU1/2). (Optional)
Computer Interface USB 3.2 Gen 1
Operating System Windows 10, 8, 7 and XP
Software UCD Console GUI
TSI API with ready Test Cases
Environment Operating temperature: 0 ... +40°C
Storage temperature: -20 ... +60°C
Relative humidity: 10 ... 80%
Power Input +12 Vdc (AC/DC converter included)
Module Size 281×128×62 mm
Warranty 12 months
