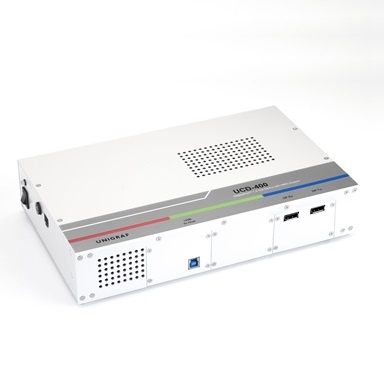

UCD-400 is an HBR3 capable 8K video generator and analyzer. With UCD-400 you can verify DisplayPort™ interfaces up to 8K@30 Hz (8K@60 Hz with DSC) and 4K@120 Hz video modes. The unit supports FEC, DSC, and LTTPR. UCD-400 is approved as an official DP 1.4a Link Layer compliance test tool including DSC and HDCP 2.3 CTS tests.
VESA Certified DP 1.4a Link Layer CTS Test Tool
DCP Approved HDCP 2.3 CTS Tool
Up to 8K Reference Sink & Source
DP 1.4a / HBR3 input and output in one unit
Cable adapter for USB-C devices testing
MST support (4 streams)
DSC, FEC and LTTPR support
HDCP 1.3, 2.2 and 2.3 support
Unigraf UCD-400 is an HBR3 capable 8K video generator and analyzer. With UCD-400 you can verify DisplayPort™ interfaces up to 8K@30 Hz (8K@60 Hz with DSC) and 4K@120 Hz video modes. The unit supports FEC, DSC, and LTTPR. UCD-400 is approved as an official DP 1.4a Link Layer compliance test tool including DSC and HDCP 2.3 CTS tests.
Unigraf UCD-400 is a VESA Certified DP 1.4a Link Layer Compliance Test Tool for Sinks, Sources and Branches. UCD-400 is also a DCP LLC Approved Test Tool for HDCP 2.3 Compliance Testing of Transmitters, Receivers and Repeaters on the DisplayPort interface.
VESA requires Link Layer and HDCP testing as part of the DisplayPort testing requirement for certification. If a DisplayPort receiver or transmitter supports HDCP (as reported in the product CDF) it shall be tested as part of the certification requirements for obtaining the DisplayPort Logo. (Source: VESA)
From the table below you find the latest updates on DisplayPort 1.4a CTS tests for UCD-400.
| Date | Update |
| 18.3.2022 | Adaptive Sync CTS tests now available for UCD-400 |
| 21.12.2021 | DisplayID-EDID CTS tests now available for UCD-400 |
DisplayPort 1.4a CTS status for testing Source DUT.
| Section | Test IDs in DP1.4a LL CTS | Unigraf Test Set | Implementation Status | VESA Status |
| Link Layer | 4.2.1.1 - 4.4.1.3, 4.4.2 - 4.5.1.2 | MT6637: DP 1.4a Link Layer CTS for Source DUT | Complete | NORMATIVE |
| DSC | 4.6.1.1 - 4.6.1.9 | MT6642: DP 1.4 DSC CTS for testing Source DUT | Complete | NORMATIVE |
| DisplayID-EDID | 4.7.1.1 - 4.7.4.1 | MT6646: DisplayID / EDID CTS for testing Source DUT | Complete | NORMATIVE |
| 4.7.5.1 | Complete | IN PROGRESS | ||
| Adaptive Sync | 4.8.1.1 - 4.8.2.2 | MT6648: AdaptiveSync CTS for testing Source DUT | Complete | IN PROGRESS |
DisplayPort 1.4a CTS status for testing Sink DUT.
| Section | Test IDs in DP1.4a LL CTS | Unigraf Test Set | Implementation Status | VESA Status |
| Link Layer | 5.2.1.1 - 5.4.1.4, 5.4.2 - 5.5.1.7 | MT6637: DP 1.4a Link Layer CTS for Source DUT | Complete | NORMATIVE |
| DSC | 5.6.1.1 - 5.6.2.14 | MT6642: DP 1.4 DSC CTS for testing Source DUT | Complete | NORMATIVE |
| DisplayID-EDID | 5.7.1.1 - 5.7.4.3, 5.7.4.5, 5.7.5.1 - 5.7.12.3 | MT6646: DisplayID / EDID CTS for testing Source DUT | Complete | NORMATIVE |
| Adaptive Sync | 5.8.1.1 - 5.8.1.3 | MT6648: AdaptiveSync CTS for testing Source DUT | Complete | IN PROGRESS |
Unigraf UCD-400 supports test automation to be used in R&D debugging or validation, compliance tests or functional tests in the production environment.
Unigraf UCD-400 software package includes an SDK with a scripting and programming API. Unigraf’s Test System Interface (TSI) allows system integrators a fast and reliable way of implementing the functionality of the test. TSI is very flexible. It can be used either for various kinds of video and audio tests or to automate a complete set of Compliance Tests.
UCD Console is Unigraf’s common Graphical User Interface (GUI) for all UCD series products. UCD Console is available for Windows, Linux and macOS operating systems.
UCD Console enables users to access all test features of the UCD-400. It provides users with a flexible way of navigating between its sink and source roles and functionalities of each role.
Available functionalities include preview windows for captured video and audio, video and audio pattern generator, data logger for AUX and metadata content, link and DPCD register monitoring and control dialogs, EDID editor, HDCP status and control functions etc.
UCD Console is delivered with ready-made test sets (e.g. content check-sum tests and Link Training tests) for testing DisplayPort Sinks and Sources.
LTTPR is a feature that helps maintain signal integrity between DisplayPort Source and Sink by letting each repeater optimize the signal path with link training. UCD-400 is able to act as a DisplayPort source controlling the LTTPRs in the downstream signal path. LTTPR Test is a software addition for the UCD-400.
UCD Console is Unigraf’s common Graphical User Interface (GUI) for all UCD series products. UCD Console is available for Windows, Linux and macOS operating systems.
Unigraf UCD-400 device is delivered with UCD Console and Test System Interface (TSI) System Development Kit (SDK) for DisplayPort Sinks and Sources. Please, refer to the table below to see the default tests provided with UCD Console and TSI SDK.
Note: HDCP 2.3 Support is also delivered with the UCD-400 device.
For Testing Source DUT
| Feature Group | Feature |
| Video | Preview, Capture, Snap preview |
| Status | |
| Audio | Play audio files |
| Monitor, Capture, and graphical preview | |
| Link | Link status, Link configuration |
| Stream status (video, audio) | |
| HPD status: (Asserted / De-asserted) | |
| HPD status, HPD Assert / De-assert, HPD Long Pulse, HPD Short Pulse | |
| MST feature (up to 4 streams) | |
| FEC feature | |
| EDID | Read / Write, Save / Load |
| EDID editor | |
| DPCD | Read / Write, Save / Load |
| DPCD Decoder | |
| HDCP | HDCP 1.3 and 2.3 support |
| Authentication status, Encryption status | |
| Event Log | DP AUX Analyzer |
| Sink DUT Testing | Execute TSI tests for source DUT testing |
For Testing Sink DUT
| Feature Group | Feature |
| Pattern Generator | Fixed and custom Video Timings |
| Fixed and custom Video Patterns | |
| Audio Generator | Play audio files |
| Link | Link status |
| HPD status: (Asserted / De-asserted) | |
| Link configuration: (Lane count, Link rate, Framing mode, Clock made) | |
| MST feature (up to 4 streams) | |
| FEC feature | |
| EDID | Read / Write, Save / Load, EDID editor |
| DPCD | Read / Write, Save / Load, DPCD Decoder |
| HDCP | HDCP 1.3 and 2.3 Control and Status support |
| Event Log | DP AUX Analyzer |
| Sink DUT Testing | Execute TSI Tests for Sink DUT testing |
DSC feature is available as a software add-on to UCD-400. DSC feature includes both tools for encoding and decoding DSC content, which enables DSC CTS and related tests in DP Link Compliance Test tool.
DSC Decoder allows the user to preview DSC images on the UCD Console. DSC Encoder allows users to convert image bitmaps into DSC encoded custom patterns to be transmitted with the built-in pattern generator on the UCD Console.
• VESA Certified DP 1.4a Link Layer CTS Test Tool
• DCP Approved HDCP 2.3 CTS Tool
• 8K and 4K Reference Sink, Source & Branch
• 8K@30Hz & 4K@120Hz support
• DP 1.4a / HBR3 input and output in one unit
• USB-C input and output with supplied converter cable
• MST support (4 streams)
• DSC, FEC and LTTPR support
• HDCP 1.3 and 2.3 support
Type: • DisplayPort
Device to test: • Graphic Chipsets • Laptop • Monitor • Television • Transmitter
Use cases: • AdaptiveSync CTS Testing • DisplayID/EDID CTS Testing • DP 1.4a Link Layer CTS Testing
• HDCP 2.3 Compliance Testing • R&D Debuging • Test Automation
Features: • DisplayID/EDID • 4K • 8K • DSC • LTTPR
Input DP 1.4a (8K@30 Hz / 4K@120 Hz)
Output DP 1.4a (8K@30 Hz / 4K@120 Hz)
Content Protection HDCP 2.4, HDCP 1.3
DSC Capability DSC sink with off-line decompression
DSC source using pre-compressed content
DSC 1.2a support
Support RGB / YCbCr up to 12 bits per component
24 slices, max width 7680 pixels Up to 8K@60 Hz
Additional features MST
FEC, LTTPR
DP 1.4a LL CTS
HDCP 2.3 CTS
Computer Interface USB 3.0
Operating System Windows 10,8 and 7
Software UCD Console GUI
TSI API with interface specific test sets
Power Input +12 Vdc (AC/DC converter included)
Module Size 272 x 170 x 60 mm
Weight 1.2 kg
