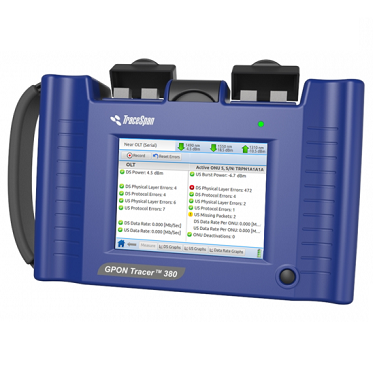

GPON Tracer is the ideal tool for both telecom operators' field engineers and customer support teams of OLT and ONT/ONU manufacturers. Featuring a compact handheld device with a user-friendly touch screen interface, the GPON Tracer provides a rich variety of real-time indications in simple graphical and textual formats, giving accurate indications of network and service issues and their root causes. Moreover, GPON Tracer reduces repair charges by preventing unnecessary replacements of properly working equipment.
Built for field engineers and customer support
Speeds up on-site troubleshooting
Rich variety of real-time indications
Simple, user-friendly, touch-screen interface
Full visibility into your network's blind spot
How quickly can you diagnose issues in your optical access network? Whether you are a telecom operator or a GPON equipment manufacturer, your technical support teams are challenged with resolving service complaints and identifying the sources of issues.
GPON Tracer is the ideal tool for both telecom operators' field engineers and customer support teams of OLT and ONT/ONU manufacturers. Featuring a compact handheld device with a user-friendly touch screen interface, the GPON Tracer provides a rich variety of real-time indications in simple graphical and textual formats, giving accurate indications of network and service issues and their root causes. Moreover, GPON Tracer reduces repair charges by preventing unnecessary replacements of properly working equipment.

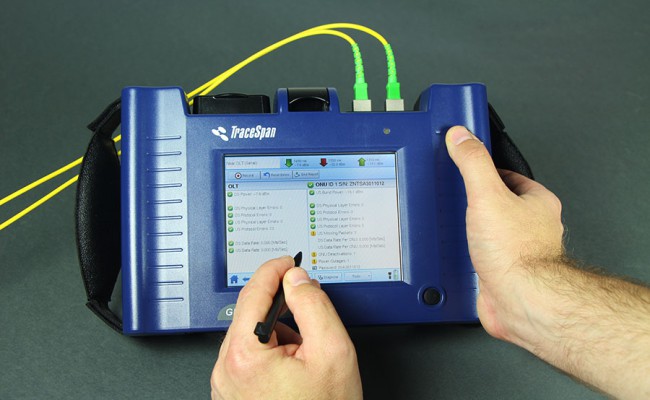

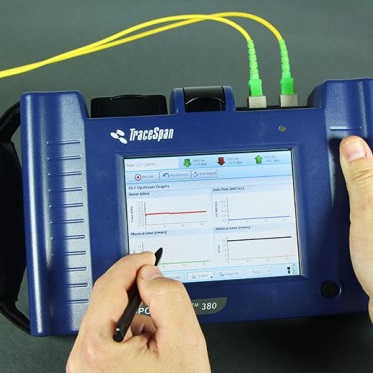

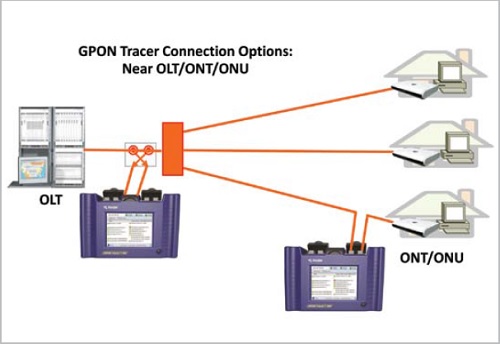

GPON Tracer has the flexibility to be connected anywhere within your GPON access network, either in parallel or serial. Whether it is at the customer site near the ONU or at the central office site near the OLT, the GPON Tracer supports easy connectivity to enable quick capture and analysis of data and traffic.

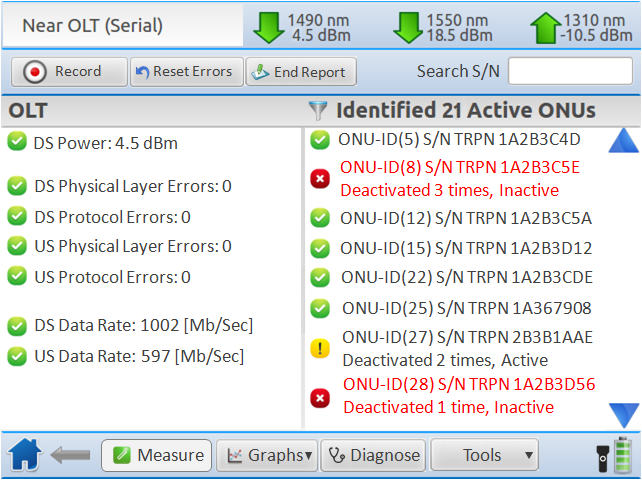

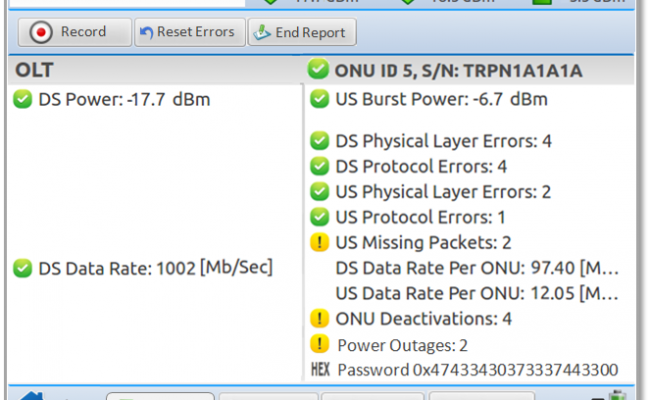

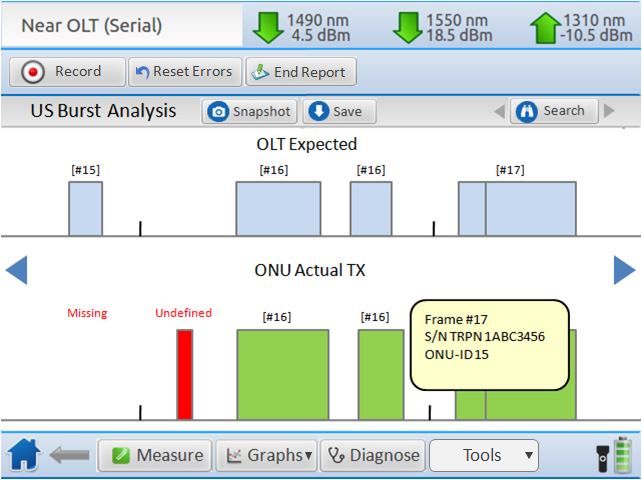

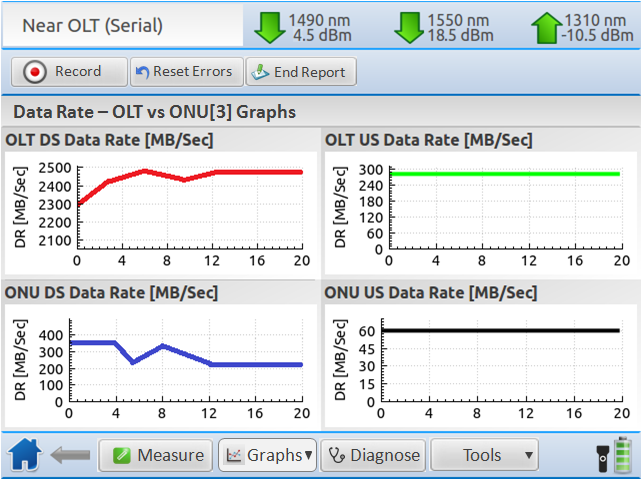

By capturing and analyzing traffic in real time, the GPON Tracer displays a summary of measured parameters, graphs and diagnostics that quickly identify network issues and point-out their root cause. These powerful yet simple indications include downstream and upstream data rates, optical power levels of the OLT and every ONT/ONU, link and transmission errors and ONU testing results. Severe network issues such as PON congestion and rogue ONU are clearly indicated in real time, facilitating rapid repair and service recovery. GPON Tracer's ONU Test function can clearly isolate a faulty ONU/ONT to prevent unnecessary equipment replacement.

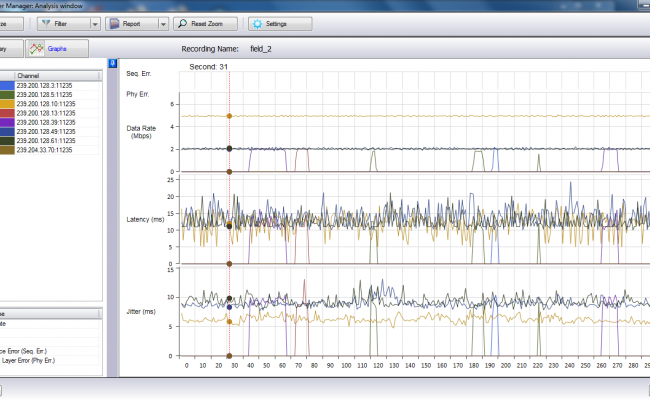

GPON Tracer provides performance metrics for IPTV services running on GPON networks. It analyzes IPTV channels on the network and provides various service quality metrics for each channel in tabular and graphical formats.
GPON Tracer can be connected to laptops or desktop computers for transferring files, displaying measurement values and graphics, and exporting them as reports in PDF and HTML formats.
GPON Tracer can also escalate complex issues to the support of laboratory experts or equipment manufacturers. By recording GPON and upper layer protocol data, files can be exported to TraceSpan GPON Xpert multi-layer analyzer for deep protocol analysis.
Physical Dimensions:
• Height: 167 mm (6.5 in)
• Width: 256 mm (10 in)
• Depth: 54 mm (2.1 in)
• Weight: 1.5 kg (3.3 lb) (including batteries)
Power Consumption： 20 Watts maximum
Battery Backup Time：4 hours of operation in typical usage scenarios
Data Storage Capacity :
• Up to 8 GB per recording file
• Up to 7 recording files
• Up to 30 report files
• Up to 5 Upstream Analysis files
EMC :
FCC 47CFR Part 15, Subpart B, Class A
EN 61326-1, Class A
Safety : IEC 61010-1, EN 61010-1
Shock and Vibration : ETSI EN 300 019-2-7
Operating Environment :
Temperature: 0°- 40°C (32°-104°F)
Humidity: 10% to 90% non-condensing

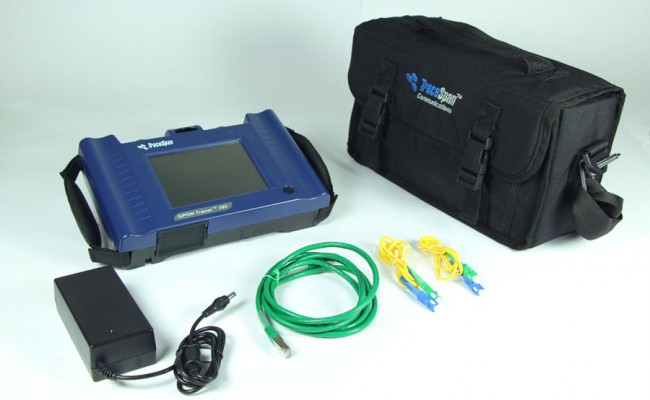

Power Supply/ Battery Charger :
AC/DC adaptor, Emerson, model: DP4012N3M or equivalent
Input: 100-240 VAC, 50-60 Hz,1A
Output: 12 VDC, 3.33A Max.
Rechargeable Battery : 7.4 V, 5200 mAH rechargeable Li-ion battery, with built-in protection
Coin Battery : CR2354, 3V lithium battery
TraceSpan Communications develops and manufactures innovative broadband testing and monitoring solutions. Since its establishment in 2002 the company has become a leading provider of broadband testing and monitoring solutions. Empowered by patent-pending breakthrough technology, TraceSpan's performance analysis and Lawful Interception products enable non-intrusive monitoring of data in broadband access networks.
TraceSpan's multi-layer analyzers are accepted worldwide as the industry's first passive analyzers for vendor-independent testing of LTE, GPON, NG-PON, G.fast, VDSL2, ADSL2Plus, ADSL2, ADSL and DOCSIS networks. Highly flexible and easy to use, TraceSpan products deliver significant cost savings, faster time to market, and rapid return on investment to Telco's, MSOs and service providers, system vendors, chipset developers, and technology innovators.
Current Products:GPON Protocol Analyzer GPON Tracer
