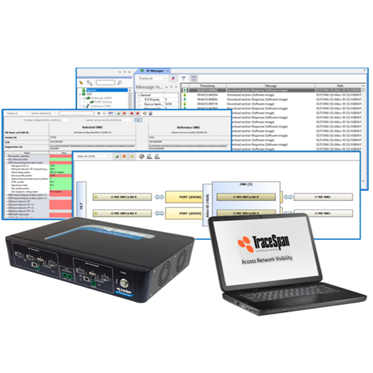

The HS-PON Xpert is a unique, non-intrusive multi-layer protocol analyzer for 50G and 25G PON networks and products, combined with a revolutionary Multi-ONU emulator as well as an OLT emulator with predefined and user-defined test cases. Specifically designed for R&D, laboratory and field application engineers, HS-PON Xpert is a neutral, unbiased testing tool that helps telecom operators, MSOs and vendors accelarate time-to-market by cutting significant time from development, deployment, and troubleshooting of 5G and 25G PON solutions.
Comprehensive analysis of 50G and 25G PON protocols
Neutral Unbiased PON Testing
Multi-Layer Analysis including TC, OMCI and upper layer protocols
Intuitive user interface, variety of reporting and exporting options
The HS-PON Xpert is a unique, non-intrusive multi-layer protocol analyzer for 50G and 25G PON networks and products, combined with a revolutionary Multi-ONU emulator as well as an OLT emulator with predefined and user-defined test cases. Specifically designed for R&D, laboratory and field application engineers, HS-PON Xpert is a neutral, unbiased testing tool that helps telecom operators, MSOs and vendors accelarate time-to-market by cutting significant time from development, deployment, and troubleshooting of 5G and 25G PON solutions.
The HS-PON Xpert is a unique, non-intrusive multi-layer protocol analyzer for 50G and 25G PON networks and products. It tests and compares the functionality of OLTs and ONUs and verifies the standard compliance and interoperability of PON products from different vendors. It is a powerful tool for telecom operators, MSOs and equipment vendors, as well as for technology and chipset companies.
Specifically designed for R&D, laboratory and field application engineers, the HS-PON Xpert is a neutral, unbiased testing tool that helps telecom operators, MSOs and vendors accelerate time to market by cutting significant time from development, deployment and troubleshooting of 50G and 25G PON solutions.
As an independent and unbiased testing platform, the HS-PON Xpert is built without using any PON chipset. Using its unique multi-layer probing capability, it lays out a comprehensive picture of the protocols and traffic running line. It analyzes and displays the PLOAM and OMCI messages as well as the upper layers, from Ethernet to HTTP and RTP.
• Comprehensive analysis of 50G and 25G PON protocols
• Neutral Unbiased PON Testing
• Multi-Layer Analysis including TC, OMCI and upper layer protocols
• Intuitive user interface, variety of reporting and exporting options
The HS-PON Xpert supports a variety of PON technologies and protocols of both the ITU and the IEEE. The different technologies range from the 25GS-MSA PON and the IEEE 25G-EPON to the ITU-T 50G PON and the IEEE 50G-EPON.
Using multi-layer probing capability, the HS-PON Xpert lays out a comprehensive picture of the protocols and traffic running through the PON. It analyzes and displays the Transmission Convergence (TC) and OMCI management layers and provides full analysis of the Upper Layers, from Ethernet to HTTP.

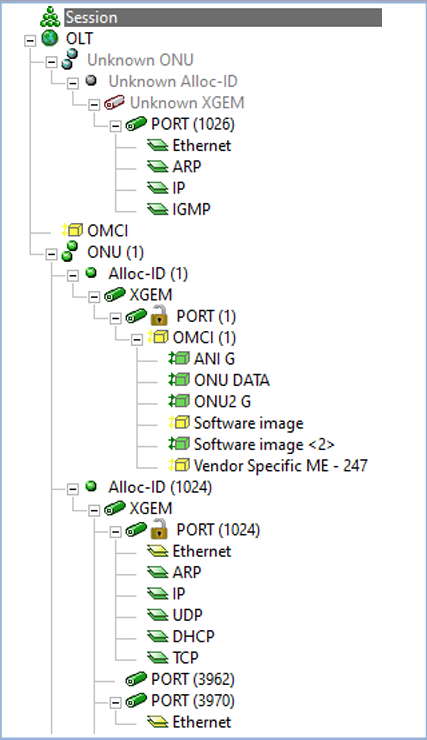

The HS-PON Xpert automatically detects and lays out a comprehensive picture of the PON topology. It displays it in an intuitive tree format, which includes the ONUs, the Alloc-IDs, the XGEM ports and the upper layer protocols, along with indications of AES encryption for every XGEM port.
Every node on the tree is color-coded to indicate expected or abnormal behaviors (events) with customizable severity levels.
The topology tree allows direct navigation from any node on the tree to the relevant messages and events. Navigation is also available through the protocol stack from any protocol layer to the protocols above and below it.

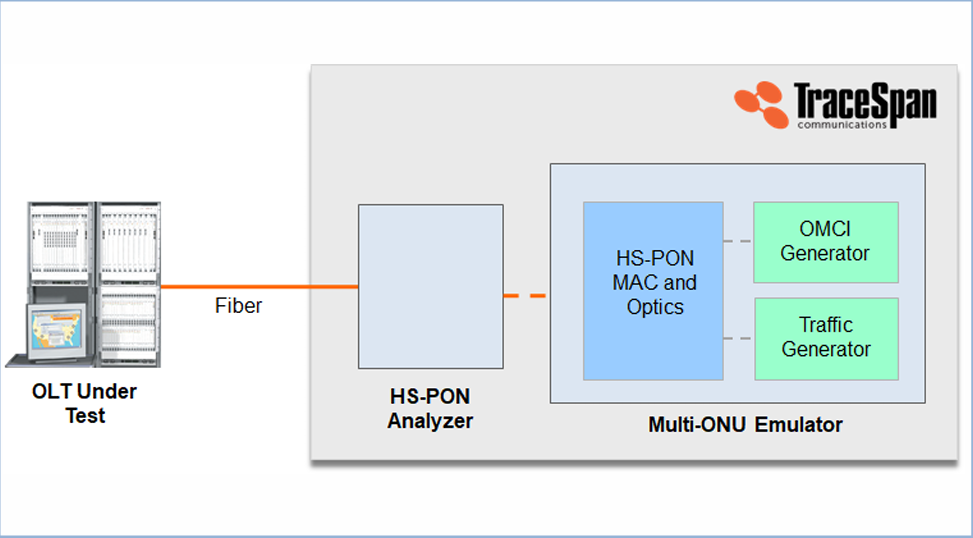

The Multi-ONU Emulator module allows OLT vendors and service providers to test an OLT without requiring any ONU, while providing additional coverage for functions and options that are not fully covered by the traditional test setups of multiple ONUs.
HS-PON Xpert can serve as an OLT Emulator for testing an ONU/ONT on a stand-alone basis, using predefined tests or user-defined ones. The OLT Emulator in the combined with the NG-PON analyzer and the built-in traffic generator provides an end-to-end ONU testing solution, which simultaneously generates commands and data, analyzes the ONU response, provides Pass/Fail indications for the tested steps and reports any incompliance it detects.

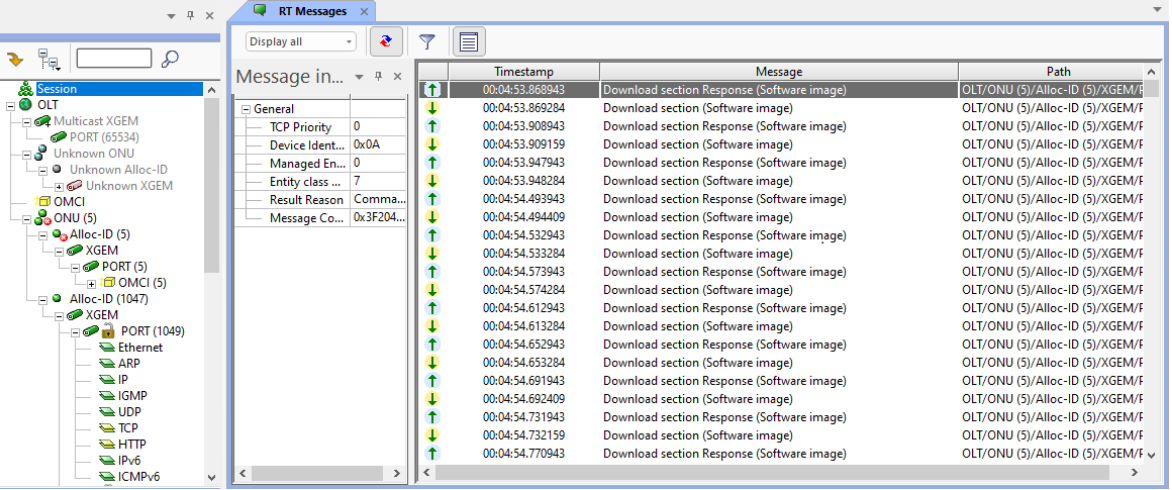

The HS-PON Xpert features a rich array of intuitive displays, graphs and tables for testing and troubleshooting of the 50G and 25G PON OLTs and ONUs. The displayed information includes downstream and upstream PLOAM and OMCI messages, ME details, relations diagrams, routing diagrams, statistics and more.
The HS-PON Xpert automatically detects and lays out a comprehensive picture of the PON topology. It displays it in an intuitive tree format, which includes the ONUs, the Alloc-IDs, the XGEM ports and the upper layer protocols, along with indications of AES encryption for every XGEM port.

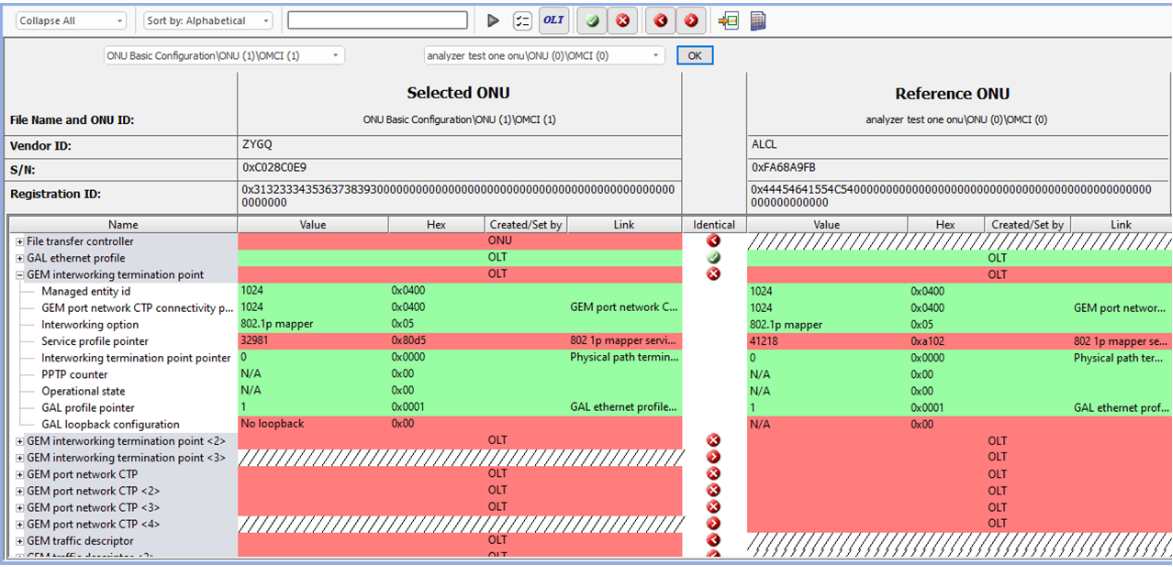

The HS-PON Xpert clearly indicates abnormal behaviors and deviations from the relevant standards, thus verifying standard compliance and interoperability between different vendors' OLTs and ONUs.
Ensuring proper operation of the 50G and 25G network elements enables equipment manufacturers and chipset vendors to build high-quality products and shorten time to-market. It also provides flexibility to operators and MSOs in providing reliable high bandwidth services to their customers. The HS-PON Xpert clearly indicates abnormal behaviors and deviations from the relevant standards, thus verifying standard compliance and interoperability between different vendors' OLTs and ONUs.
The HS-PON Xpert supports the generation of detailed analysis reports in a user-friendly HTML format. Selected information can also be exported for further analysis in various formats, such as PCAP, CSV and XML.
The HS-PON Xpert includes a Command Line Interface (CLI), enabling its integration into automated test environments. The automated ONU test solution runs multiple tests in a sequence including the generation of traffic streams for stand-alone testing of an ONU.
The built-in Command Line Wizard application eases the generation of CLI command for various test scenarios, thus speeding up the testing process, saving time and labor and minimizing human errors.
Standards Compatibility :
ITU-T G.9804.1, G.9804.2, G.9804.3 – 50G-PON Specifications
ITU-T G.988 – ONU management and control interface (OMCI) 25GSPON-MSA – 25GS-PON Specification
IEEE 802.3ca Amendment 9 – Standard for 25G and 50G PON
IEEE 1904.1 – IEEE Standard for Service Interoperability in Ethernet Passive Optical Networks (SIEPON)
CableLabs DPoE – DOCSIS® Provisioning of EPON Specifications
EMC Standards :
FCC 47CFR Part 15, Subpart B, Class A
EN 61326-1, Class A
Safety Standards :
IEC 61010-1, EN 61010-1
TraceSpan Communications develops and manufactures innovative broadband testing and monitoring solutions. Since its establishment in 2002 the company has become a leading provider of broadband testing and monitoring solutions. Empowered by patent-pending breakthrough technology, TraceSpan's performance analysis and Lawful Interception products enable non-intrusive monitoring of data in broadband access networks.
TraceSpan's multi-layer analyzers are accepted worldwide as the industry's first passive analyzers for vendor-independent testing of LTE, GPON, NG-PON, G.fast, VDSL2, ADSL2Plus, ADSL2, ADSL and DOCSIS networks. Highly flexible and easy to use, TraceSpan products deliver significant cost savings, faster time to market, and rapid return on investment to Telco's, MSOs and service providers, system vendors, chipset developers, and technology innovators.
Current Products:HS-PON Xpert™: Multi-layer Analyzer and Emulator for 50G and 25G PON
