The electric vehicle charging pile charging tester EVCA provides an effective way to analyze and solve various problems during charging by monitoring and evaluating control signals and load circuits during the charging process. It can not only simulate vehicles and piles, but also be set between vehicles and piles for monitoring. At the same time, it has two product types: rack mounted and portable. Use the EVCA charging tester in the laboratory, EMC room, or charging station site to accelerate electric vehicle charging testing and charging station charging testing.
Compliant with AC communication standards: IEC61851-1, SAEJ1772, GB/T18487.1-2015
Compliant with DC standards: IEC 61851-1, DIN 70121, ISO 15118, SAE J1772, and IEC 61851-23
Communication Protocol Analysis Standards: GB/T27930-2011, GB/T27930-2015
WPT Wireless Charging Standard: JSON (SAE J2954)
Use the EVCA charging tester to accelerate electric vehicle charging and EVSE testing in the laboratory, EMC room, or factory site.
The EVCA charging tester supports testing charging standards:
IEC 61851-1、DIN 70121、ISO 15118（ISO 15118-2、ISO 15118-3、ISO 15118-24、ISO 15118/5、ISO 15118－20）、SAE J1772、IEC 61851-23、CharIN、IEC 61851.21-1、IEC 61851－22、ECE R10、CHAdeMO、 National standards GB/T 27930-2011, GB/T 27930-2015, GB/T 18487.1-2015, etc.
We ensure that your electric vehicle and electric vehicle power supply equipment charging interface standards are compliant, safe, and reliable. Through our products, we can assist you in conducting electric vehicle testing or electric vehicle power supply testing. In addition, our goal is to make the complex charging process easy for customers to analyze and test. The EVCA charging tester measures and verifies the standard consistency of communication and load circuits throughout the entire charging process, and records all deviations. Therefore, the cause of charging interruption can be identified, and the causal relationship of events can be detected and visualized. With our unique real-time analysis capabilities, consistency testing library, the possibility of automated end-to-end testing, and many electrical faults for robustness testing, we can provide a complete set of possibilities for our customers' individual needs. Please have our sales engineers provide you with a perfect matching testing and measurement system.
Can provide both laboratory specific rack mounted and portable for outdoor use simultaneously
Simultaneous analysis of charging circuit, CP control signal, and PLC signal
Long term non-destructive data analysis
Meet the testing requirements of various standards such as IEC, DIN, SAE, ISO, GB/T, etc
Dealing with various plugs and interfaces

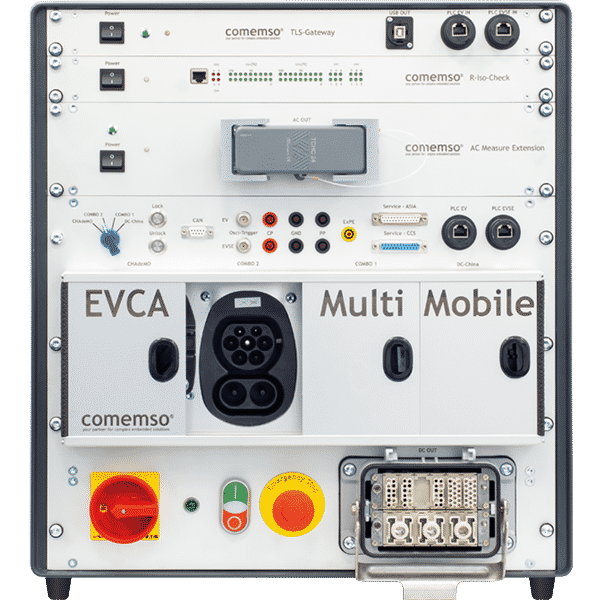

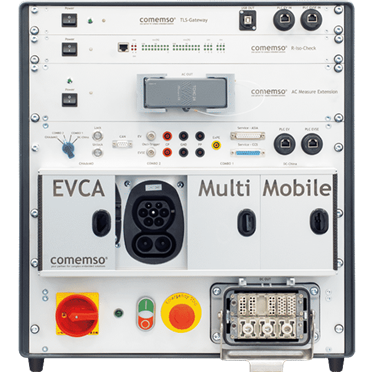

Comemso EVCA Multi Mobile is an excellent world innovation in the field of electric vehicle charging system analysis. It combines the four most common charging standards:
For DC-CCS Combo 1+2, AC Type 1+2, CHAdeMO, and GB/T China: integrated systems, they can be used without the need to block or replace the inlet or similar items beforehand, all in accordance with the latest standards.
For DC-CCS combination 1+2: IEC 61851-1, DIN 70121, ISO 15118, and SAE J1772; ISO/IEC 61851-23 measurement and ISO/IEC 61851-24 DC load circuit are fault free.
For CHAdeMO: 0.9.1, 1.0, 1.0.1, 1.1, 1.2, and 2.0.
For GB/T DC (China): GB/T 27930-2011; GB/T 27930-2015 and GB/T 18487.1-2015
The electric vehicle charging test analyzer AC+DC CCS is a device used for extensive charging analysis of AC charging types 1, 2, GB/T, and DC-CCS Combo 1+Combo 2.

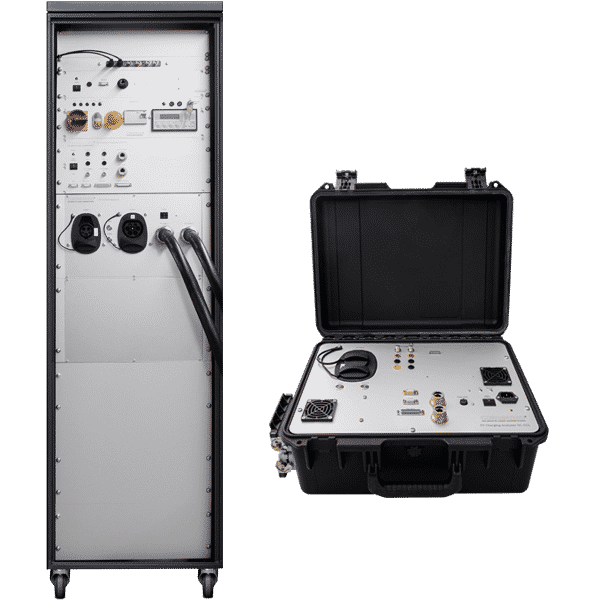

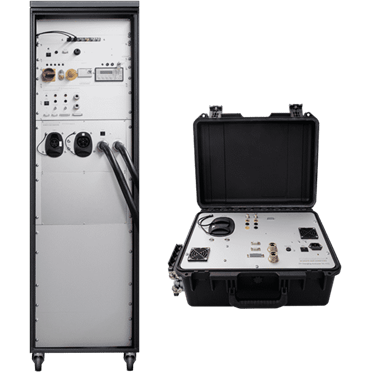

This device is built into a modular configuration and can be used for interoperability testing or as a simulator for electric vehicles or electric vehicle power supply equipment. Use a rack mounted version of up to 500kW for your laboratory, or a mobile suitcase version for your on-site testing.
For AC-CCS Type 1+2: IEC 61851-1, SAE J1772, and ISO 15118
For AC GB/T: GB/T 18487.1, GB/T 20234.2, GB/T 34657.1, and GB/T 34657.2
For DC-CCS COMBO 1+COMBO 2: IEC 61851-1, SAE J1772, DIN 70121, and ISO 15118.

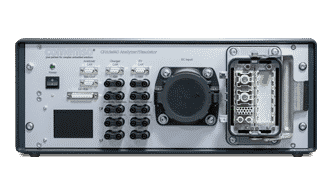

The electric vehicle charging analyzer CHAdeMO conducts in-depth analysis of the CHAdeMO standard, allowing you to check interoperability and whether it fully complies with the standard. By using intermediary settings or simulating electric vehicles or electric vehicle power supply equipment, all CHAdeMO versions can be tested, even including V2H charging.
CHAdeMO standards: 0.9.1, 1.0, 1.0.1, 1.1, 1.2, and 2.0.
Through in-depth analysis of the DC GB/T standard, the electric vehicle charging analyzer DC China can be used for intermediary settings, as well as for simulating electric vehicles or electric vehicle power supply equipment, for development and full standard compliance testing. This is the ideal device to enhance your product and prepare your equipment for certification and on-site interoperability.
GB/T DC (China) - Standard: GB/T 27930-2011; GB/T 27930-2015 and GB/T 18487.1-2015.
1. Vehicle development enterprise
(1) Using EVCA to simulate charging stations, according to our own factory standards, we simulate abnormal signals and design electric vehicles that meet the standards to comply with various charging stations on the market
(2) Use EVCA to test electric vehicles for compliance with local standards
(3) Using EVCA in conjunction with electric vehicles/charging stations to achieve full name detection of the charging process
2. Charging station equipment enterprise
(1) Using EVCA to simulate charging stations, according to our own factory standards, we simulate abnormal signals and design electric vehicles that meet the standards to comply with various charging stations on the market
(2) Use EVCA to test electric vehicles for compliance with local standards
(3) Using EVCA in conjunction with electric vehicles/charging stations to achieve full name detection of the charging process
3. Third party testing agency
(1) Use EVCA to test whether charging stations comply with local standards
(2) Discovering issues during the charging process using EVCA and providing improvement suggestions and methods to the inspection unit
For more information, please contact us.
