IoTecha HomePlug GreenPHY+V2G protocol analyzer is suitable for ISO/IEC 15118-2 and 15118-20 V2G, and can use packet capture and protocol analysis to conduct in-depth analysis of V2G communication. It is widely used by leaders in the electric vehicle industry for interoperability testing of ISO/IEC 15118, which is the core communication protocol used in the Combined Charging System (CCS). The Pilot Shark V2G option enables complete decoding and display of V2G EXI encoded data.
Support non-invasive capture of HPGP (HomePlug GreenPHY) signals
Support simultaneous capture of output: display low-level HPGP MPDU (frames transmitted on PLC
Support simultaneous capture of output: decryption/reassembly of secondary traffic and reverse referencing of secondary frames to physical layer frames
Support enhanced SLAC protocol analysis: Expert analysis of SLAC messages modified by NMK, enabling sniffers to understand HPGP key changes and capture the resulting PHY encrypted exchanges.

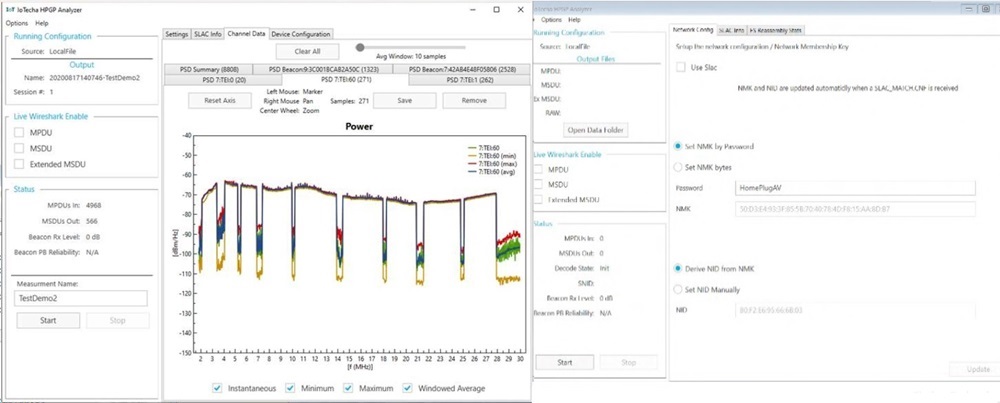

Support enhanced SLAC protocol analysis: PLC signal level measurement can be performed on all received data packets containing ROBO modulation payloads, allowing external verification of SLAC power level data. This mode is also useful in development, as it ensures correct PSD and diagnoses communication issues. (This will be enabled in future software updates)

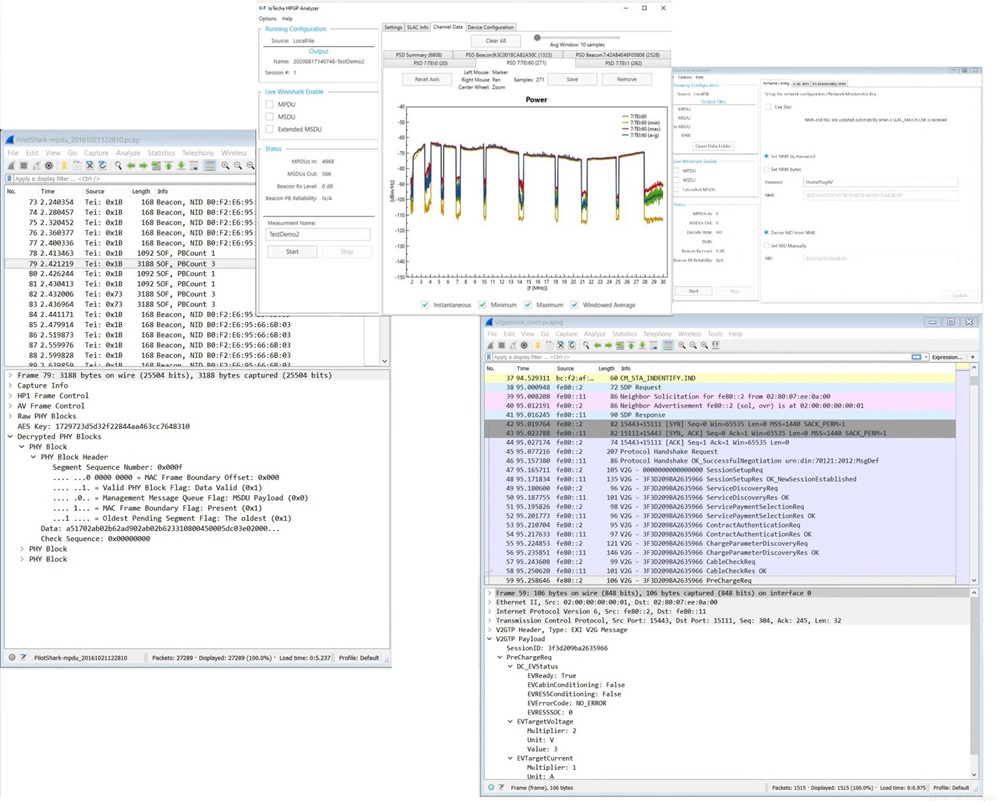

Support data visualization and decoding in Wireshark: a plugin for decoding HPGP MPDU messages; Allow the use of standard Wireshark packet parsers and filters for decoding and displaying reassembled MSDU traffic; The PilotShark V2G option enables complete decoding and display of V2G EXI encoded data. Simultaneously capture output
IoTecha HomePlug GreenPHY+V2G analyzer is suitable for ISO/IEC 15118-2 and 15118-20 V2G, and can perform in-depth analysis of HPGP and V2G communication using packet capture and protocol analysis. It is widely used by leaders in the electric vehicle industry for interoperability testing of ISO/IEC 15118, which is the core communication protocol used in the Combined Charging System (CCS). The Pilot Shark V2G option enables complete decoding and display of V2G EXI encoded data.
The HomePlug GreenPHY analyzer is a widely recognized tool in the market for non-invasive protocol analysis, capable of displaying underlying HomePlug GreenPHY MPDUs (frames transmitted over pilot lines using power line communication) and decrypted/reassembled Level 2 protocols.

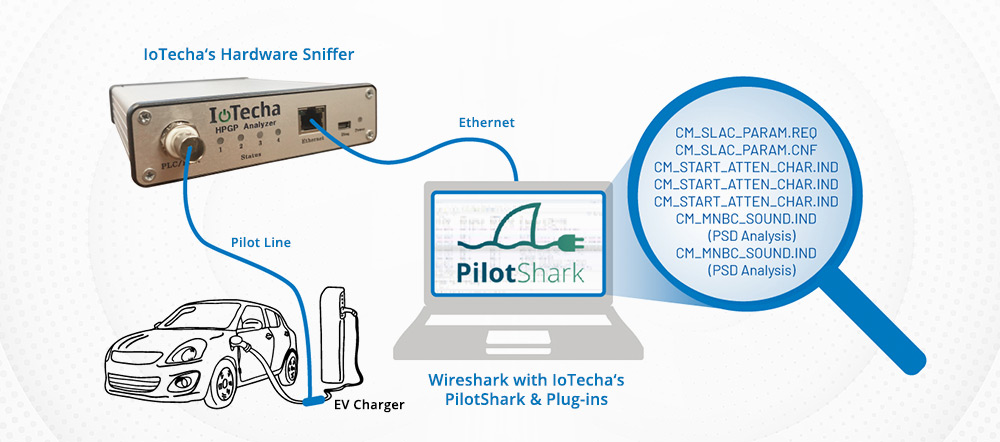

Non invasive packet capture means that there are no "man in the middle" devices. Direct communication between EV and EVSE. The signal attenuation between electric vehicles and electric vehicle power supply equipment has little impact. The result is simple, using the IoTecha HomePlug GreenPHY+V2G protocol analyzer, you can see the real picture and discover issues related to signal attenuation and noise at resolutions as low as MPDU level.
Support non-invasive capture of HPGP (HomePlug GreenPHY) signals
Support simultaneous capture of output: display low-level HPGP MPDU (frames transmitted on PLC)
Support simultaneous capture of output: decryption/reassembly of secondary traffic and reverse referencing of secondary frames to physical layer frames.
Support enhanced SLAC protocol analysis: Expert analysis of SLAC messages modified by NMK, enabling sniffers to understand HPGP key changes and capture the resulting PHY encrypted exchanges.
Support enhanced SLAC protocol analysis: PLC signal level measurement can be performed on all received data packets containing ROBO modulation payloads, allowing external verification of SLAC power level data. This mode is also useful in development, as it ensures correct PSD and diagnoses communication issues. (This will be enabled in future software updates).

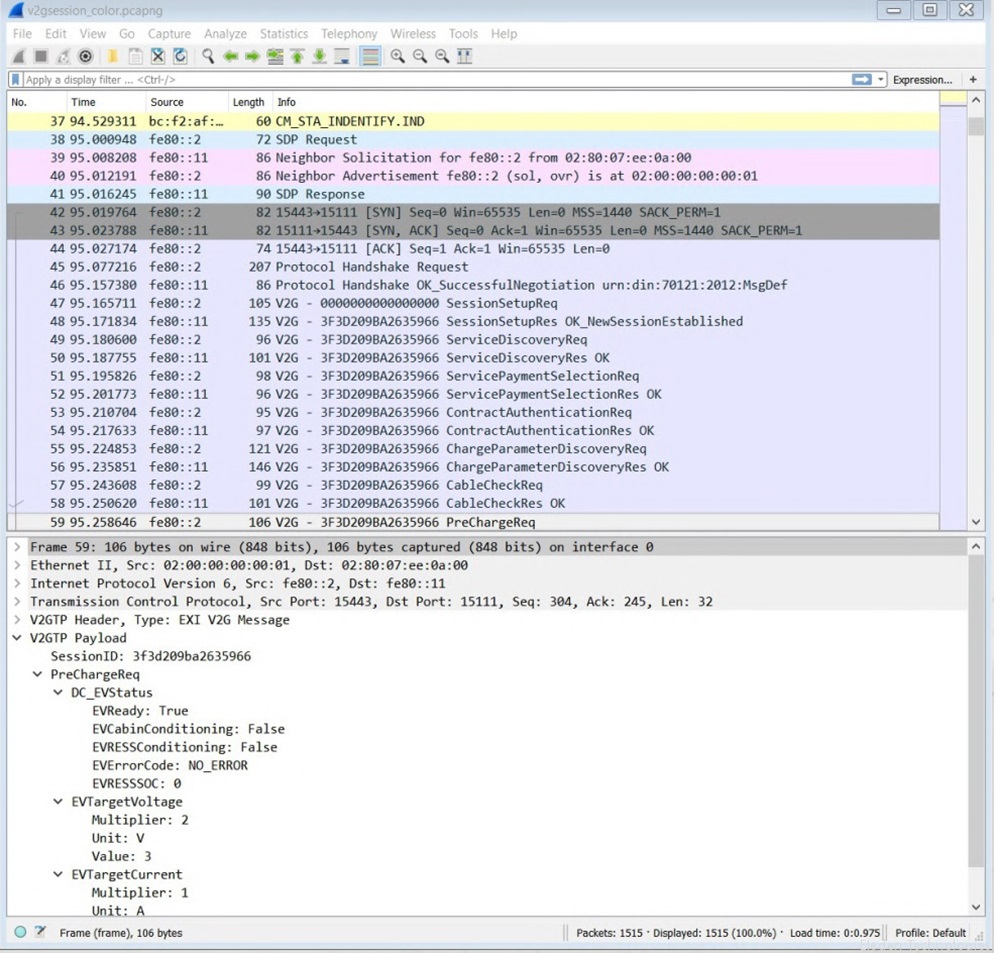

Support data visualization and decoding in Wireshark: a plugin for decoding HPGP MPDU messages; Allow the use of standard Wireshark packet parsers and filters for decoding and displaying reassembled MSDU traffic; The PilotShark V2G option enables complete decoding and display of V2G EXI encoded data. Simultaneously capture output
For more information, please contact us.
Current Products:HomePlug GreenPHY+V2G Protocol Analyzer
