EMV Personalisation Validation Tool CPT 3000v3CL: Speeds up development and payment scheme certification and enables quality control for issuing valid EMV cards.
Quickly tests that data on the chip and magnetic stripe are correct and valid according to issuer profiles and a l major payment scheme specifications.
Supports a l payment devices: contact and contactless cards, mobile phones, tokens.
Developed in co laboration with Visa and Mastercard, and used by Visa, Mastercard, American Express, Discover, JCB, major banks and card bureaus globally.
Essential in a l EMV chip card issuing, personalisation, implementation and support operations.
EMV Personalisation Validation Tool CPT 3000v3CL: Speeds up development and payment scheme certification and enables quality control for issuing valid EMV cards
To achieve payment scheme certification, card issuers must ensure their cards comply with their chosen payment scheme’s personalisation requirements.
To prevent the costly production of invalid EMV cards and delays in the formal card personalisation process required by the payment schemes, the Barnes EMV Personalisation Validation Tool enables issuers to validate and pre-certify their cards against the latest payment scheme requirements, as we l as their own business requirements.

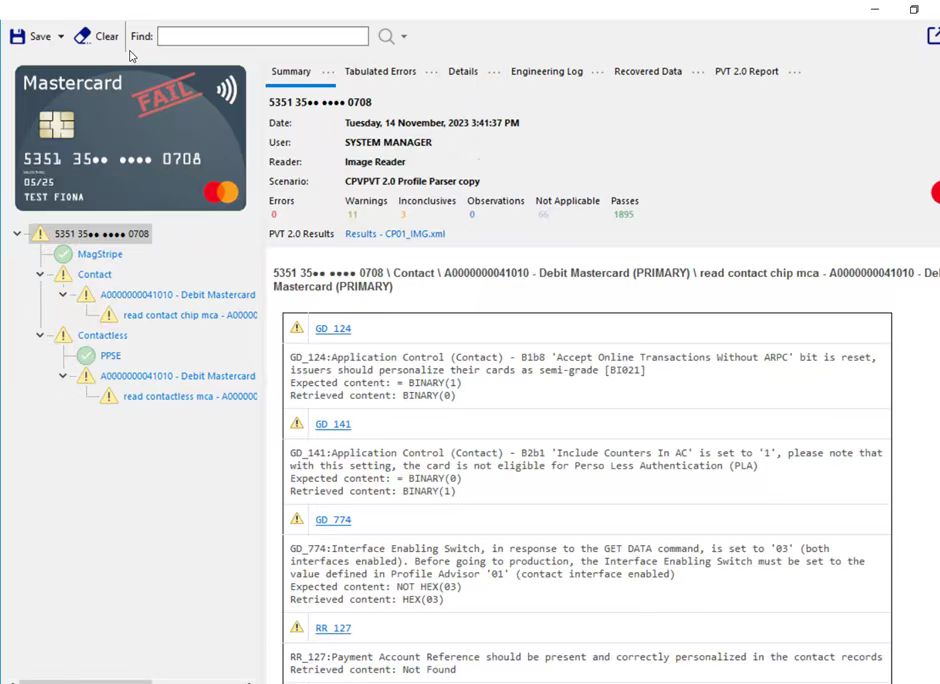

Supported Mastercard CPV PVT2.0 Specifications:
MM/Chip Advance Card Application Specification v1.1, 1.2.1, 1.2.2, 1.2.3
M/Chip Requirements for Contact and Contactless April 2023
M/Chip Personalization Data Specifications for Contact and Contactless - March 2023
M/Chip Advance 1.2.3 Biometric Card Application Specification-August 2022 MCBP 2.0 and 2.1.
Mcda:
Card Requirements for China v2.2 - final.pdf v2.2 (November 2020)
China Market Personalization Profiles - v2.2 - final.pdf v2.2 (November 2020)

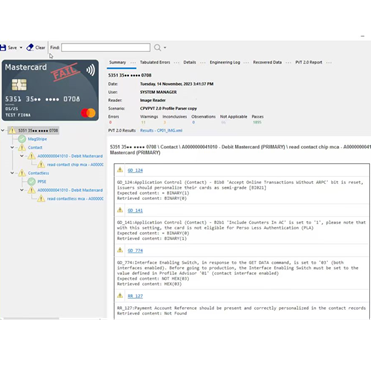

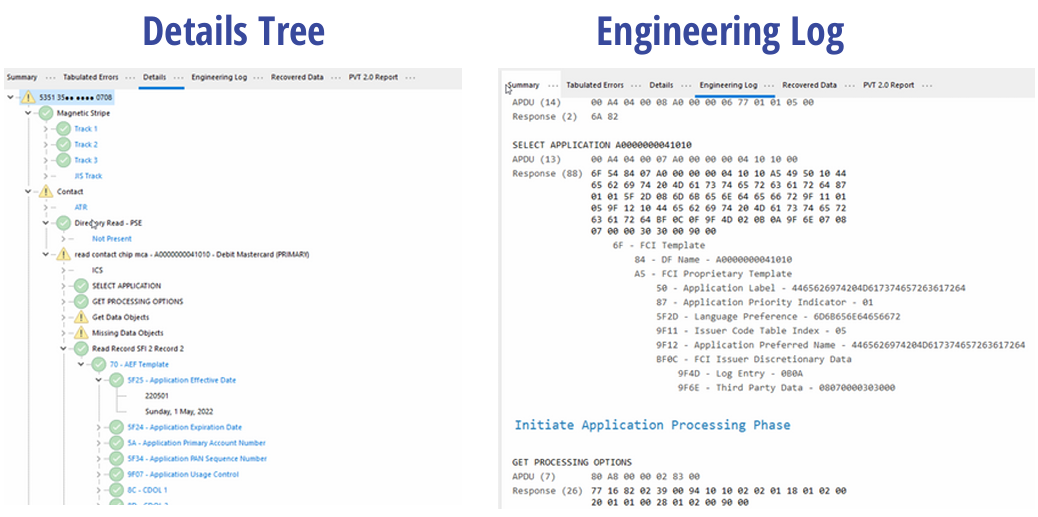

Tabs provide access to Details Tree, Engineering Log and Test Report. The detailed Results Tree and Engineering Log enable analysis and clear guidance for all levels of user.

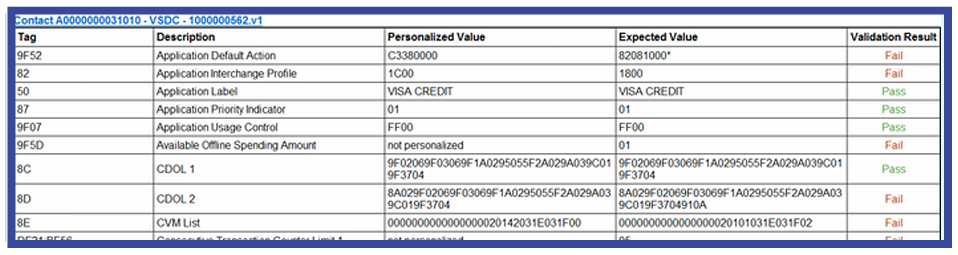

A full Test Report detailing the tests carried out and more in-depth detail on the errors, observations and warnings, plus the ICS selection used and a list of all the tests performed.
Supported VISA Specifications:
Visa Integrated Circuit Card Specification (VIS)
VIS 1.4.1, VIS 1.5.x,VIS 1.6.x
Visa Contactless Payment Specification (VCPS)
VCPS 1.4.2, VCPS 2.0.1, VCPS 2.0.2, VCPS 2.1.x, VCPS 2.2.x
Visa Mobile Contactless Payment Specifications (VMCPS) VMCPS 1.4.x
Visa Applet Versions: VSDC 2.7.1, 2.8.x & 2.9.x Visa Mobile Payment Application : VMPA 1.4.x

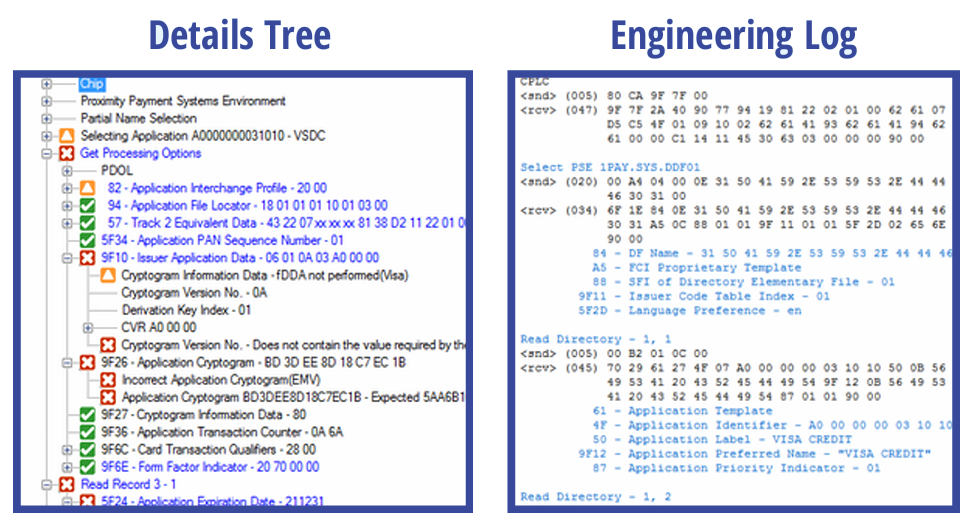

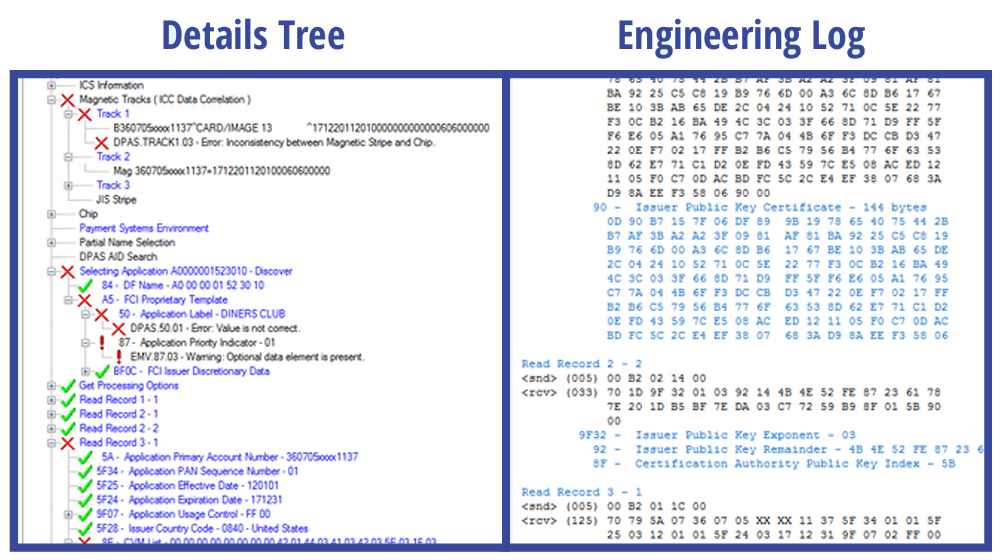

Tabs provide access to Details Tree, Engineering Log and Test Report. The detailed Results Tree and Engineering Log enable analysis and clear guidance for all levels of user.

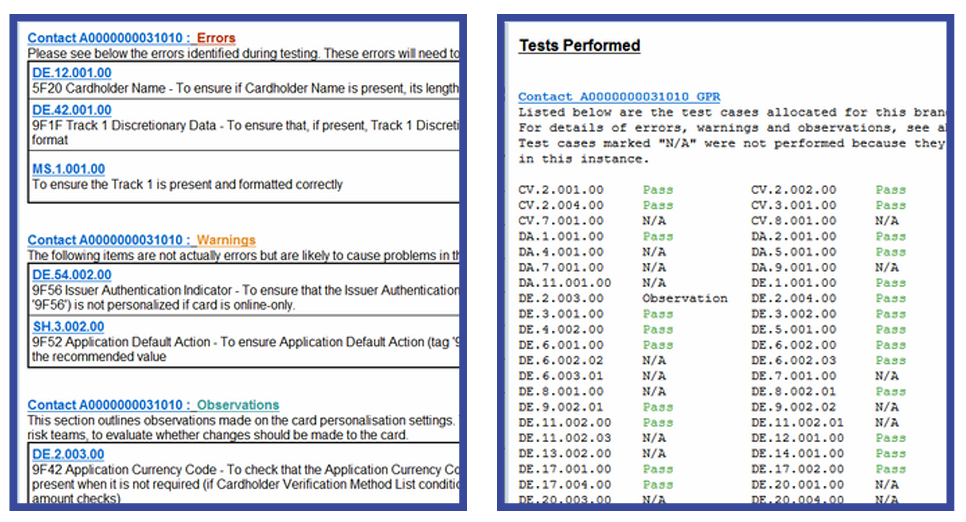

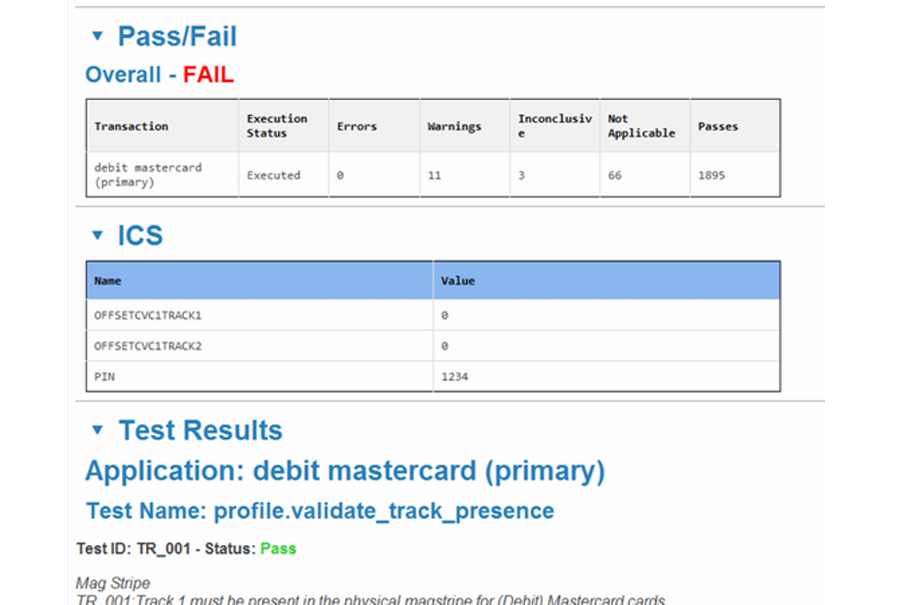

A full Test Report detailing the tests carried out and more in-depth detail on the errors, observations and warnings, plus the ICS selection used and a list of all the tests performed.
Supported DISCOVER Specifications:
Contact D-PAS Chip Card Personalization Validation Rules v1.0
D-PAS Connect v2.0
Contactless D-PAS Chip Card Personalization Validation Rules v1.0 April 2015
US Common Debit Application Validation Rules v0.2 Jan 2016
Tabs provide access to Details Tree, Engineering Log and Test Report. The detailed Results Tree and Engineering Log enable analysis and clear guidance for all levels of user.
A full Test Report detailing the tests carried out and more in-depth detail on the errors, observations and warnings, plus the ICS selection used and a list of all the tests performed.

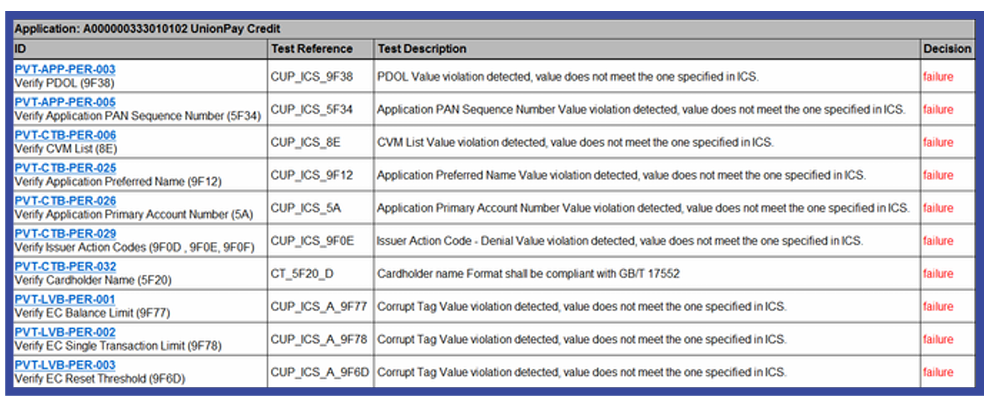

Supported China UnionPay Specifications:
China Union Q/CUP 045.1—2021 China UnionPay IC Card Technical Specifications Basic Specifications Part 2 Debit/Credit Card Specifications
Q/CUP 045.5—2021 China UnionPay IC Card Technical Specifications Basic Specifications Part 5 Contactless IC Card Payment Specifications
Q/CUP 046.1—2021 China UnionPay IC Card Technical Specifications Auxiliary Specifications Part 1 Debit/Credit Application Personalization Template
Q/CUP 046.5—2021 China UnionPay IC Card Technical Specifications Auxiliary Specifications Part 5 Debit/Credit Application Personalization GuidePay Certification

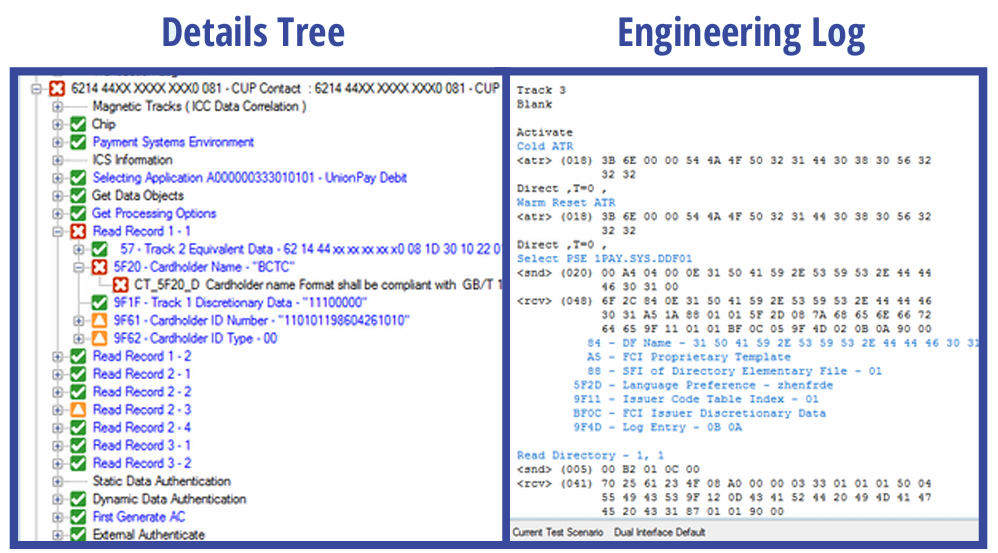

Tabs provide access to Details Tree, Engineering Log and Test Report. The detailed Results Tree and Engineering Log enable analysis and clear guidance for all levels of user.
A full Test Report detailing the tests carried out and more in-depth detail on the errors, observations and warnings, plus the ICS selection used and a list of all the tests performed.
• Quickly tests that data on the chip and magnetic stripe are correct and valid according to issuer profiles and a l major payment scheme specifications.
• Supports a l payment devices: contact and contactless cards, mobile phones, tokens.
• Developed in co laboration with Visa and Mastercard, and used by Visa, Mastercard, American Express, Discover, JCB, major banks and card bureaus globally.
• Essential in a l EMV chip card issuing, personalisation, implementation and support operations.
American Express
ATH
Afrigo
BancNet
BKM Troy
Credibanco
China UnionPay & F-CUP
Discover D-PAS 1.1 CPV
Discover D-PAS Connect 2.1 CPV
Discover D-PAS Mobile
EBC
Eftpos (CPC)
Eftpos (Mobile)
GIE CB & CPACE
GIMAC
Interac
Jaywan
J/Smart 2 & F-JCB -2
J/Smart 3 & F-JCB 3
JCB HPA
Mada-legacy / Pure
Mastercard CPV
Mastercard NCMC Certification
MCCS
NETS PVT
NETS Wise RSA
NSICCS
PayPak
PBOC
PURE QC
RuPay PVT / qSparc
RuPay DFS DI / D-PAS Connect
SERMEPA Advantis
TakaPay
Troy BKM
TWIN
Verve WLA / Pure
Visa GPR PVT, Visa Global &
Europe PVT (Self- Service)
• Multiple Application Tests
In a single card insertion, the tool confirms the data on the chip and magnetic stripe is correct and valid according to the issuer profile. The card account number and issue / expiry dates are displayed for visual verification of the card embossing indent print. Optionally, the card livery can be displayed to verify the correct card stock has been used.
• Multi-level User Interface

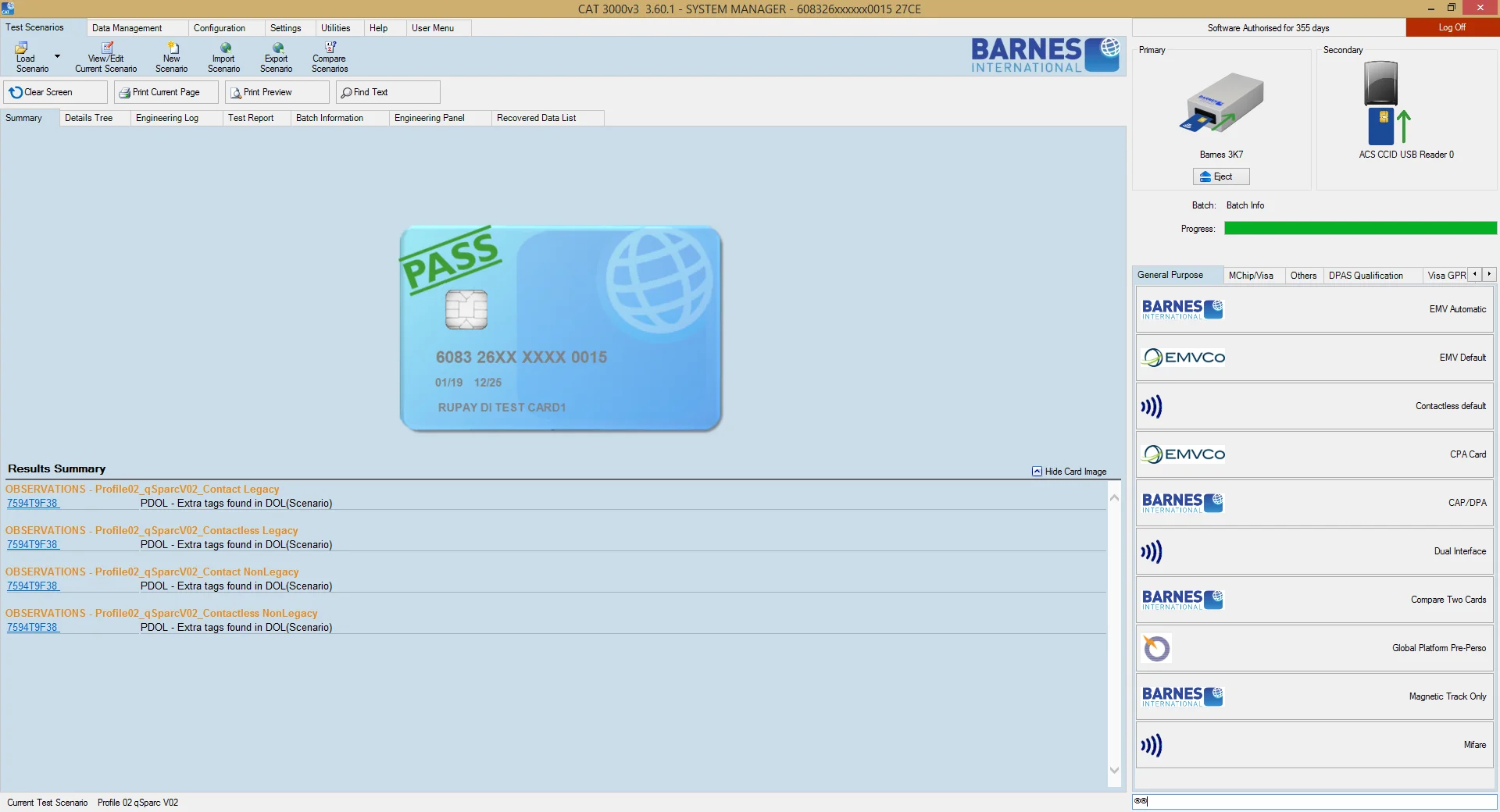

The tool is designed to be easy to use for both the non-technical operator and at the same time provides detailed technical information for IT and engineering staff. Production control features include User Access Control, Batch Test and Event Logging, which are supplemented with intuitive data element displays for problem solving and data analysis.
• Powerful Diagnostic Tools

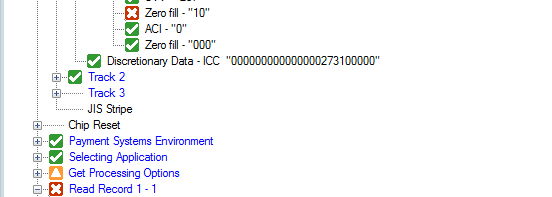

Data displays include Card Test Result Summary; Detailed Test Result Tree and Full Engineering Log. Hyperlinks between the various levels of displays and directly to the EMV and payment scheme specification references allow the user to quickly identify and diagnose problems.
• PCI Security
PCI compliant masking, log-out and user controls enable full control of personal cardholder data on screen and in reports.
• Remote Testing
Issuers and scheme authorities can securely evaluate and approve cards remotely, eliminating the costs and delays of sending sample cards around the world.
• Adaptable Test Scenarios and Scripts
Users can easily define “QuickTest” profiles to test their own chip data requirements, in line with, or in place of, payment scheme requirements. Test scripts are not restricted to EMV; other types of smart card application can also be tested, for example payment, security and loyalty applications.
• Cryptographic Authentication
The tool can validate RSA / ECC Public Key certificates (ODA) including Static (SDA), Dynamic (DDA). Combined (CDA) data authentication and Offline Dynamic Data Authentication Using ECC (XDA) in offline transactions and can perform symmetric key validation using AES / DES algorithms for host communication.
• Key Management
Complete with a comprehensive set of Visa, Mastercard, JCB and Discover public keys. Additional keys can be imported through a key management system.
• Network Capability
The tool can be used in a networked environment with individualised user access levels and settings.All test scripts, scenarios, standard profiles, public keys and reporting for multiple tools can be managed centrally, ensuring consistency across all units.
• Contactless Testing - CPT 3000v3CL
Validates contactless cards and ensures that dual interface cards deliver consistent information over both interfaces. Validates mobile payment data over NFC.
• Host Simulation Module
Adds the ability to verify secret keys either in software or with the optional Hardware Security Module connectivity.
• Payment Scheme Certification Test Modules
Allow certification tests to be performed to accelerate payment scheme approval.
Softwares
• OS: Windows 10 & 11 (32-bit & 64-bit)
Card Readers

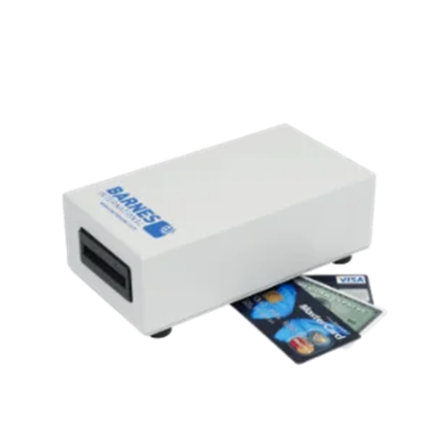

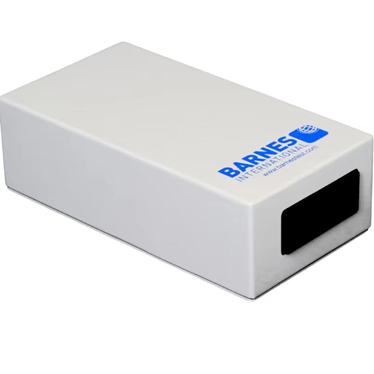

• Barnes 3K7 Triple Interface reader (Mag Stripe, Contact and Contactless chip)
• Barnes 3R1 reader is available for reading metal / titanium cards
• Barnes 60H Batch reader
• Barnes 3K6 Card reader (Magnetic Stripe/ JIS Stripe/ Contact Chip)
• PC/SC reader
Barnes is the chosen test tool of Banks & Issuers, Card Manufacturers, Personalisation Bureaus and Test Laboratories worldwide.
• Business Agility
Barnes test tools are easy to use by both technical and non-technical users, and speed up card development and payment scheme certification.
• Cost Elimination
The high business costs and wasted resources of producing and issuing invalid cards are eliminated.
• Risk Reduction
The reputational risk of issuing invalid EMV cards to end customers is reduced.
• Future Proofed
Barnes works in partnership with all major payment schemes. As scheme rules evolve, Barnes rapidly makes updated test script packs available to customers via the Barnes website.
• Service Excellence
Our clients have every confidence that, whatever their test requirement, the Barnes team is always on hand to deliver expert advice and fast support.
