Keolabs provides an E-Passport contactless test solution that meets the requirements of the International Civil Aviation Organization's(ICAO) electronic passport. It supports RF and protocol layer testing for the ICAO E-Passport, meets new ICAO regulations, and has been authorized by the ICAO organization.
The ICAO testing system provides the following testing suites:
ISO 18745-2 eMRTD PCD Digital test suite
KEOLABS provides off-the shelf solutions to verify conformity of international electronic passport such as eDriving License or Identity cards, from the durability tests until the application part.
The International Civil Aviation Organization’s (ICAO) standard is the international testing standard for validating electronic Machine Readable Travel Documents (eMRTD) implementing the ISO/IEC 18745-2 testing standard protocol in 13.56 MHz contactless communications. It is the foundation for ensuring the durability, reliability between an epassport and a border control. KEOLABS' eMRTD Testing Solution are SCRIPTIS-based solution that are available to users for《in house》evaluation of their products during development before engaging in a formal certification. KEOLABS provide eDriving license and Identity Card Testing solution based on the latest ISO/IEC 10373-6 testing standard for the analog & digital tests and based on ISO/IEC 18013-4 and IAS ECC/EAC V2 test specifications.
• ICAO e-passport Layer 1-2 Analog
• ICAO e-passport Layer 3-4 Digital
• ICAO e-passport Layer 6-7 Application

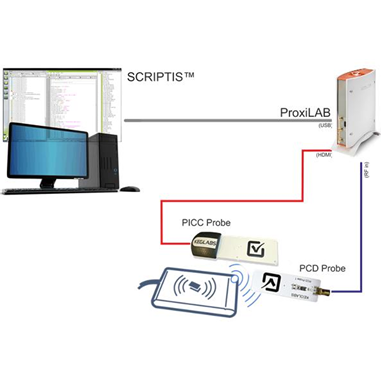

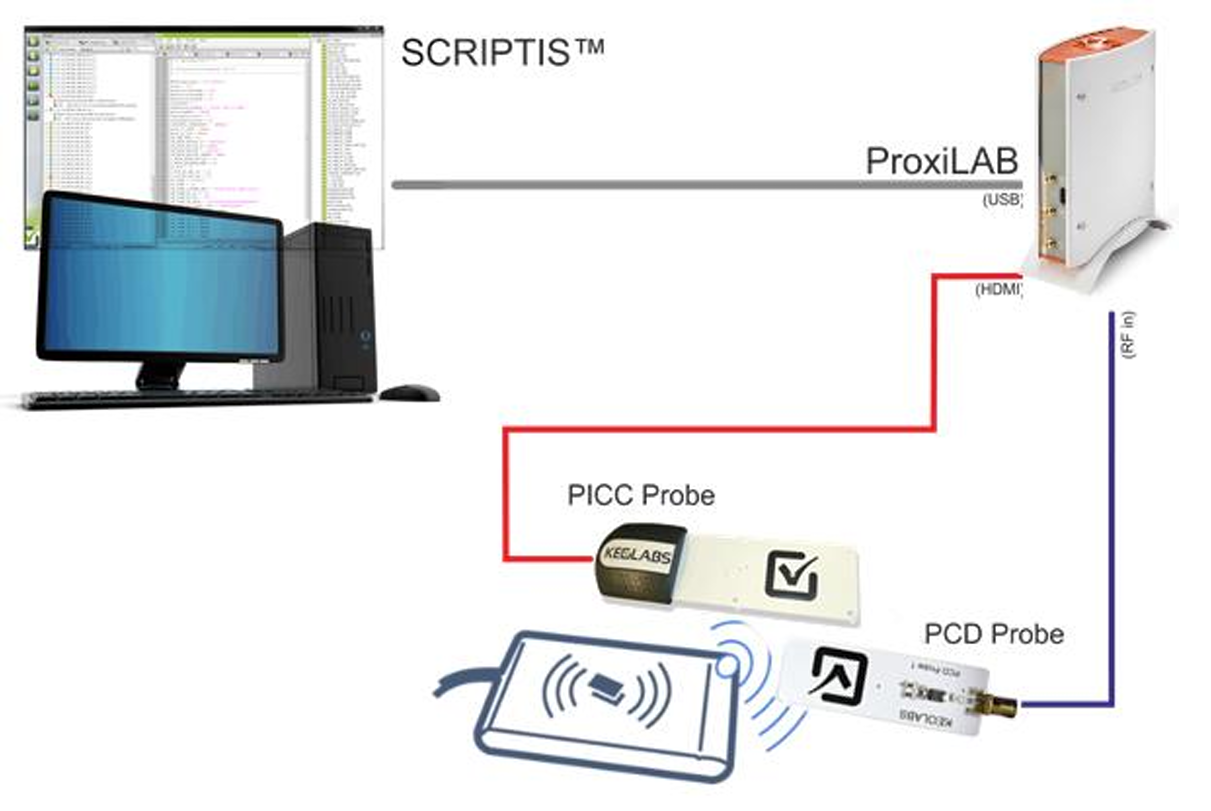

1 SCRIPTIS™ Test Environment
1 ISO 18745-2 eMRTD PCD Digital test suite
1 ProxiLAB QUEST tester with PICC Analog and Digital (PICC VHBR optional)
This PICC Analog test suite is compatible with the following standard: ISO/IEC 18745-2:2016 standard
Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 18745-2:2016 standard):
Type A specific tests:
• §H.2.2 - Request Guard Time
• §H.2.3 - Handling of bit collision during ATQA
• §H.2.4 - Handling of anti-collision loop
• §H.2.5 - Handling of RATS and ATS
• §H.2.6 - Handling of PPS response
• §H.2.7 - Frame size selection mechanism
• §H.2.8 - Handling of Start-up Frame Guard Time
• §H.2.9 - Handling of the CID during activation by the PCD
Type B specific tests:
• §H.3.1 - I/O transmission timing
• §H.3.2 - Frame size selection mechanism
• §H.3.3 - Handling of the CID during activation by the PCD
Type A and Type B logical operations tests:
• §H.4.1 - Handling of the polling loop
• §H.4.2 - Reaction of the PCD to request for waiting time extension
• §H.4.3 - Error detection and recovery
• §H.4.4 - Handling of NAD during chaining
High bit rate selection tests:
• §I.2.1 – Procedure for Type A
• §I.2.2 – Procedure for Type B
• §I.2.3 – Procedure for bit rate selection using S(PARAMETERS) blocks

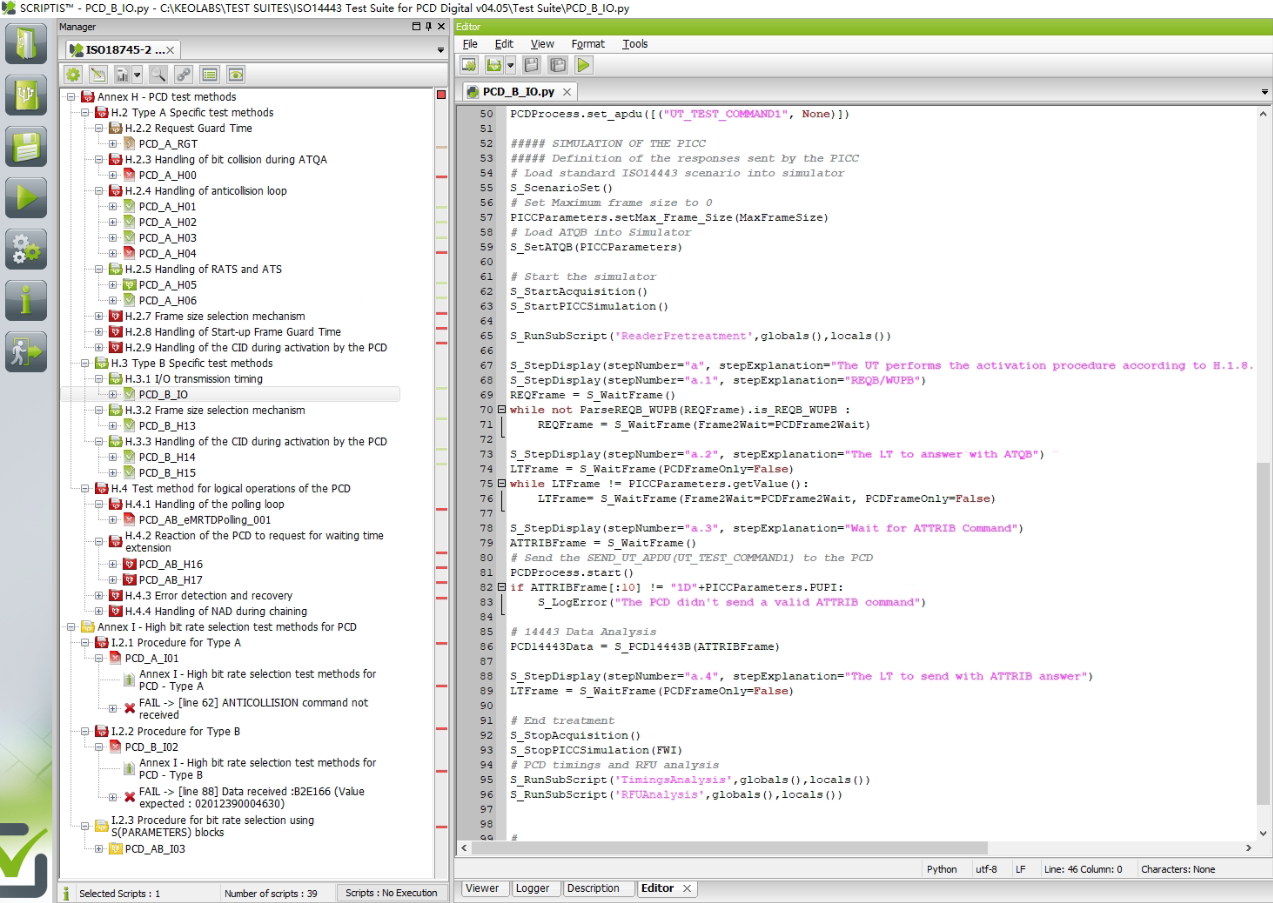

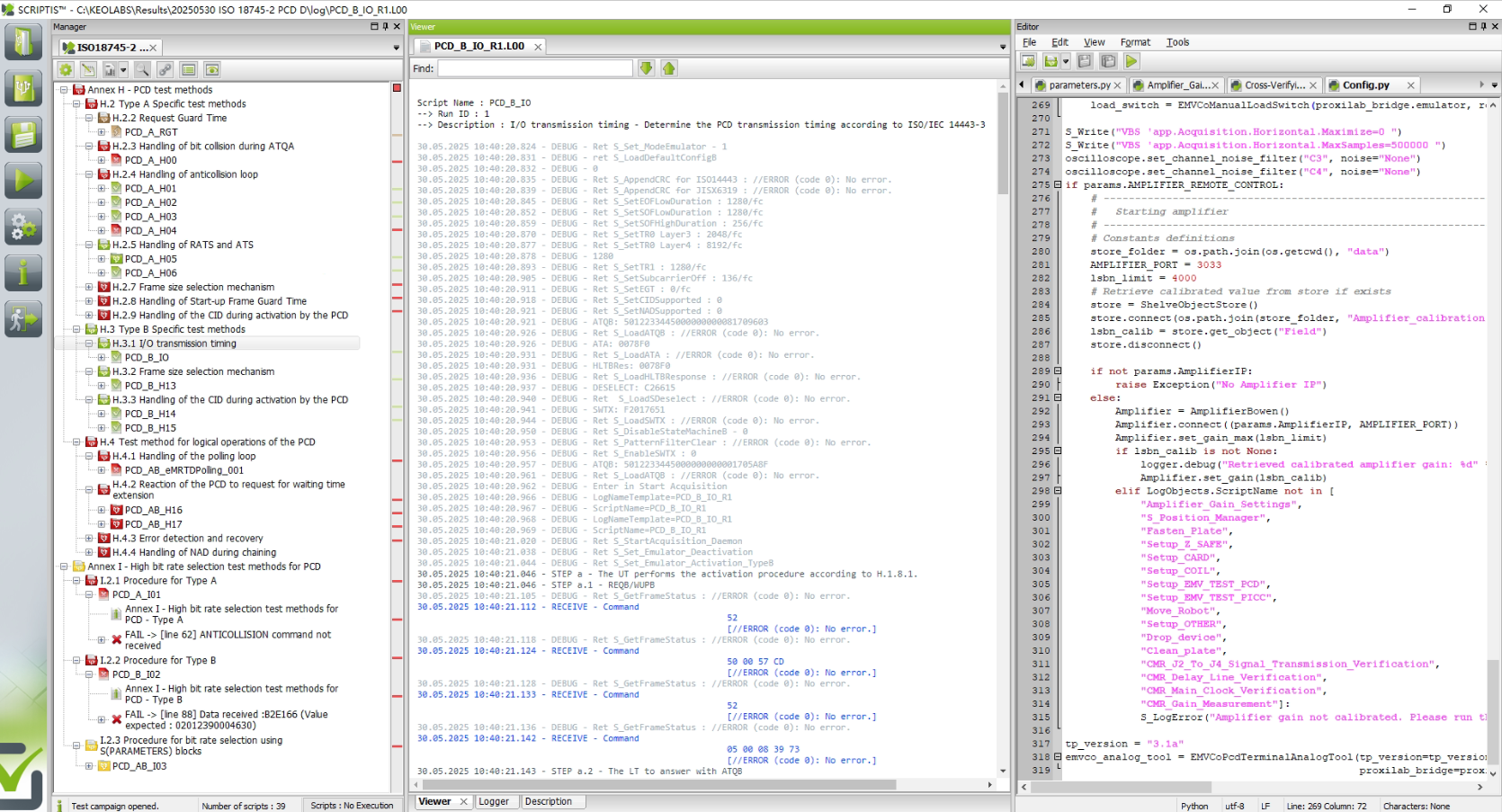

Scriptis supports Python editing and modifying scripts:

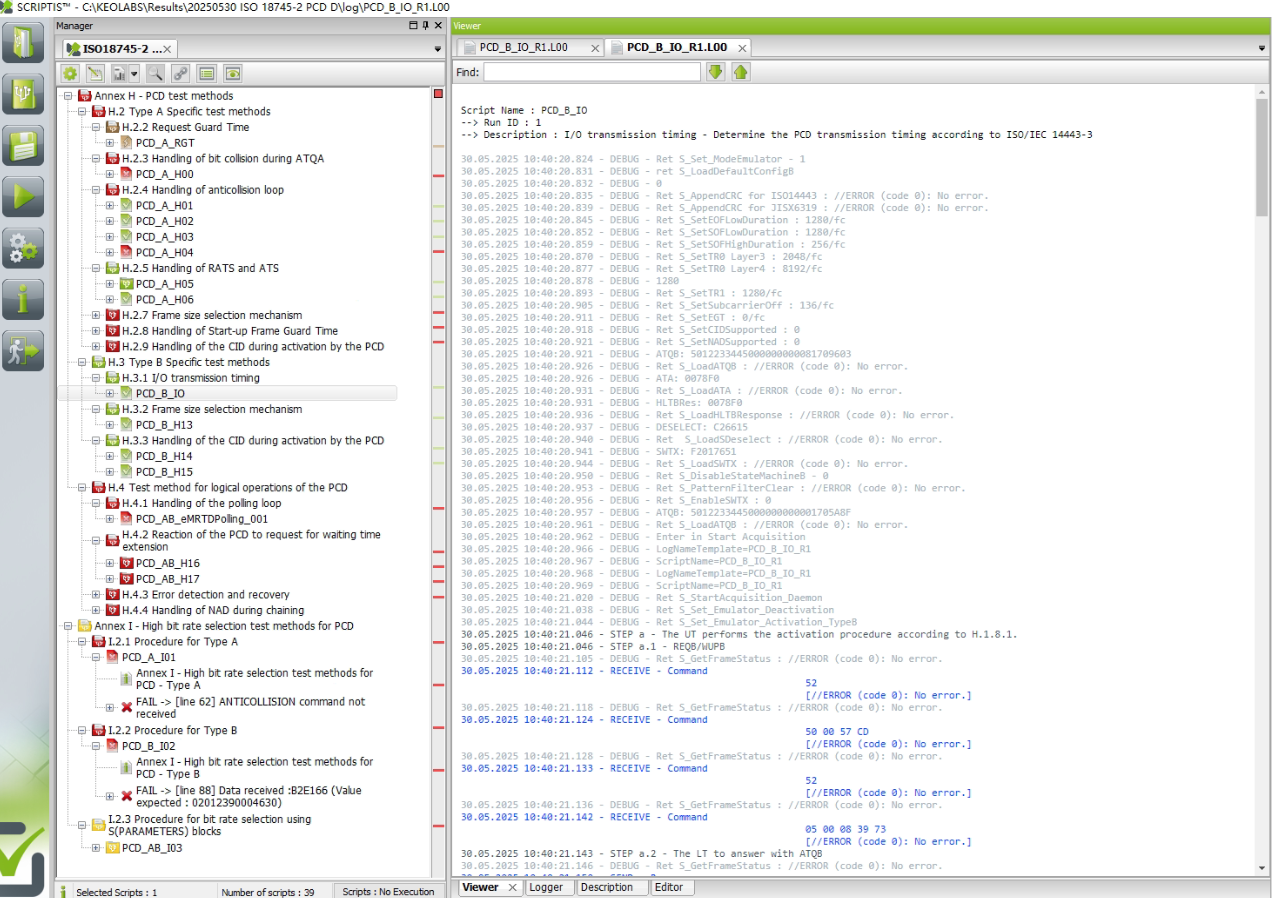

Scriptis saves test logs in TXT format:

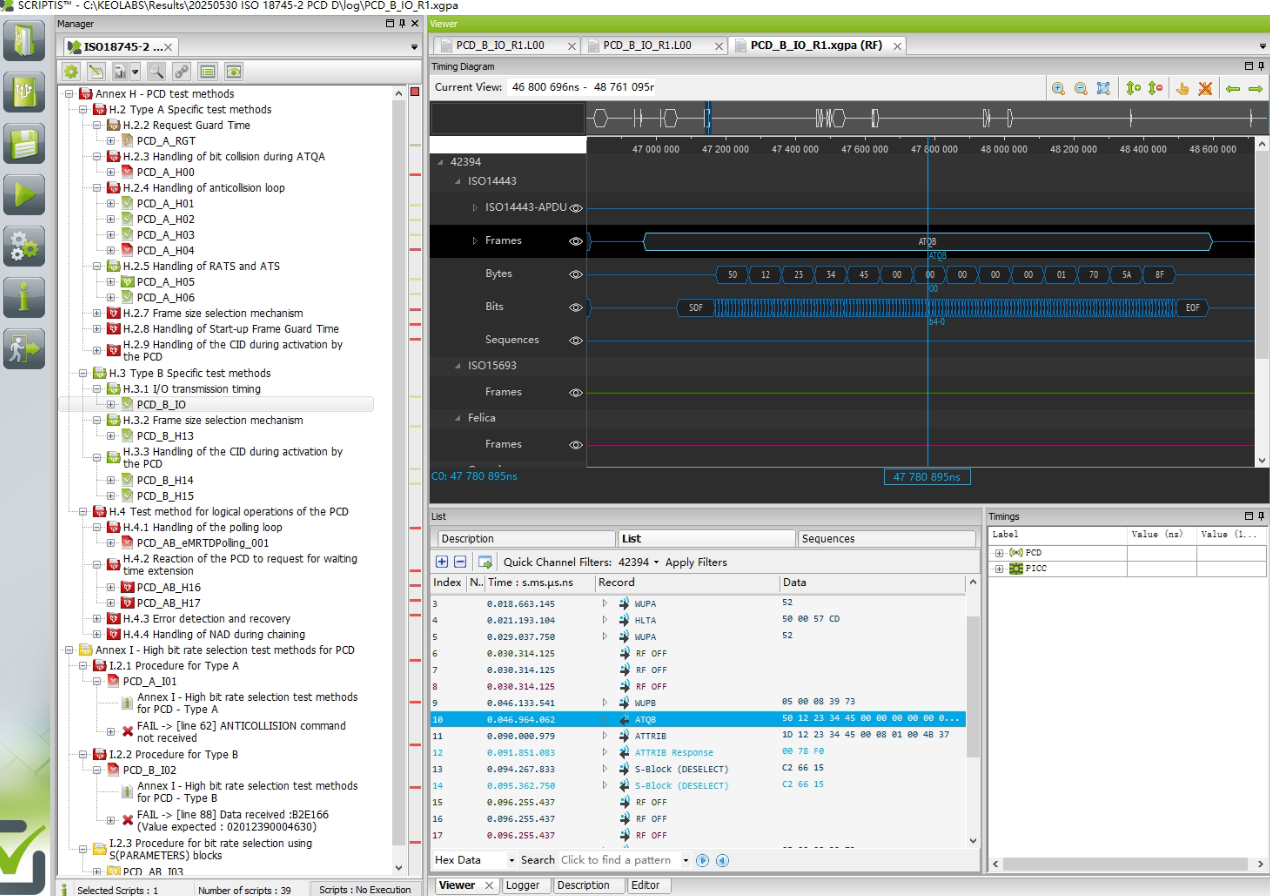

Scriptis saves test logs in xgpa format:

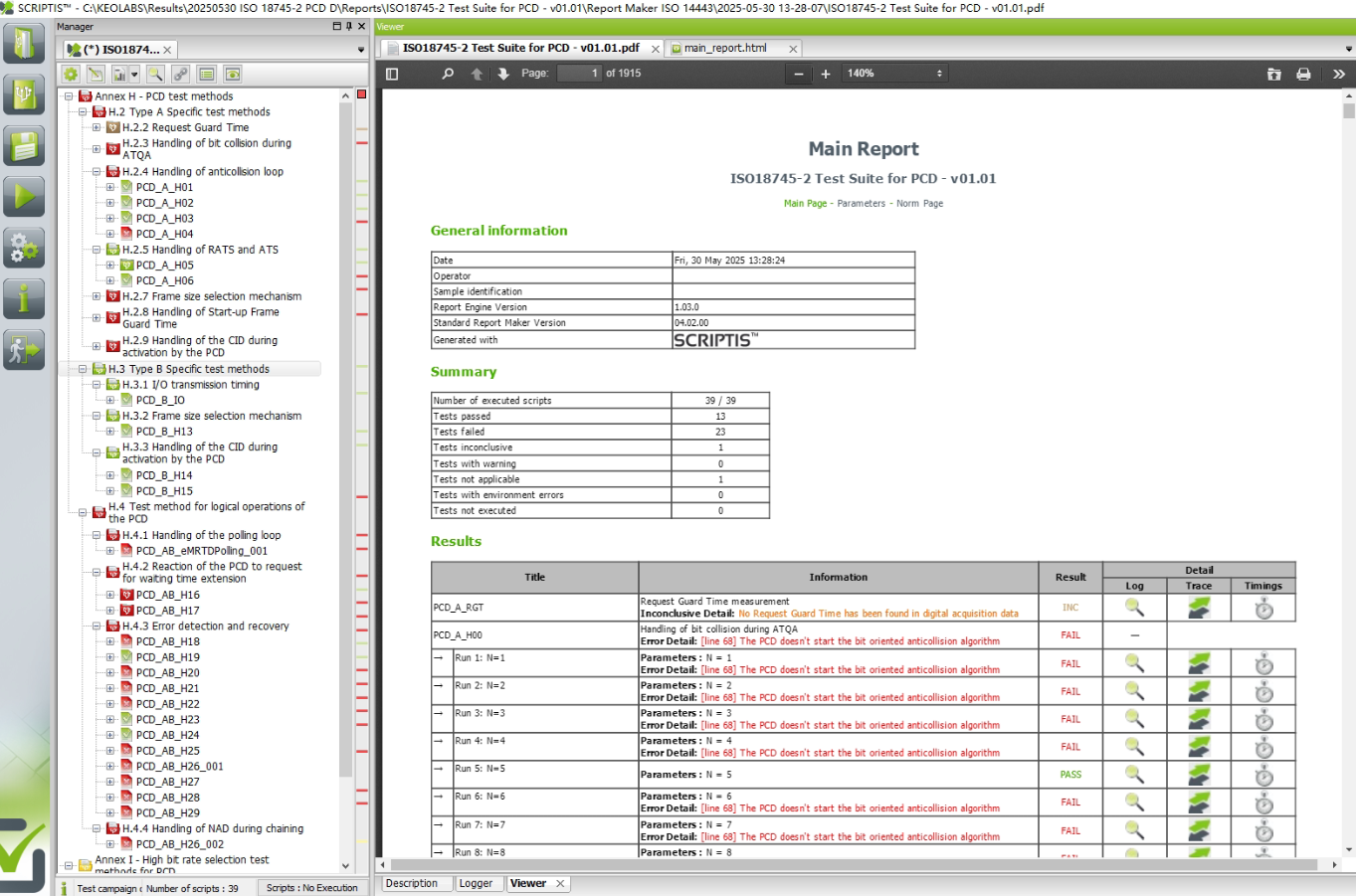

Scriptis supports exporting reports in PDF format:

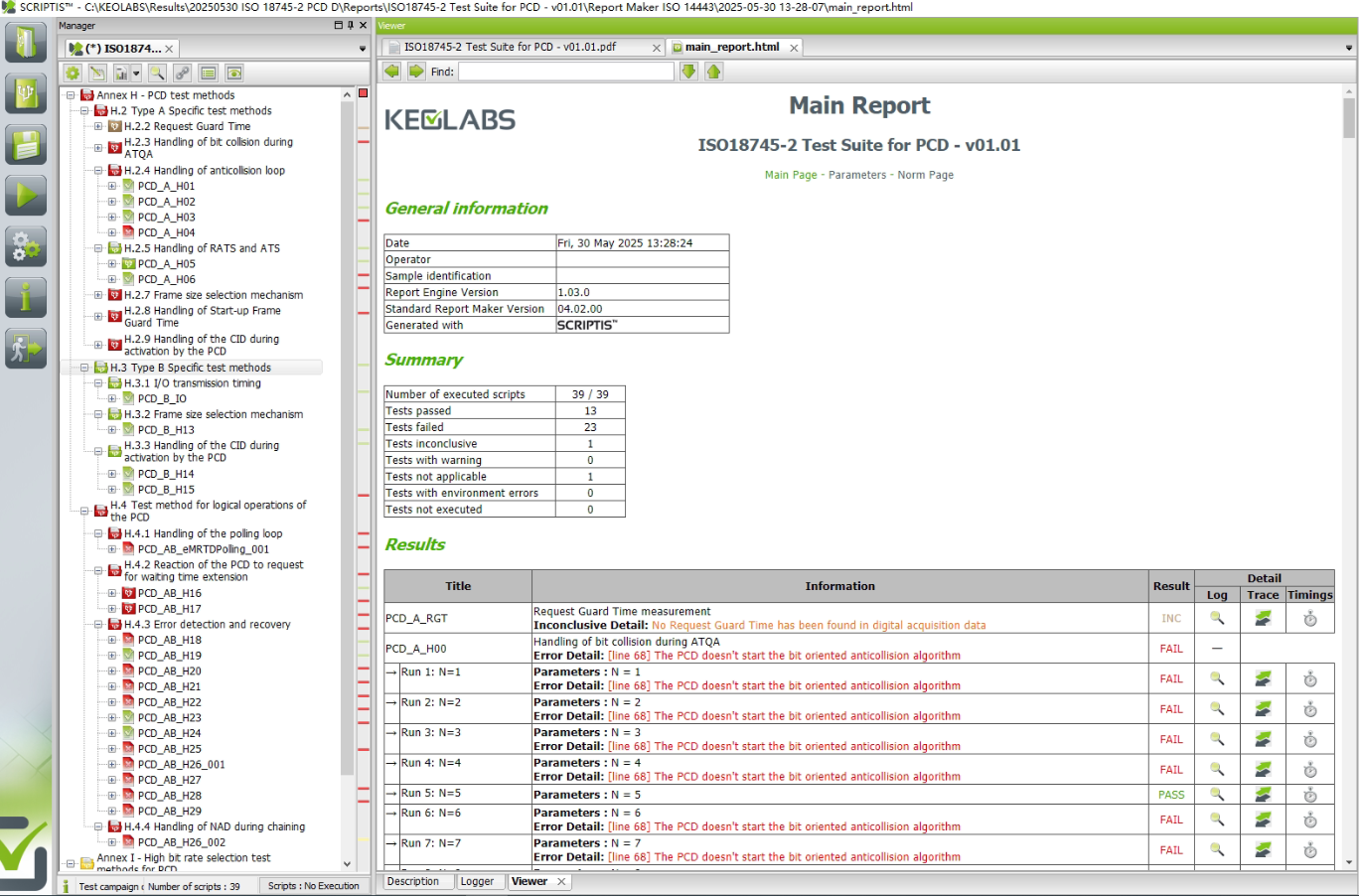

Scriptis supports exporting reports in html format:
The Keolabs Solution by ABE supports verifying the following standards:
• EMV® Type Approval - Contactless Terminal Level 1
• EMV® Type Approval - Contactless Card Level 1
• NFC Forum Test Cases for Analog and Digital Protocol
• ISO/IEC 10373-6 Test Methods
• ISO/IEC 18745-2 Test Methods for the contactless interface
• CEN/TS 16794-2:2017 Public transport - Communication between contactless readers and fare media - Part 2: Test plan for ISO/IEC 14443
KEOLABS provides a complete testing solution that supports internal validation of smart cards and card readers based on industry standards for specific application types, including:
• Payment: Qualified solution to verify you payment applications - Used by EMVCo Laboratories
EMVCo Level 1 PCD Analog Test Suite
EMVCo Level 1 PCD Digital Test Suite
EMVCo Level 1 Reduced Range Terminal Analog Test Suite
EMVCo Level 1 PICC Analog Test Suite
EMVCo Level 1 PICC Digital Test Suite
EMVCo Level 1 Mobile Analog Test Suite
• ePassport & eID Products: Solution to verify your Identity Applications - Used by National Printing Companies
ISO 10373-6/ISO 18745-2 PICC Analog Test Suite
ISO 10373-6/ISO 18745-2 PICC Digital Test Suite
ePassport-eMRTD Application Test Suite
eID - Application EAC V2 & IAS ECC Test suites
eDL - Application ISO 18013-4 Test suite
• Access Control, Transport & Smart Objects: Solution to verify your Transport or Access Control Applications - Used by transport operators
ISO 10373-6 PICC Analog Test Suite
ISO 10373-6 PICC Digital Test Suite
ISO 10373-6 PCD Analog Test Suite
ISO 10373-6 PCD Digital Test Suite
• Mobile, Automotive Makers: Qualified solution to Verify your NFC Applications - Used by Mobile or automotive Makers
NFC Forum Poller&Listener Analog Test Suite
NFC Forum Poller&Listener Digital Test Suite
NFC Forum LLCP/SNEP test suite(Initiator/Target)
