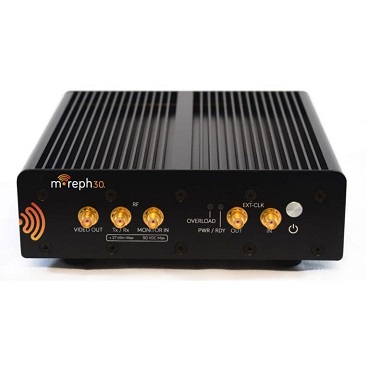

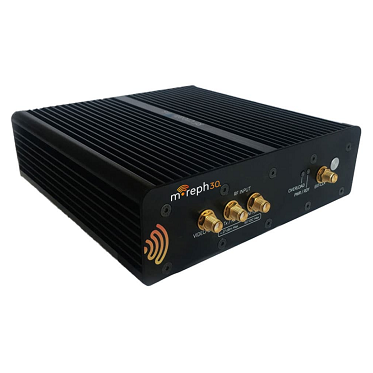

A wideband 2.4 GHz signal analyser and generator. Specifically designed for PHY Layer Testing. The moreph SDR at the core enables a 2 second booth time, a full bandwidth, high dynamic range transmitter and receiver, that can simultaneously RX/TX over the entire 2.4GHz ISM band. An integrated CW signal generator covering 25MHz to 6GHz ensures that you will not require any other test equipment! Upgrade moreph30 with any of our test and measurement options, evolve it into a protocol analyser with blueSPY, or get them all – the choice is yours.
A wideband 2.4 GHz signal analyser and generator. Specifically designed for PHY Layer Testing. The moreph SDR at the core enables a 2 second booth time, a full bandwidth, high dynamic range transmitter and receiver, that can simultaneously RX/TX over the entire 2.4GHz ISM band. An integrated CW signal generator covering 25MHz to 6GHz ensures that you will not require any other test equipment! Upgrade moreph30 with any of our test and measurement options, evolve it into a protocol analyser with blueSPY, or get them all – the choice is yours.
• BLE, BR/EDR, CS, 802.15.4 and proprietary PHY’s.
• Extensive coverage with no additional test equipment, USB, and Ethernet host interfaces.
• C/I, blocking & intermodulation signals generated internally.
• Accurate power control to -115dBm for coded PHY tests.
• Full support for in-band emissions.
• BT 6.1 AM ATTACK Tests
•Inline PCT Tests (Beta)
•Ultra-linear receiver and transmitter.
--Built-in 6GHz CW source.
•Simultaneous monitoring of all WIFI channels.
•Options for BR/EDR, BLE, QBHSL, IEEE 802.15.4 Channel Sounding (BETA) and customized PHY’s.
• 2 second boot time.
• In-band emissions test completes in 2.5ms.
• Rapid connection to device under test:
--Inquiry and page packets TX on multiple channels simultaneously.
--RX listens on all channels simultaneously.

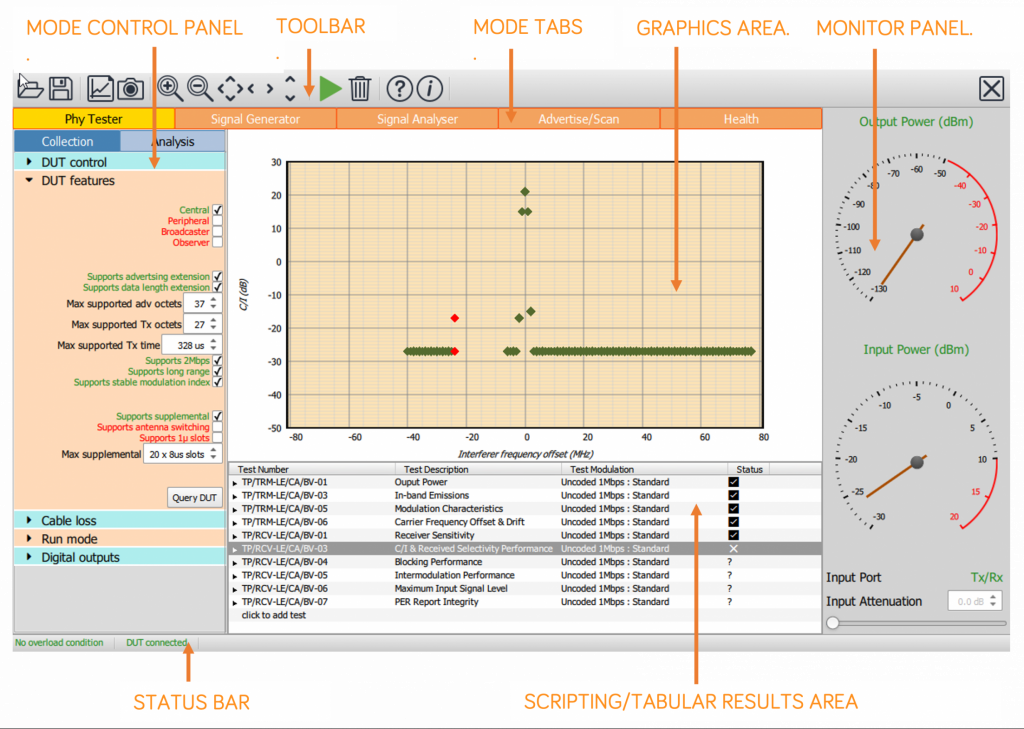

• Dedicated RF-PHY Applications.
• WiFi traffic generator.
• Record and Playback Application.
• Development and Production Test Options.
• blueSPY Protocol Analyser (Sniffer).
---Channel Sounding (CS) and HDT capture.
---16 Channel Logic Analysis.
• Bluetooth BR/EDR RF-PHY Tester (Development and Production Options).
• Bluetooth BLE RF-PHY Tester (Development and Production Options).
• Bluetooth Channel Sounding RF-PHY Tester.
• 802.15.4 RF Tester.
• Qualcomm QBHSL RF-PHY Tester.
• Bluetooth LE Advertise and scan simulator.
• WiFi traffic generator.
• blueSPY Protocol Analyser Options (Sniffer).
RFcreations is a core team of highly skilled and knowledgeable, professional engineers with decades of experience across the design and development of both RF and digital hardware, embedded, protocol stacks and UI software. Inclusive of production test for industry leading customers and partners. From semiconductors, through high-value consumer end-products to disruptive wireless connectivity eco-systems, we understand the complexities involved in the journey from ‘idea’ to ‘production’.
Based in Cambridge we embrace the heritage of the exceptional innovation and disruptive technology that has gone before us and strive to contribute to this tradition.
Our vision is to create analysis and measurement products from first principles that really solve our customers’ challenges, not to simply replicate what is already available.
• Bluetooth Protocol Analyzer Mini Moreph
• Bluetooth RF Protocol Tester Moreph30
• Bluetooth comprehensive tester MorephE
• Bluetooth CS RF Tester MorephCS
Current Products:Moreph30
