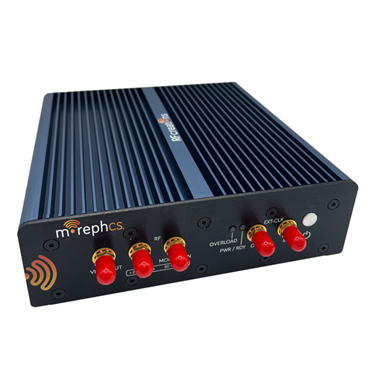

A Bluetooth® Channel Sounding Application for the moreph30 hardware platform. The moreph SDR at the core, when used with a programmable switch box enables all of the tests defined in the Bluetooth Channel Sounding RF-PHY Test Specification and the Channel Sounding Layer Test Specification to be performed. Channel Sounding captures, including raw IQ data, can be exported, and shared with other users for analysis, validate your implementation now!

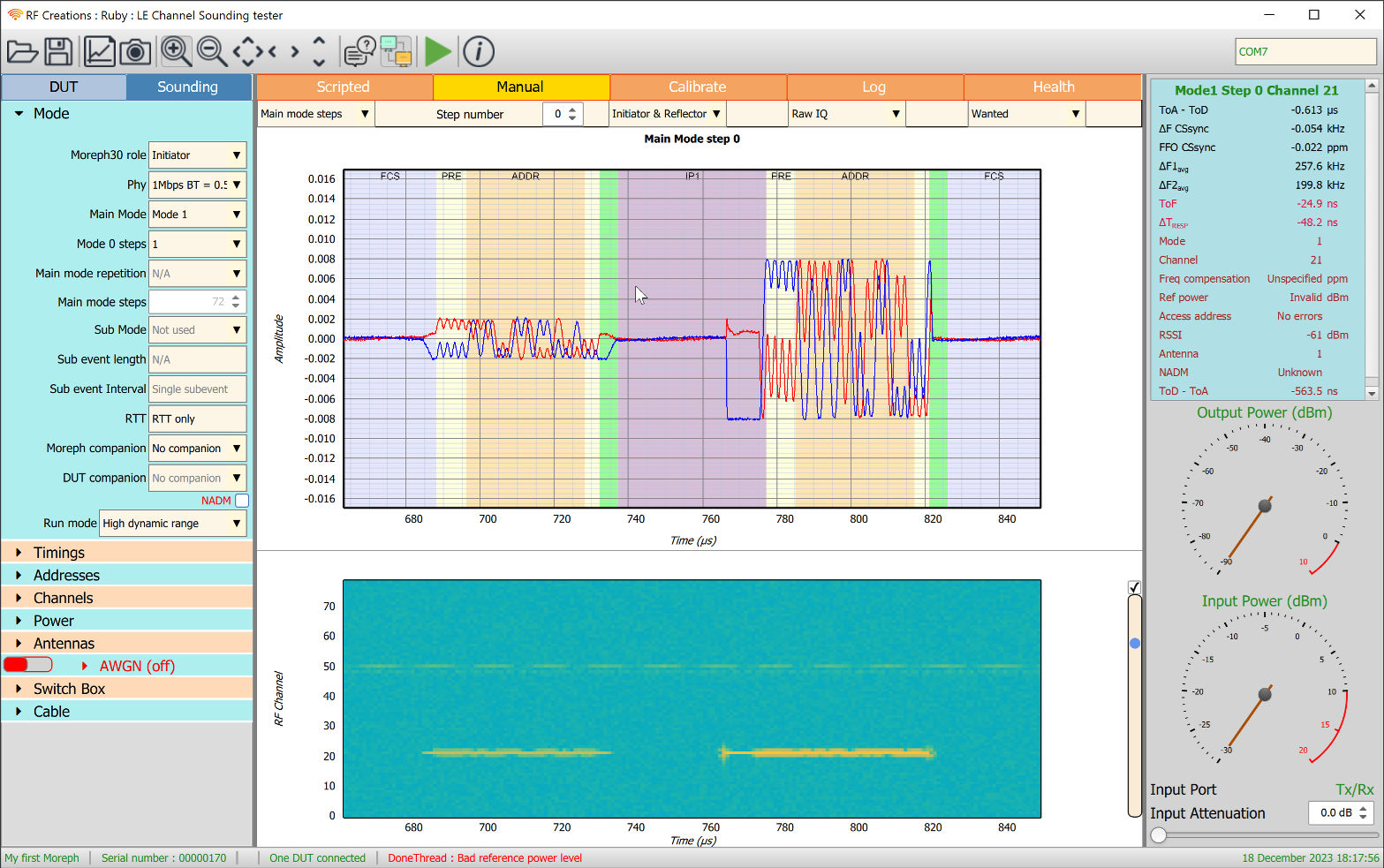

Simple control via comprehensive GUI or Python/C dll.
Log of all HCI traffic and key events.
Export of raw IQ data, spectrogram or entire capture to share.
Capture of GPIO time aligned with IQ data
A Bluetooth® Channel Sounding Application for the moreph30 hardware platform. The moreph SDR at the core, when used with a programmable switch box enables all of the tests defined in the Bluetooth Channel Sounding RF-PHY Test Specification and the Channel Sounding Layer Test Specification to be performed. Channel Sounding captures, including raw IQ data, can be exported, and shared with other users for analysis, validate your implementation now!
• Support for all RF-PHY test cases, including BT=2.0 modulation index.
• Support for all Channel Sounding Layer test cases. using the HCI test command and not via an over-the-air link.
• Simple control via comprehensive GUI or Python/C dll.
• Log of all HCI traffic and key events.
• Export of raw IQ data, spectrogram or entire capture to share.
• Capture of GPIO time aligned with IQ data
• 1MHz x 1µs spectrogram of the entire Channel Sounding procedure
• IQ and demodulated waveforms of wanted and companion signals
• Gated spectra of initiator or reflector
• ToF vs channel sounding step
• Linear phase regression
• Programmable clock timing error
• MITM attacks
• Additive white gaussian noise
• Maximum phase in exclusion zone
• Sinusoidal frequency fluctuations
• PRE-COMPLIANCE TESTER: Allows the developer to “pre-test” with confidence before committing to test house.
• SILICON EVALUATION: Capture corrupt waveforms for detailed analysis and perform RF-PHY testing on live links.
• SILICON CHARACTERISATION: Eliminates the need for additional test equipment, dramatically reducing test time and increasing throughput.
• RMA ANALYSIS: Simple to use GUI rapidly identifies faults.
• SCRIPTED: Scripted support for all RF-PHY test cases and Channel Sounding Layer test cases. Test parameters can be edited to form custom scripts.
• MANUAL: The unit can act either as an initiator or reflector performing an arbitrary Channel Sounding procedure as defined by the user. If a IUT is attached, then HCI event reports are captured and analysed. All key parameters such as ToF, linear phase regression and spectra are calculated. IQ and spectrum data are available for viewing or export.
• CALIBRATE: Permits the amplitude and phase response of the moreph30 to be calibrated.
