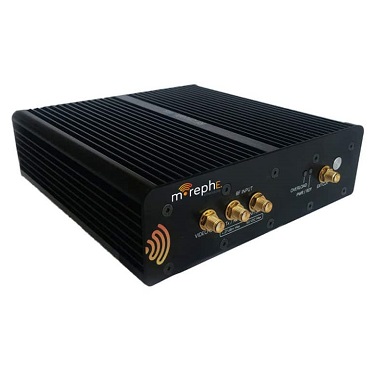

Record and playback over 3 hours of the entire 2.4GHz ISM band. Replay any section of the entire recording at your convenience. With dual control options, either via a GUI or a comprehensive Python library it will become your default reference RF test environment generator, Exactly what you need for RF site surveys, spectrum planning, interoperability, and receiver testing. Due to the moreph SDR at the core you can upgrade morephE to also be a RF- PHY Layer Tester, a blueSPY Protocol Analyser, or both at any time
Replay generated waveforms (matlab) vector signal generator
Record and transfer to host computer and analyser in any package.
AUTONOMOUS mode – Execute test scenarios independently of any host.
Record and playback over 3 hours of the entire 2.4GHz ISM band. Replay any section of the entire recording at your convenience. With dual control options, either via a GUI or a comprehensive Python library it will become your default reference RF test environment generator, Exactly what you need for RF site surveys, spectrum planning, interoperability, and receiver testing. Due to the moreph SDR at the core you can upgrade morephE to also be a RF- PHY Layer Tester, a blueSPY Protocol Analyser, or both at any time
• Record cluttered RF environments and reproduce in lab
• Real world environment testing i.e.: airports and railway stations
• Reproducible interference scenarios.
• Interoperability testing.
• 3 hours and 40 minutes of storage.
• Defined level of interfering signal.
• Playback multiple BT/iIFi signal simultaneously.
• Replay generated waveforms (matlab) vector signal generator
• Record and transfer to host computer and analyser in any package.
• AUTONOMOUS mode – Execute test scenarios independently of any host.
• LE, BR/EDR, 802.15.4 and Qualcomm QBHSL RF-PHY Test applications.
• Channel Sounding RF- PHY Test.
• WiFi Traffic Generator.

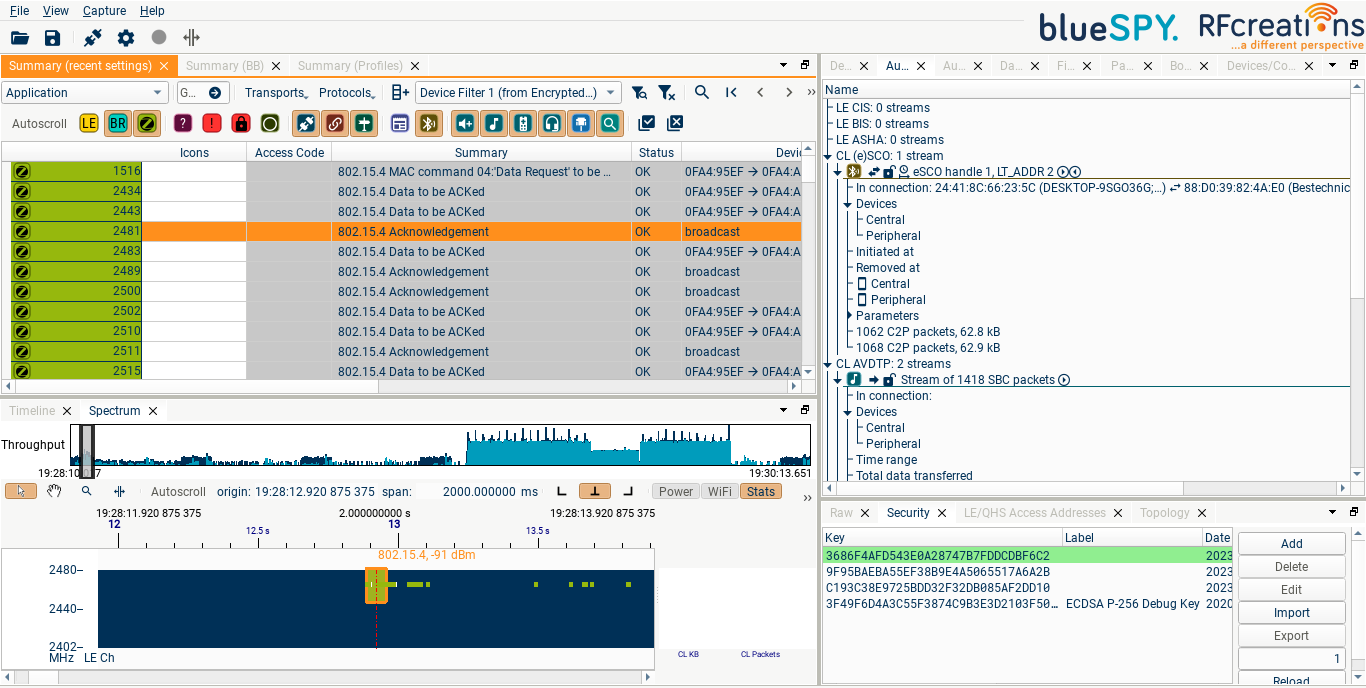

• blueSPY Protocol Analyser (Sniffer).
• Etherstore Application for record and playback
• The RF environment analyser application for the morephE can analyse captured files to:
--Generate a score indicating how challenging the environment is for Bluetooth devices to operate in.
--Generate a clear channel assessment for Bluetooth devices.
--Generate a clear channel assessment for WiFi devices.
• Bluetooth BR/EDR RF-PHY Tester (Development and Production Options).
• Bluetooth BLE RF-PHY Tester (Development and Production Options).
• Bluetooth Channel Sounding RF-PHY Tester.
• 802.15.4 RF Tester.
• Qualcomm QBHSL RF-PHY Tester.
• Bluetooth LE Advertise and scan simulator.
• WiFi traffic generator.
• blueSPY Protocol Analyser Options (Sniffer).
RFcreations is a core team of highly skilled and knowledgeable, professional engineers with decades of experience across the design and development of both RF and digital hardware, embedded, protocol stacks and UI software. Inclusive of production test for industry leading customers and partners. From semiconductors, through high-value consumer end-products to disruptive wireless connectivity eco-systems, we understand the complexities involved in the journey from ‘idea’ to ‘production’.
Based in Cambridge we embrace the heritage of the exceptional innovation and disruptive technology that has gone before us and strive to contribute to this tradition.
Our vision is to create analysis and measurement products from first principles that really solve our customers’ challenges, not to simply replicate what is already available.
• Bluetooth Protocol Analyzer Mini Moreph
• Bluetooth RF Protocol Tester Moreph30
• Bluetooth comprehensive tester MorephE
• Bluetooth CS RF Tester MorephCS
Current Products:MorephE
