With comprehensive support for USB Type-C™, 3.2 Gen 2x1 and Power Delivery 3.2 specifications, Teledyne LeCroy’s legendary Voyager analyzer platform provides the industry’s most accurate and reliable capture of SuperSpeed USB and PD protocol for fast debug, analysis and problem solving. Featuring the de facto standard CATC Trace™ display and loaded with innovative features that help uncover elusive protocol errors, the Voyager platform is the intelligent choice for any USB validation needs. The M310e is available with an integrated exerciser capable of emulating host and endpoint behaviors for USB 2.0, 3.2, in addition to PD Source, Sink and Dual-Role devices. Highly configurable, this single platform supports the broadest range of official USB-IF Compliance tests including USB PD 3.2, USB Type-C, USB 3.2 Hub and Link Layer. Now enhanced to support Power Delivery Extended Power Range (EPR) devices, the M310e is your ‘one-stop’ solution for USB certification.
Capture / Analyze USB 2.0/3.2 and PD traffic concurrently - Record 2.0 / 3.2 to see end-to-end host, hub and dock operation
Integrated 3.2 analyzer / exerciser (single box) - Multifunction system with 2.0 & 3.2 device or host traffic generation
USB Type-C & PD analyzer / exerciser - Generate and record all Type-C and Power Delivery protocol messages and state changes
CATC Trace Analysis Software - Expand / Collapse transfer layer for faster interpretation of USB traffic
16GB Recording Capacity - Capture long recording sessions for analysis and problem solving
Raw bit Recording / 10-bit error detection - View and correlate low-level 10-bit symbols to higher level packet structures
Detects over 50 USB Link & Protocol errors - Critical link and timing errors are automatically detected and flagged in the trace
800ps timing resolution - Extremely accurate timing resolution allows precise measurement of link layer handshaking
External Trigger In / Out - Use the Teledyne LeCroy Voyager to identify any packet and toggle a scope or logic analyzer (via SMA connectors)
Hardware Triggering - Trigger on 2.0, 3.0, and 3.2 protocol events to isolate important traffic, specific errors or data patterns
Comprehensive Device Decoding - SCSI Mass Storage, Hub, PTP/Still Image, Printer, PictBridge, Media Transfer Protocol (MTP), and all popular USB device classes
Gbe or USB 3.0 Upload - Sustained transfer rates of 600Mbps over Gbe provide instant access to captured data
Link Training State Views - LTSSM flow diagram and chronological views linked to trace display
Compliance Test option - Voyager is a certified Link Verification System (LVS) for performing Link, Hub, PD and USB Type-C compliance testing
With comprehensive support for USB Type-C™, 3.2 Gen 2x1 and Power Delivery 3.2 specifications, Teledyne LeCroy’s legendary Voyager analyzer platform provides the industry’s most accurate and reliable capture of SuperSpeed USB and PD protocol for fast debug, analysis and problem solving. Featuring the de facto standard CATC Trace™ display and loaded with innovative features that help uncover elusive protocol errors, the Voyager platform is the intelligent choice for any USB validation needs. The M310e is available with an integrated exerciser capable of emulating host and endpoint behaviors for USB 2.0, 3.2, in addition to PD Source, Sink and Dual-Role devices. Highly configurable, this single platform supports the broadest range of official USB-IF Compliance tests including USB PD 3.2, USB Type-C, USB 3.2 Hub and Link Layer. Now enhanced to support Power Delivery Extended Power Range (EPR) devices, the M310e is your ‘one-stop’ solution for USB certification.
• Capture / Analyze USB 2.0/3.2 and PD traffic concurrently - Record 2.0 / 3.2 to see end-to-end host, hub and dock operation
• Integrated 3.2 analyzer / exerciser (single box) - Multifunction system with 2.0 & 3.2 device or host traffic generation
• USB Type-C & PD analyzer / exerciser - Generate and record all Type-C and Power Delivery protocol messages and state changes
• CATC Trace Analysis Software - Expand / Collapse transfer layer for faster interpretation of USB traffic
• 16GB Recording Capacity - Capture long recording sessions for analysis and problem solving
• Raw bit Recording / 10-bit error detection - View and correlate low-level 10-bit symbols to higher level packet structures
• Detects over 50 USB Link & Protocol errors - Critical link and timing errors are automatically detected and flagged in the trace
• 800ps timing resolution - Extremely accurate timing resolution allows precise measurement of link layer handshaking
• External Trigger In / Out - Use the Teledyne LeCroy Voyager to identify any packet and toggle a scope or logic analyzer (via SMA connectors)
• Hardware Triggering - Trigger on 2.0, 3.0, and 3.2 protocol events to isolate important traffic, specific errors or data patterns
• Comprehensive Device Decoding - SCSI Mass Storage, Hub, PTP/Still Image, Printer, PictBridge, Media Transfer Protocol (MTP), and all popular USB device classes
• Gbe or USB 3.0 Upload - Sustained transfer rates of 600Mbps over Gbe provide instant access to captured data
• Link Training State Views - LTSSM flow diagram and chronological views linked to trace display
• Compliance Test option - Voyager is a certified Link Verification System (LVS) for performing Link, Hub, PD and USB Type-C compliance testing

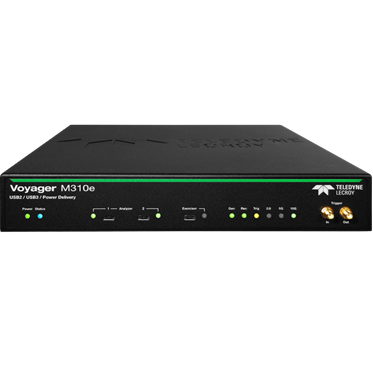

The Voyager M310e features the industry’s highest fidelity probe design and provides unmatched reliability when testing devices at USB 2.0 or the latest generation USB 3.2 Gen-2x1 (10Gb/s) speeds. Designed to non intrusively record both 5 and 10 Gbps SuperSpeed links, the analog front end in the M310e is fully compatible with systems that use Alternate Modes including two-lane and four lane DisplayPort.
Hot plug any combination of USB host and device and the Voyager system will transparently follow speed negotiation and lock to the established rate. While in line, it will detect and seamlessly recover from electrical idle and low power modes while accurately showing all U1/U2/ U3 state transitions.

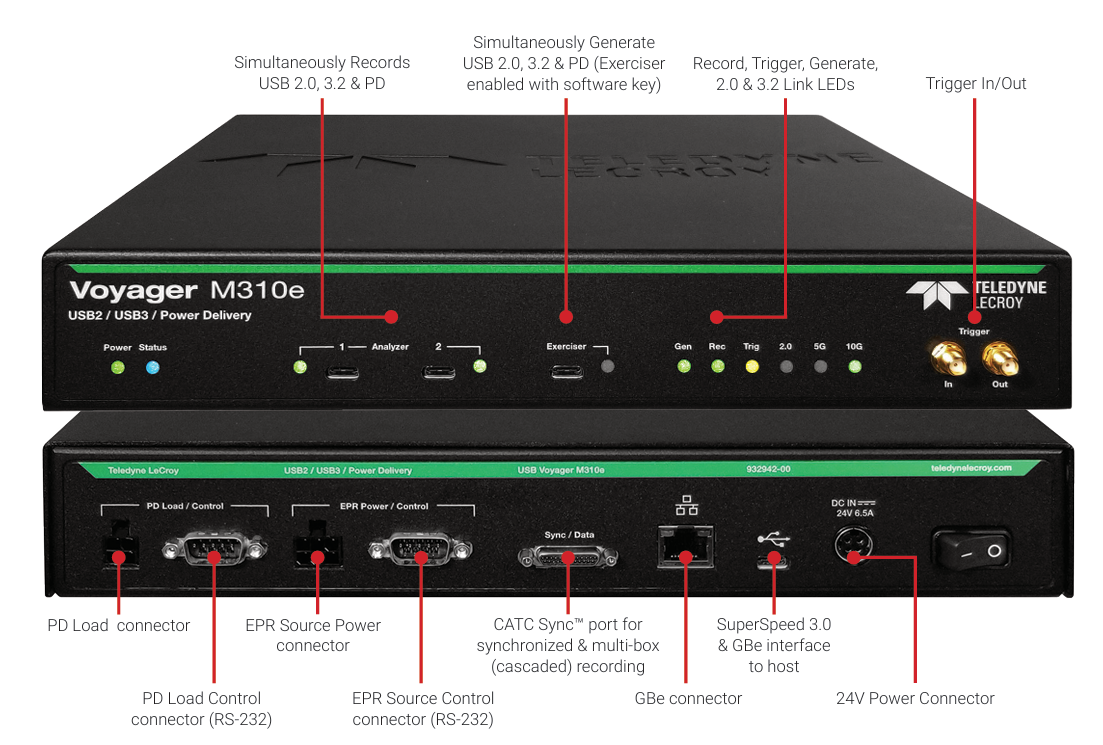

The front-end of the Voyager analyzer features standard USB Type-C connectors that support USB 2.0 and 3.0/3.2 signals to provide loss-less capture of traffic from all active links simultaneously. Concurrent recording of legacy USB, SuperSpeed+ and PD messages, allows end-to-end viewing of USB 3.2 Type-C bridge and dock configuration requests (legacy USB devices are fully supported using the included adapter cables). The Voyager M310e platform includes 16GB of recording memory plus USB 3.2 (Gen 1) and Gbe links for uploading recorded traffic to the host PC.
The heart of the Voyager analyzer is Teledyne LeCroy’s revolutionary BusEngine technology. This state-of-the-art protocol processing core incorporates a real-time recording engine and configurable tools to selectively monitor and record SuperSpeed USB traffic. Field upgradeable firmware allows the BusEngine to evolve and support new features or future changes to the USB specification.
The Voyager utilizes the legendary CATC Trace - the industry’s de facto standard since the inception of USB 1.0 technology. The trace viewer software uses colors and patterns to train the eye to understand information faster. When recording mixed traffic upstream from a SuperSpeed hub, Legacy 2.0 and 3.2 packets are labeled and interleaved in a single display. Each event is shown on a separate row with every field labeled and color-coded. Traffic from the logical 2.0 & 3.2 channels can be individually filtered, searched or exported from the trace. The USB Transfer level can be expanded and collapsed to show the packet layer including all link commands and flow control primitives.

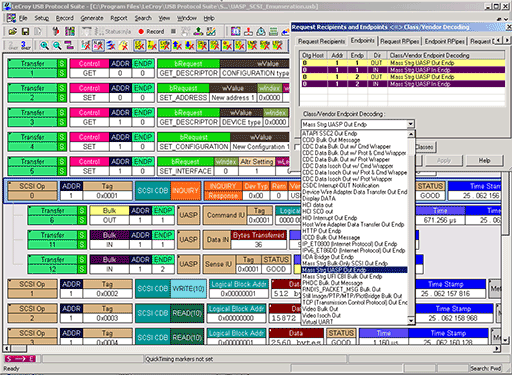

The Voyager software performs full decoding of USB device class traffic with both automatic and manual assignment of decodes to individual endpoints. From MTP, to CCD, to Video class, the Voyager provides the most comprehensive decoding available. It offers full support for the newest device types including Audio 3.0, Type-C Bridge, Content Security and USB Attached SCSI.

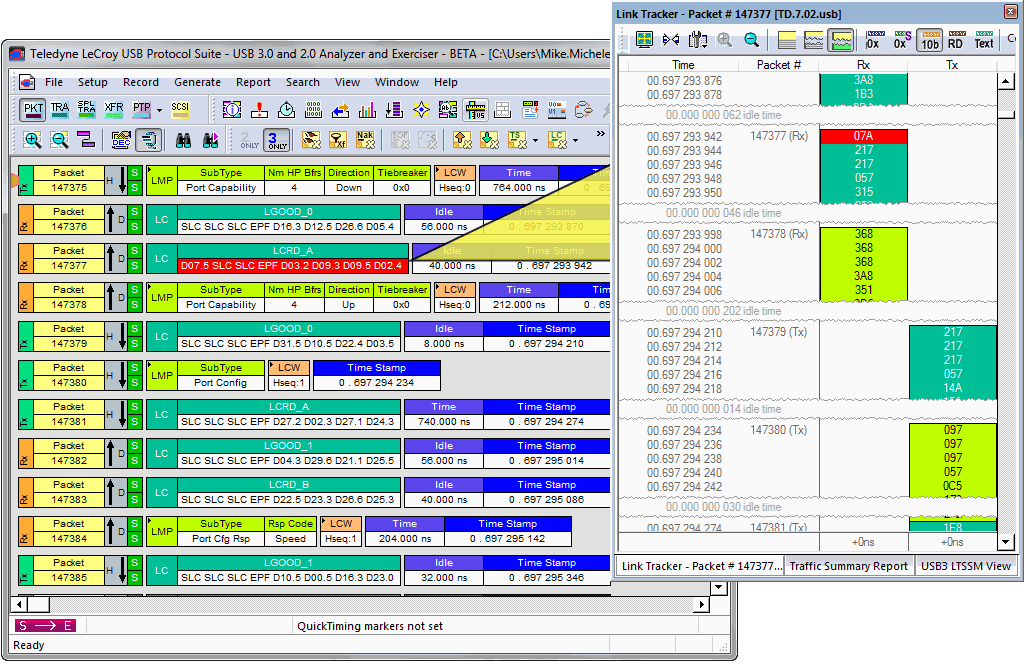

The Voyager is the only analyzer on the market that captures every transition at the 5 and 10 Gb/s link rates including idles, inter-packet symbols, corrupt 10-bit codes and 128-bit data blocks. The Link Tracker provides a chronological upstream / downstream display of all ordered sets with timing resolution of 800ps. Designed to assist with low-level debugging, all symbols including training sequences can be displayed in raw 10-bit, 8-bit, scrambled, and unscrambled Hex format. Symbol-to-symbol timing measurements are possible with a single click.

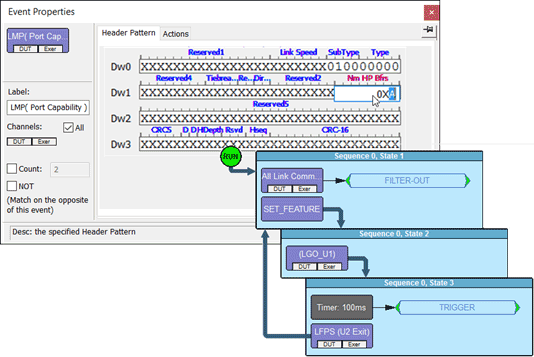

The Voyager provides hardware triggering to pinpoint protocol events of interest. Trigger events can be specified at the lowest levels including bus states and ordered sets (Link up, SKP, etc...) or header fields including address or packet types (ACK, Data, etc….). analyzer can filter unwanted traffic from the buffer in real-time by discarding redundant patterns such as SKPs, idles, and training sequences Voyager's graphical drag-and-drop interface makes setup easy.
The Teledyne LeCroy Voyager can detect and flag real protocol errors including more than 50 different USB issues and 15 unique PD error conditions. At the lower layers, training sequences, header fields, link layer handshakes and timing parameters are automatically verified. At the SCSI and USB transaction layers, individual exchanges are checked for completeness. The Spec-View displays header fields in hex or binary and also marks errors in red.
Fully automated, the compliance application provides point-and-pick selection of individual test cases. All tests utilize emulation scripts to mimic USB and Type-C link behaviors. The system initiates and responds to USB and PD commands like a real device while analyzing the response from the DUT. It communicates directly over Type-C cabling, records and analyzes every protocol exchange, and generates a pass/fail report.
Teledyne LeCroy’s Power Delivery (PD) and Type-C test beds have been continuously improved since 2016 and allow developers to verify functionality, error recovery, and compliance for PD and Type-C devices. The Voyager platform offers comprehensive support for the Power Delivery Compliance Test Specification revision 1.3 and is an officially recognized “gold suite” test tool by the USB-IF. The new “merged” PD test spec provides 100% coverage of PD 2.0 & 3.2 functionality including EPR. Passing the Teledyne LeCroy test suite is required for PD and Type-C devices seeking USB-IF logo certification
Built on the same open architecture, all the Compliance Suite options include full source code for each test case. This represents a comprehensive library of test scripts that can be easily re-purposed for custom test development. Both the exerciser and verification scripts can be modified without recompiling. As the test specifications are revised and compliance tests are updated, customers will receive all maintenance releases at no additional cost.
The Voyager software provides many mechanisms to measure and report on PD and USB 2.0/3.2 protocol. With the Traffic Summary display, users can evaluate statistical reports at a glance or navigate to individual events. Users may select transaction packets to view ACK/NAK or Device Notification events, then jump to each occurrence with a single keystroke. Higher-level events are also tracked and reported at the logical USB Transfer level. Reports are available showing link throughput, latency and efficiency metrics. Error events are also reported showing 50 different protocol violations - from invalid CRCs to framing errors to incomplete PD contracts. The LTSSM View provides an interactive USB 3.0/3.2 state machine diagram. Bus Utilization graphs show data and packet length, bus usage by device in a histogram format. The Bandwidth calculator automatically calculates the time delta between two points in the trace. Fast Search and Find options allow users to navigate to specific packets, errors and any data type within a trace file.
A comprehensive exerciser capability with support for both USB PD, USB 2.0, 3.0 and 3.2 traffic generation is built-in to the Voyager platform. The exerciser option allows users to transmit custom packets over standard USB cables with low-level control of headers, payloads, timing, and link states. Voyager ReadyLink™ performs link synchronization, flow control and header acknowledgements automatically in hardware. The Transaction Engine manages NRDY retry conditions allowing the Voyager to operate at full line rate and correctly respond to the DUT as defined by the specification. Overrides allow normal behaviors to be altered such as inserting errors, shortening LFPS intervals, link training sequences or handshake timing.

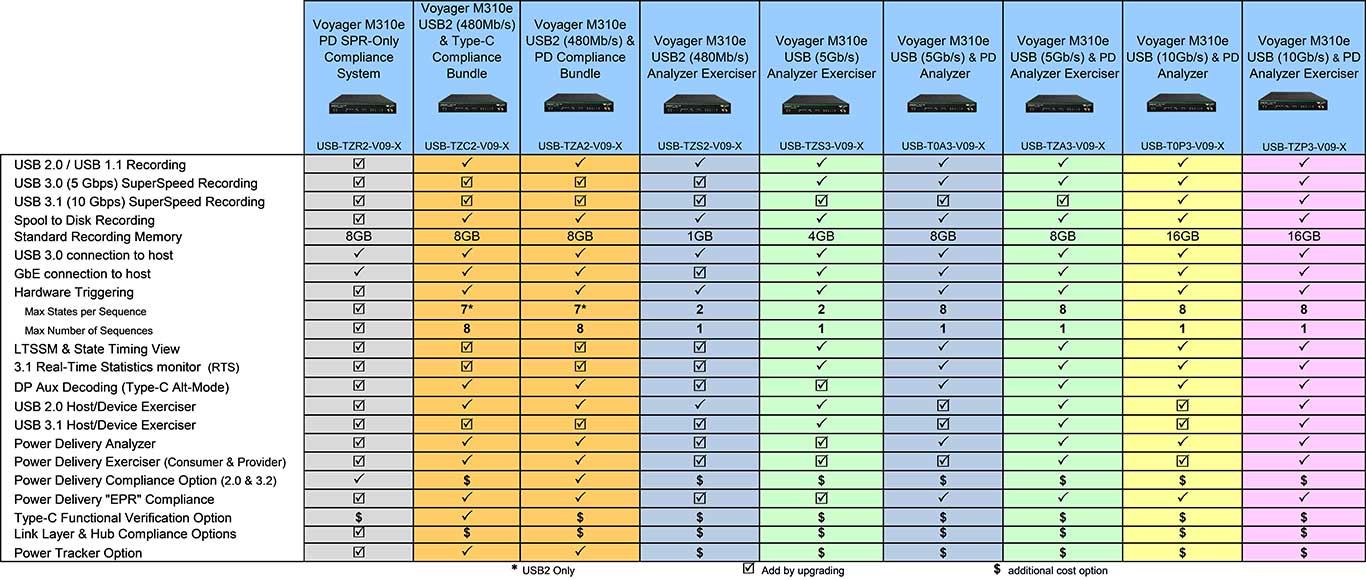

Protocols Supported USB 1.0, 1.1, 2.0 & 3.20; Power Delivery 3.2
Host Hardware Requirements Microsoft® Windows 11, Windows 10, Windows Server 2016, and Windows Server 2019, Intel Pentium 4 or AMD
Duron with USB 2.0 interface, 512MB RAM (1GB RAM recommended)
Data Rate Supported 1.2Mb/s – 25.6Gb/s
Data Bus Interface Half duplex differential (USB 2.0)
Dual simplex differential (USB 3.2)
Front Panel Connectors Analyzer / Exerciser – one (1) USB 2.0 & 3.2 recording channel with USB 3.2 Type-C connectors
Front Panel Indicators Platform LEDs: Power, Status, Trigger
Analyzer LEDs: Rec 2.0, 5Gb/s, 10Gb/s
Exerciser LEDs: Gen, Rec 2.0, 5Gb/s, 10Gb/s
Rear Panel Connectors Sync/Data, 1000BASE-T Ethernet, USB 3.0 (to host machine), 24V 6.67 ADC Power In, Power Switch
Dimensions (W x H x D) 304.48 x 44.45 x 345.6 mm (12“ x 1.75” x 13.61”)
Weight 3.1 Kg (6.8 lbs)
Environmental Operating Temperature: 0°C to 55°C (32°F to 131°F)
Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F)
Humidity: Operating 10% to 90% RH (non-condensing)
Power Requirements External 24V Power
Sourcing Power Delivery EPR voltages (above 20V) requires programmable Power Source
External Trigger IN/OUT SMA connectors
Warranty 12 Month Hardware Warranty
