Teledyne LeCroy’s legendary Voyager analyzer platform provides the industry’s most accurate and reliable capture of USB 3.2, USB4 and Thunderbolt 3 & 4 protocol for fast debug, analysis and problem solving. Leveraging Teledyne LeCroy's cutting-edge T.A.P.4 probe technology and industry-leading analysis software, the Voyager M4x is the ultimate, all-in-one test solution for USB4.
Capture / Analyze USB 3.2 / USB4 / Thunderbolt™ 3 including PD & SBU traffic - See end-to-end host, hub, and device operation
Integrated analyzer / exerciser - Multifunction system with options allowing USB 3.2 / USB4 traffic generation
USB Type-C & PD analyzer - Capture Type-C and Power Delivery protocol messages and state changes
CATC Trace Analysis Software - Expand / Collapse transport layer for faster interpretation of USB traffic
T.A.P.4™ probing - Proven analog front-end architecture to provide the truest picture of power-on link training
Up to 32GB Recording Memory - Capture long recording sessions for analysis and problem solving

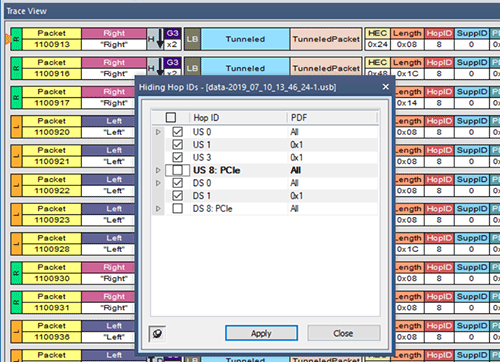

Hide / Show Traffic by HopID - HopID Filtering makes it easy to focus the analysis on specific paths/functions
Detects numerous USB4 Link & Protocol errors - Critical link and timing errors are detected and labeled
External Trigger In / Out - Use the Voyager to identify any packet and toggle a scope or logic analyzer (via SMA connectors)
Cascade Multiple Analyzers - Synchronize recordings across multiple analyzers including legacy USB 3.x Voyager systems
Gbe or USB 3.0 Upload - Sustained transfer rates of 600Mbps over Gbe provide instant access to captured data
Teledyne LeCroy’s legendary Voyager analyzer platform provides the industry’s most accurate and reliable capture of USB 3.2, USB4 and Thunderbolt 3 & 4 protocol for fast debug, analysis and problem solving. Leveraging Teledyne LeCroy's cutting-edge T.A.P.4 probe technology and industry-leading analysis software, the Voyager M4x is the ultimate, all-in-one test solution for USB4.
• Capture / Analyze USB 3.2 / USB4 / Thunderbolt™ 3 including PD & SBU traffic - See end-to-end host, hub, and device operation
• Integrated analyzer / exerciser - Multifunction system with options allowing USB 3.2 / USB4 traffic generation
• USB Type-C & PD analyzer - Capture Type-C and Power Delivery protocol messages and state changes
• CATC Trace Analysis Software - Expand / Collapse transport layer for faster interpretation of USB traffic
• T.A.P.4™ probing - Proven analog front-end architecture to provide the truest picture of power-on link training
• Up to 32GB Recording Memory - Capture long recording sessions for analysis and problem solving
• Hide / Show Traffic by HopID - HopID Filtering makes it easy to focus the analysis on specific paths/functions
• Detects numerous USB4 Link & Protocol errors - Critical link and timing errors are detected and labeled
• External Trigger In / Out - Use the Voyager to identify any packet and toggle a scope or logic analyzer (via SMA connectors)
• Cascade Multiple Analyzers - Synchronize recordings across multiple analyzers including legacy USB 3.x Voyager systems
• Gbe or USB 3.0 Upload - Sustained transfer rates of 600Mbps over Gbe provide instant access to captured data
The Voyager M4x features the industry’s highest fidelity probe design and provides unmatched reliability when testing devices at the full USB4 Gen3x2 (40Gb/s aggregate) speed. Designed to sit inline between host and hub, the M4x will non-intrusively record all USB Type-C® signaling including 3.2 / USB4 / TBT3 / TBT4 data, side-band and CC (PD) messages. Hot plug any combination of USB4 host and hub and the Voyager system will record the sideband discovery plus the speed negotiation sequence and lock at the specified rate. Full support for capturing USB 3.2 bonded traffic (20 Gb/s aggregate) over Type-C also fills a critical need for developers targeting Superspeed USB 3.2 applications.
The Voyager provides hardware triggering to pinpoint protocol events of interest. Trigger events can be specified at the lowest levels including bus states, ordered sets, VBUS & CC voltages, PD messages, protocol errors or header fields including address or packet types. For USB4 Tunneled traffic, trigger on any data pattern within the first 5 DWORDS of a frame.
The front-end of the Voyager analyzer features USB4 rated connectors that support the full 40Gb/s data rate for loss-less capture of traffic from all active links simultaneously. The Voyager M4x platform is available with up to 32GB of recording memory plus USB 3.0 and Gigabit Ethernet links for uploading recorded traffic to the host PC. Field upgradeable firmware ensures future support for new features or changes to the USB specification. Economical USB 3.2 configurations are available today that support bonded USB traffic (20 Gb/s aggregate) over Type-C while allowing future upgrade to USB4 analysis.
The Voyager utilizes the legendary CATC Trace - the industry's de facto standard display and shows all packets labeled and interleaved in a single view. Traffic from the logical USB4 and side-band channels can be individually filtered, searched or exported from the trace. The Transfer level can be expanded and collapsed to show the logical layer including all ordered sets and control packets. While in line, it will record and display all register reads and writes to provide an unambiguous picture of the router and path configuration space. The HopID window allows precise hiding of traffic based on HopID and Protocol Defined Function (PDF). Isolating traffic on specific paths provides a coherent picture of the full configuration sequence for each PCIe, USB or DP adapter within the network.

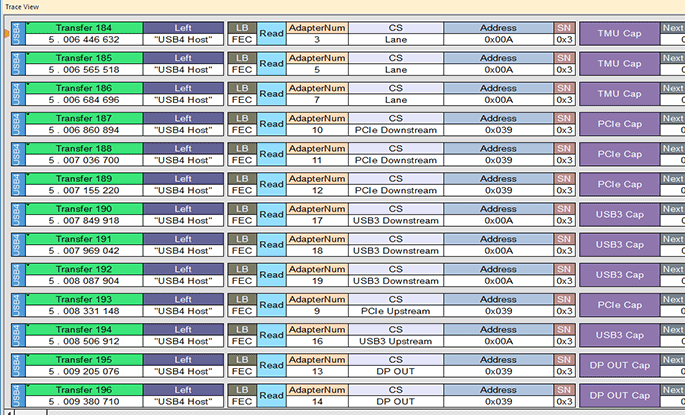

All the logical link sub-states are recorded and displayed including SLOS1/SLOS2, TS1, TS2, and deskew ordered sets. Sideband registers are parsed to automatically assign protocols to HopIDs. Register Read Request / Response transactions are fully decoded. The configuration space viewer populates router, adapter and path entries dynamically to provide an easy to read (32-bit table) view of the adapter configuration process. For DP alt-mode testing, DP Aux commands are captured and decoded. More extensive decoding is available by exporting the tunneled traffic to Teledyne LeCroy PCI Express or DisplayPort analyzer applications.
The Teledyne LeCroy Voyager can detect and flag real USB4, USB 3.2 and PD protocol errors. At the lower layers, training sequences, SCR content and CRC values are automatically checked for errors. Configuration Packet Timing is verified along with many USB 3.2 / USB4 logical layer timing requirements.

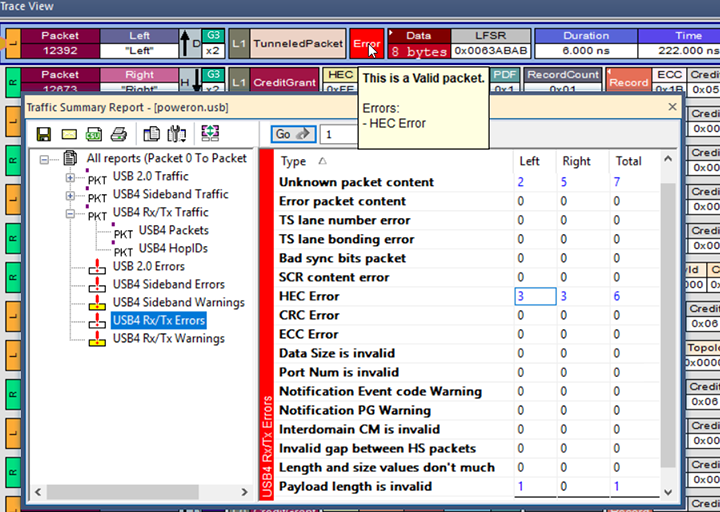

The Voyager software provides many mechanisms to measure and report on USB and PD protocol. With the Traffic Summary display, users can evaluate statistical reports at a glance or navigate to individual events. Users may select packets or link commands then jump to each occurrence with a single keystroke. Higher-level events are also tracked and reported at the logical USB4 transport layer.

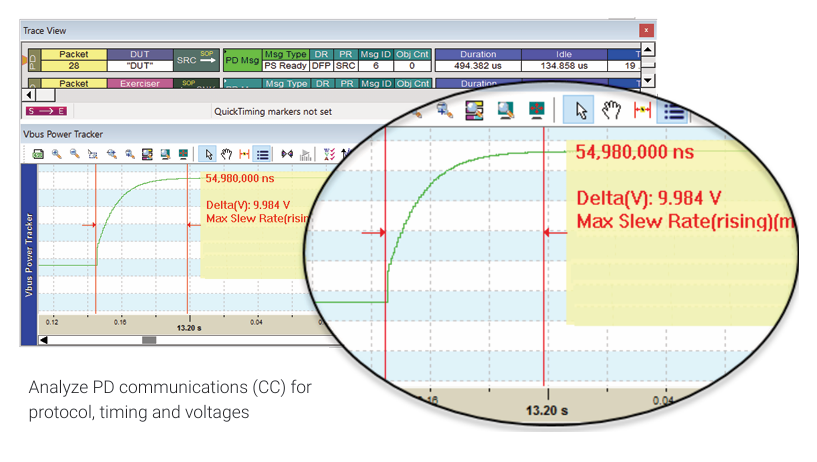

The Voyager M4x Power Tracker option monitors and displays vBus power and current graphically in a time-line format. The voltages are synchronized to trace events allowing users to verify power state transitions at the protocol and electrical layers. Separate power graphs are provided for CC and VCONN making it easy to debug logical Type-C state transitions.
For Tunneled PCI Express, Data Link Layer Packets (DLLP) and Transaction layer events are decoded allowing users to see critical fields like address and Requester ID. When capturing tunneled DisplayPort, AUX messages are separated from the video main data stream for easier interpretation. All fields for tunneled USB packets are fully decoded. Higher layer USB events can be exported to a standard USB trace with full decoding including all device class traffic.
For comprehensive tunneled decoding, the Voyager M4x allows instant export of tunneled traffic to the full featured Video Protocol Suite and PCIe Protocol Suite applications. These are the same full-featured, market-leading applications developed by Teledyne LeCroy’s video and PCIe groups and include a vast array of analysis and debug tools (available as a free software download).
The exerciser option adds a flexible traffic generation capability for USB4, Thunderbolt 3, and USB 3.2 to the Voyager M4x platform. It allows users to transmit custom packets over standard USB Type-C cables with low-level control of headers, payloads, timing, and link states. Seamlessly integrated with the protocol analyzer, the M4x system can emulate host or device router operations while recording the real response from the DUT. Leveraging the same proven architecture developed for SuperSpeed USB, the M4x exerciser adds Gen3x2 and Gen2x2 support allowing users to perform initial power-on, functional and compliance testing for next generation USB4 & USB 3.2 chipsets.
The Voyager M4x offers broad support for USB Compliance testing including USB Type-C, PD (SPR only), USB4, USB 3.2 Link Layer, and DP Alt-Mode. Utilizing Teledyne LeCroy’s Voyager exerciser capability, the Compliance Suite is an automated application that utilizes emulation scripts to mimic USB, PD, and Type-C link behaviors. The exerciser is used to initiate and respond to USB and PD commands like a real device while analyzing the response from the DUT. It communicates directly over Type-C cabling, records and analyzes every protocol exchange to determine correct behavior. For Type-C and PD Compliance, the exerciser leverages a comprehensive library of high-level commands to emulate Type-C source, sink and DRP behaviors.
The Voyager M4x offers exclusive support for USB 3.2 10Gps and 20Gbps link layer testing. It’s also the foundation for performing USB4 protocol and logical layer conformance. The only solution capable of testing USB4 and USB 3.2 link layer, each compliance option is sold separately allowing users to scale up testing as needed.
• USB Power Delivery 2.0 and 3.2 Compliance
• USB Type-C Functional Verification
• USB 3.2 Gen-1 and Gen-2 Link Layer Compliance (5Gbps and 10Gbps)
• USB 3.2 Gen-1x2 (IOGbps) & Gen-2x2 (20Gbps) Link Layer Compliance
•USB4 Compliance License
Protocols Supported USB4, Thunderbolt™ 3, Thunderbolt 4, USB 3.2, Side-Band signals & CC (PD) messages
Host Hardware Requirements Intel Pentium 4 or AMD Duron with USB 2.0 interface, 1GB RAM (8GB RAM recommended)
System Requirements 64-bit versions of Microsoft Windows® 11, Windows 10, Windows Server 2016, and Windows Server 2019;|
2 GB of RAM;
Storage with at least 2 GB of free space for the installation of the software and additional space for recorded data;
display with resolution of at least 1024x768 with at least 16-bit color depth;
USB 2.0 port and/or 100/1000baseT Ethernet.
For optimal performance, please refer to our recommended configuration in the product documentation.
Memory Size 16GB/32GB
Signal Rate Supported 1.2Mb/s – 20Gb/s
Data Bus Interface Full duplex differential (USB 3.2 / USB4)
Side-band channel
CC (PD) messages

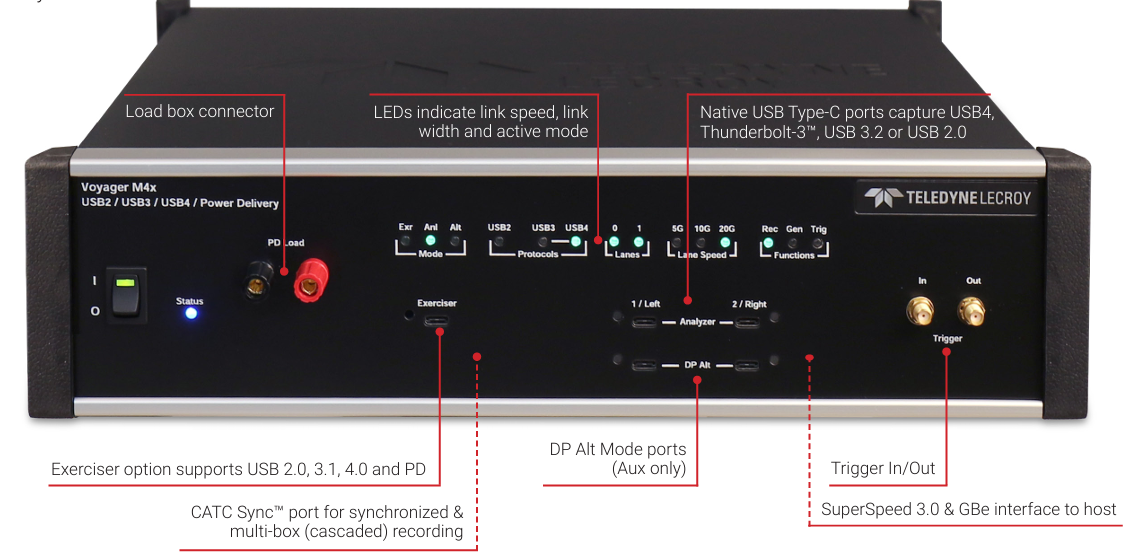

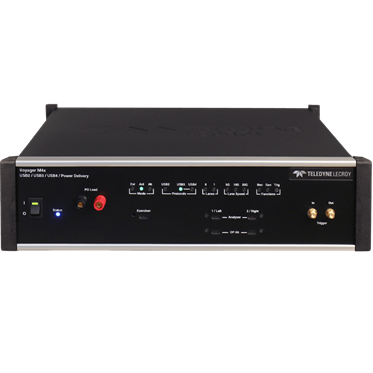

Front Panel Connectors Analyzer – one (1) USB 3.2 / USB4 recording channel with left/right Type-C Connectors
Exerciser - one (1) USB 3.2 / USB4 generation channel with Type-C Connectors
DP Alt-Mode – one (1) DisplayPort over Type-C Auxiliary (Aux) channel & CC messages only
Front Panel Indicators Platform LEDs: Power, Status
Function LEDs : Rec, Gen, Trig
Analyzer LEDs: 2.0, 3.0, 4.0
Active Mode LEDs : Exerciser, Analyzer, Alt-mode
Lane LEDs : 1 or 2
Lane Speed LEDs : 5G, 10G, 20G
Dimensions (W x H x D) 418 x 98 x 375 mm (16.5” x 3.8” x 14.75”)
Weight 5.1 Kg (12 lbs.)
Environmental Operating Temperature: 0°C to 55°C (32°F to 131°F)
Non-Operating Temperature: -20°C to 80°C (-4°F to 176°F)
Humidity: Operating 10% to 90% RH (non-condensing)
External Trigger IN/OUT SMA connectors
Warranty 12 Month Hardware Warranty
